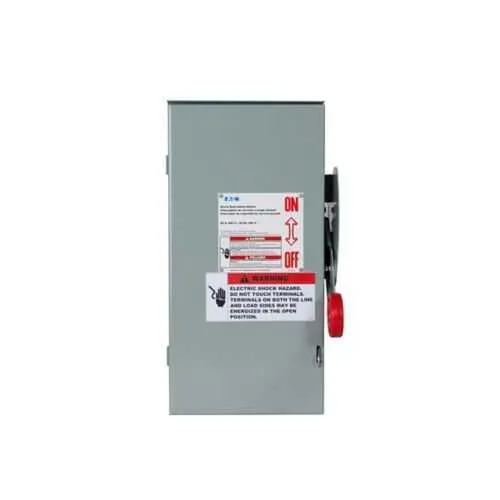

Eaton DH162URKN DC Disconnect - 60A, UL Listed
Part Number: DH162URKN
Quick Summary
Eaton DC disconnect DH162URKN provides safe, single-throw isolation for 600 VDC circuits in industrial automation. That isolation helps minimize arc flash risk, reduces downtime during maintenance, and makes compliance straightforward when servicing control circuits. UL Listed certification validates electrical safety, while the NEMA 3R enclosure and painted galvanized steel construction withstand outdoor and damp locations. With neutral assemblies factory installed, wiring is quicker and less error-prone, easing panel integration and field wiring challenges. The 60 A rating and single-pole design fit common protection schemes, delivering reliable performance and a lower total cost of ownership.
Product Information
Extended Description
DH162URKN Eaton: Eaton DC disconnect, Single-throw, 60 A, NEMA 3R, Painted galvanized steel, Class R fuses, Non-Fusible, Single-pole, One-wire
Product Name
Eaton DC disconnect
Catalog Number
DH162URKN
UPC
786685375700
Product Length/Depth
10 in
Product Height
15.81 in
Product Width
8.87 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Special features
Neutral assemblies factory installed
Type
Single-throw
Amperage Rating
60 A
Number of circuits
1
Protection
Non-fusible
Number of poles
Single-pole
Voltage rating
600 VDC
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Protection
Non-fusible
DC disconnects for 600VDC solar photovoltaic installations (single circuit)
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DH162URKN
Feature: The unit uses a sturdy painted galvanized steel enclosure with a NEMA 3R rating. Business impact: It provides weather-resistant protection for outdoor and damp locations, reducing corrosion and unscheduled downtime. Application: DC power distribution in industrial facilities and outdoor solar installations. Feature: Single-throw, non-fusible design rated at 60 A and 1 circuit. Business impact: Simplifies isolation workflows, minimizes fuse management, and lowers spare parts costs. Application: Safe DC isolation in control panels and power distribution units. Feature: UL Listed certification. Business impact: Regulatory compliance and enhanced safety for installers and end users. Application: Any installation requiring recognized safety credentials. Feature: Factory installed neutral assemblies. Business impact: Speeds installation, reduces wiring errors, and improves system reliability. Application: Integration in control panels and power distribution assemblies. Feature: Compact dimensions and weight—10 in length, 15.81 in height, 8.87 in width, and 16 lb. Business impact: Easy fit in constrained spaces and lower shipping/handling costs. Application: Replacement of older disconnects and new builds in compact panel designs.
Get a Quick Quote for a Eaton DH162URKN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH162URKN?
Enquire Now
FAQs
The DH162URKN is a standalone DC disconnect featuring a NEMA 3R, painted galvanized steel enclosure, UL Listed safety certification, and a single-pole 60 A, non-fusible design. It weighs 16 lb and measures 10 in by 8.87 in by 15.81 in, with factory installed neutral assemblies to streamline wiring and reduce field wiring errors during panel integration.
Key ratings include 60 A amperage, 1 circuit, single-pole, non-fusible protection, and a 600 VDC voltage rating. It is UL Listed and housed in a NEMA 3R enclosure built from painted galvanized steel, making it suitable for indoor and outdoor damp locations while delivering reliable DC isolation in industrial applications.
Ideal for DC power distribution in industrial automation, control panels, and solar PV installations, especially where 600 VDC circuits require safe isolation. Its NEMA 3R, weather-resistant enclosure supports outdoor or damp environments, and its compact dimensions facilitate integration into existing enclosures and panels without substantial layout changes.
The DH162URKN carries UL Listed certification, confirming electrical safety compliance for industrial equipment. The enclosure is NEMA 3R rated and constructed from painted galvanized steel, suitable for outdoor and damp locations. These certifications help meet regulatory requirements and provide assurance to installers and end users.
Factory installed neutral assemblies reduce wiring errors and installation time, cutting labor costs and enabling faster project completion. The non-fusible, single-pole design minimizes spare parts needs, while the rugged enclosure and UL/NEMA-rated construction reduce maintenance calls and extend service life, delivering lower total cost of ownership over the equipment’s lifespan.
