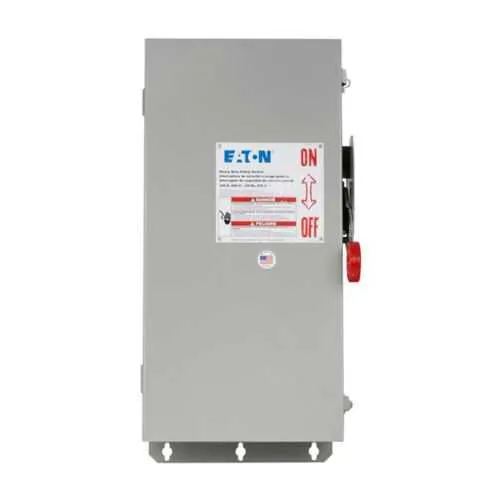

Eaton DH163UDKN DC Disconnect - UL Listed, 600VDC
Part Number: DH163UDKN
Quick Summary
Eaton DC disconnect DH163UDKN provides reliable single-pole switching for 600 VDC power systems in industrial controls. Downtime from improper wiring or missed isolation points is a persistent challenge for panel builders and maintenance teams. UL Listed safety certification and a rugged NEMA 12 enclosure protect against dust, moisture, and debris in demanding environments, while the painted galvanized steel housing resists corrosion. The design also supports straightforward installation and predictable performance in DC distribution schemes, including solar PV and battery-storage applications, helping engineers meet safety standards and reduce field labor costs. Its compact footprint and clear ratings support fast commissioning and ongoing reliability.
Product Information
Extended Description
DH163UDKN Eaton: Eaton DC disconnect, Single-throw, 100 A, NEMA 12, Painted galvanized steel, Class R fuses, Non-Fusible, Single-pole, One-wire, 20 at 250 Vdc
Product Name
Eaton DC disconnect
Catalog Number
DH163UDKN
UPC
786685375755
Product Length/Depth
10.22 in
Product Height
24.95 in
Product Width
11.79 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Special features
Neutral assemblies factory installed
Type
Single-throw
Amperage Rating
100A
Number of circuits
1
Protection
Non-fusible
Number of poles
Single-pole
Voltage rating
600 VDC
Enclosure
NEMA 12
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Protection
Non-fusible
DC disconnects for 600VDC solar photovoltaic installations (single circuit)
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DH163UDKN
Feature: 100 A, single-pole, single-throw operation delivers clean, mechanical isolation with minimal components. Business Impact: Reduces failure points, accelerates maintenance, and lowers lifecycle costs by simplifying switchgear inventories. Application: Suitable for DC distribution panels, battery storage, and PV inverters where fast, reliable isolation is required.
Feature: Non-fusible configuration with factory-installed neutral assemblies. Business Impact: Enhances safety and reduces in-field wiring errors, enabling consistent control references across circuits. Application: Ideal for DC control circuits requiring a solid isolation point with neutral continuity.
Feature: NEMA 12 enclosure in painted galvanized steel. Business Impact: Provides robust protection against dust, grime, and incidental moisture, reducing enclosure-related outages. Application: Appropriate for industrial plants, manufacturing floors, and outdoor-adjacent panels.
Feature: 600 VDC rating and UL Listed certification. Business Impact: Supports regulatory compliance and safe operation in high-voltage DC systems, lowering risk during maintenance. Application: Solar PV installations, battery storage, and DC distribution networks.
Feature: 20 at 250 Vdc capability and compact dimensions (10.22 in x 24.95 in x 11.79 in) with 26 lb weight. Business Impact: Facilitates easy mounting, inventory planning, and faster installation with minimal space impact. Application: Retrofit or new-build control panels where space and weight are considerations.
Feature: Fuse configuration described as Non-fusible. Business Impact: Clarifies that protection is provided via external fusing per system design, reducing unintended fuse interactions. Application: Systems that require downstream or upstream fusing while preserving simple isolation at the disconnect.
Feature: Non-fusible configuration with factory-installed neutral assemblies. Business Impact: Enhances safety and reduces in-field wiring errors, enabling consistent control references across circuits. Application: Ideal for DC control circuits requiring a solid isolation point with neutral continuity.
Feature: NEMA 12 enclosure in painted galvanized steel. Business Impact: Provides robust protection against dust, grime, and incidental moisture, reducing enclosure-related outages. Application: Appropriate for industrial plants, manufacturing floors, and outdoor-adjacent panels.
Feature: 600 VDC rating and UL Listed certification. Business Impact: Supports regulatory compliance and safe operation in high-voltage DC systems, lowering risk during maintenance. Application: Solar PV installations, battery storage, and DC distribution networks.
Feature: 20 at 250 Vdc capability and compact dimensions (10.22 in x 24.95 in x 11.79 in) with 26 lb weight. Business Impact: Facilitates easy mounting, inventory planning, and faster installation with minimal space impact. Application: Retrofit or new-build control panels where space and weight are considerations.
Feature: Fuse configuration described as Non-fusible. Business Impact: Clarifies that protection is provided via external fusing per system design, reducing unintended fuse interactions. Application: Systems that require downstream or upstream fusing while preserving simple isolation at the disconnect.
