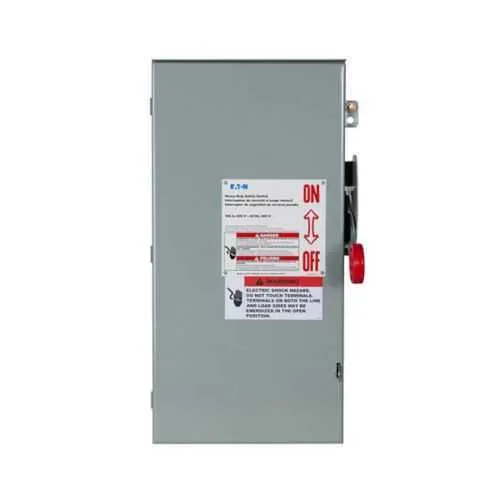

Eaton DH163URKN DC Disconnect - UL Listed
Part Number: DH163URKN
Quick Summary
Eaton DC disconnect isolates 600 VDC power safely for industrial controls and solar installations. Maintenance teams face safety risks and downtime when isolation devices are hard to install or fail in harsh outdoor environments. UL Listed certification and a NEMA 3R enclosure ensure reliable outdoor performance and regulatory compliance. The DH163URKN combines a single-pole, 100 A, 1-circuit design with a 600 VDC rating for fast, compliant isolation in solar DC systems and industrial protection devices. Factory-installed neutral assemblies support quicker wiring and consistent performance across panels and switchgear. Compact dimensions and a robust galvanized steel enclosure help reduce field installation time and equipment footprint while meeting safety standards.
Product Information
Extended Description
DH163URKN Eaton: Eaton DC disconnect, Single-throw, 100 A, NEMA 3R, Painted galvanized steel, Class R fuses, Non-Fusible, Single-pole, One-wire, 20 at 250 Vdc
Product Name
Eaton DC disconnect
Catalog Number
DH163URKN
UPC
786685375717
Product Length/Depth
10 in
Product Height
21.68 in
Product Width
11.84 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Special features
Neutral assemblies factory installed
Type
Single-throw
Amperage Rating
100A
Number of circuits
1
Protection
Non-fusible
Number of poles
Single-pole
Voltage rating
600 VDC
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse configuration
Non-fusible
Protection
Non-fusible
DC disconnects for 600VDC solar photovoltaic installations (single circuit)
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DH163URKN
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: Single-pole, 100 A DC disconnect. Business impact: Provides quick, safe isolation of DC circuits, lowering maintenance time and exposure to shock. Application: Ideal for solar DC installations and industrial controls requiring reliable DC isolation. Feature: NEMA 3R enclosure in painted galvanized steel. Business impact: Delivers weather resistance and corrosion protection for outdoor service. Application: Outdoor substations, rooftop systems, and field-installed DC distribution. Feature: Non-fusible, single-throw design with factory-installed neutral assemblies. Business impact: Flexibility in fuse strategy and faster wiring reduces field labor and errors. Application: Control circuits where external fusing is planned or required. Feature: Compact external dimensions—10 in deep, 21.68 in high, 11.84 in wide; weight 22 lb. Business impact: Easier handling and installation in tight equipment spaces. Application: Mounting in compact control rooms and outdoor enclosures. Feature: UL Listed certification. Business impact: Demonstrates compliance with electrical safety standards. Application: Essential for procurement and regulatory acceptance in industrial environments.
Get a Quick Quote for a Eaton DH163URKN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH163URKN?
Enquire Now
FAQs
The DH163URKN is well suited for solar PV DC installations and industrial control panels that require a reliable, single-pole DC disconnect. Its 100 A rating and 600 VDC capability support high-current, low-impedance isolation, while the NEMA 3R enclosure protects against weather exposure. This makes it a practical choice for outdoor substations, rooftop arrays, and remote equipment enclosures.
Key specs include 100 A amperage rating, 1 circuit, single-pole configuration, non-fusible protection, 600 VDC voltage rating, and a NEMA 3R enclosure. The unit uses painted galvanized steel for durability and weighs about 22 lb, with compact dimensions suitable for space-limited installations. It is UL Listed for safety compliance.
Yes. The NEMA 3R enclosure and UL Listed certification make it appropriate for outdoor solar DC isolation. Its 600 VDC rating supports PV system standards, and the single-pole, 100 A design provides straightforward, safe disconnection for routine maintenance and fault isolation in outdoor solar arrays.
This model carries UL Listed certification, indicating compliance with recognized safety standards. The enclosure is rated NEMA 3R for weather resistance, enhancing reliability in outdoor environments. Together, these features support procurement requirements and regulatory acceptance in industrial settings and solar installations.
Maintenance requirements are primarily around periodic inspection of enclosure integrity and electrical connections; the non-fusible design reduces spares and wiring complexity. ROI benefits come from reduced maintenance downtime, faster installation due to factory-installed neutral assemblies, and longer equipment life due to robust enclosure protection, especially in outdoor, high-dust, or corrosive environments.
