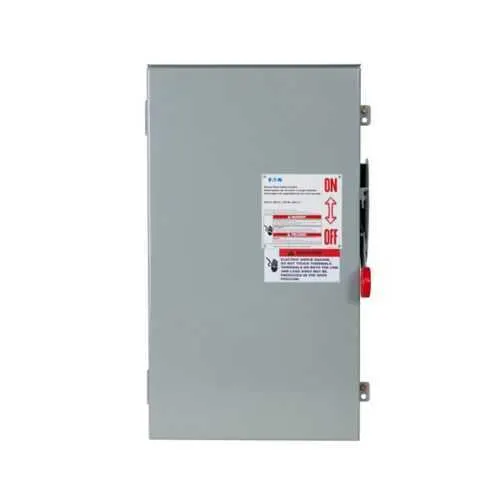

Eaton DH165NWK DC Disconnect - UL Listed 600 VDC
Part Number: DH165NWK
Quick Summary
The Eaton DH165NWK DC disconnect provides reliable fusible isolation for 600 VDC solar and industrial circuits. Maintenance teams often struggle with safe de-energization, regulatory compliance, and installation in tight or outdoor environments. This model is UL Listed and designed for NEMA 4X enclosures, with 304 stainless steel construction to withstand moisture, dust, and corrosive settings. By combining rugged protection with a straightforward wiring footprint, it delivers faster installation, reduces downtime, and supports compliant, long-term power distribution across solar, data centers, and industrial applications.
Product Information
Extended Description
DH165NWK Eaton: Eaton DC disconnect, 600 A, NEMA 12, Painted galvanized steel, Class R, Fusible with neutral, Single-pole, Two-wire, Solar disconnect switch, 600 V, (1)#2-(1)600 kcmil and (1)#1/0-(1)750 kcmil Al
Product Name
Eaton DC disconnect
Catalog Number
DH165NWK
UPC
786685384542
Product Length/Depth
12.75 in
Product Height
63 in
Product Width
23 in
Product Weight
160 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Type
DC disconnect/grounded system
Amperage Rating
400 A
Number of circuits
1
Protection
Fusible
Voltage rating
600 VDC
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Protection
Fusible
DC disconnects for 600VDC solar photovoltaic installations (single circuit)
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Double Up on Safety
Double Up on Safety
Eaton Specification Sheet - DH165NWK
High-current isolation with 400 A capability and a fusible single-pole design ensures dependable de-energization of the DC circuit. This translates to faster maintenance windows and safer startup sequences for solar arrays and industrial power systems. Suitable for single-circuit DC distribution, the DH165NWK supports a clean, one-point disconnect in compact installations. Rugged enclosure with a NEMA 4X rating and 304 stainless steel construction resists moisture, dust, and corrosion, delivering reliable service in outdoor or wash-down environments. This minimizes weather-related nuisance trips and reduces maintenance cycles for outdoor substations and remote solar connections. The 600 VDC rating, fusible with neutral, and Class R protection provide clear fault isolation and safe energy removal, supporting compliant operation in industrial power distribution and solar DC systems. Large conductor capacity supports up to #2-600 kcmil copper or #1/0-750 kcmil aluminum conductors, enabling flexible wiring in diverse installations. Easy wiring and compatibility with a 1-circuit, 2-wire configuration simplify procurement and on-site installation, reducing total cost of ownership and accelerating project timelines. Warranty coverage (one year from installation or 18 months from shipment) adds predictable maintenance budgeting and long-term reliability for mission-critical DC applications.
Get a Quick Quote for a Eaton DH165NWK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH165NWK?
Enquire Now
FAQs
The DH165NWK is a single-pole, fusible DC disconnect rated for 400 A and 600 VDC. It is designed for 2-wire configurations with a neutral fuse, suitable for solar photovoltaic installations and industrial DC power distribution where reliable isolation and safety are paramount. Its NEMA 4X enclosure and 304 stainless steel construction enable outdoor or wash-down environments, while UL Listed certification supports procurement compliance.
The device presents a depth of 12.75 inches, a height of 63 inches, and a width of 23 inches, with a product weight of 160 pounds. These dimensions reflect a robust, wall- or floor-mounted disconnect suitable for centralized DC distribution points in industrial facilities and large solar installations.
Yes. The DH165NWK is specifically configured as a fusible DC disconnect for 600 VDC systems, including solar PV installations. It provides a safe, code-compliant isolation point with a neutral fuse and a single circuit, meeting common utility and installer requirements for PV DC interconnection points.
The unit is UL Listed and housed in a NEMA 4X enclosure made from 304 stainless steel, delivering corrosion resistance and environmental protection for indoor and outdoor installations. These certifications and ratings help ensure safety, reliability, and compliance in demanding industrial environments.
Eaton provides a warranty per policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This warranty supports ongoing performance, with options to coordinate service and parts during the life of the DC disconnect in critical power systems.
