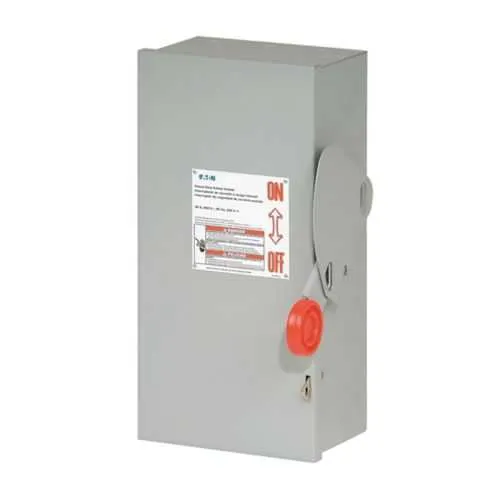

Eaton DH221NGK3 Fusible Safety Switch - UL Listed
Part Number: DH221NGK3
Quick Summary
Eaton DH221NGK3 fusible safety switch provides reliable 240V circuit disconnection for two-pole industrial panels. Maintenance teams struggle with slow fault isolation and ensuring operator safety in harsh environments where enclosure protection and code compliance matter. This unit features UL Listed certification, NEC 230.62 barrier compliance, and a NEMA 1 enclosure for robust protection against dust and incidental contact. By integrating a fusible switch with neutral, it simplifies wiring and reduces downtime, supporting safer commissioning and easier routine servicing. For spec-heavy environments, the 30A rating and solid build translate to longer service intervals and lower total cost of ownership while aligning with industrial reliability standards.
Product Information
Extended Description
DH221NGK3 Eaton: 30A/2P HD FuSIBLE SAFETY SWITCH 240V W/NEUT NEMA 1
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH221NGK3
UPC
786685940892
Product Length/Depth
10.77 in
Product Height
16.12 in
Product Width
8.81 in
Product Weight
17 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Amperage Rating
30A
NEMA rating
NEMA 1
Voltage rating
240V
Feature: Heavy-duty two-pole fusible switch with neutral. Business impact: provides precise overcurrent protection, reduces arc exposure, and simplifies wiring in control panels. Application: motor drives and machine disconnects in manufacturing lines. Feature: NEMA 1 enclosure with barrier and UL Listed certification. Impact: robust indoor protection against dust and incidental contact; simplifies compliance during audits. Application: indoor control panels and electrical rooms in industrial facilities. Feature: 30A amperage rating at 240V. Impact: supports typical plant loads while enabling selective fuse coordination to minimize downtime. Application: conveyors, pumps, and fans in process lines. Feature: Fuse configuration fusible with neutral. Impact: reduces neutral wiring complexity and ensures correct fuse behavior for safer maintenance. Application: power distribution and safety interlocks in automation cells. Feature: Compact footprint and weight. Impact: eases retrofits with dimensions of 10.77 in depth, 8.81 in width, 16.12 in height and 17 lb weight, enabling easier installation. Application: space-constrained panels and upgrade projects. Feature: Compliance and certifications including NEC barrier compliance and UL Listed. Impact: lowers compliance risk, accelerates project approvals, and supports plant-wide safety initiatives. Application: new builds and panel upgrades in regulated industrial environments.
Get a Quick Quote for a Eaton DH221NGK3
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH221NGK3?
Enquire Now
FAQs
Installing the DH221NGK3 requires a standard indoor panel with a two-pole disconnect and a neutral conductor for 240V circuits. Mount it in a compatible enclosure (NEMA 1) with proper barrier spacing and NEC-compliant wiring methods. The unit’s footprint supports retrofit and minimizes panel rework, aiding rapid commissioning and safer maintenance.
Key specs include a 30A amperage rating, 240V voltage rating, two-pole configuration, and fusible with neutral. This combination delivers reliable overcurrent protection, enables selective fuse coordination in motor circuits, and supports safer startup and lockout procedures. UL Listed status further simplifies procurement and compliance auditing.
Yes, the DH221NGK3 is designed for indoor use in environments protected by a NEMA 1 enclosure. It is not rated for outdoor or hazardous locations. For dusty facilities, ensure proper enclosure sealing and maintain recommended ambient conditions. This setup helps maintain safety margins and reduces corrosion risk over time.
The DH221NGK3 is UL Listed and NEC 230.62 barrier compliant, with a NEMA 1 enclosure. These certifications confirm electrical safety, code-adherent barrier protection, and suitable indoor enclosure protection. They simplify procurement, reassure auditors, and support regulatory compliance across manufacturing plants and panel builds.
Expected ROI stems from reduced downtime due to reliable disconnection and quick fuse replacement. The unit’s robust build and 30A 240V rating improve motor protection and arc containment, lowering the likelihood of unscheduled outages. Over time, this translates to fewer maintenance calls, safer operation, and lower total cost of ownership for plant-wide electrical protection.
