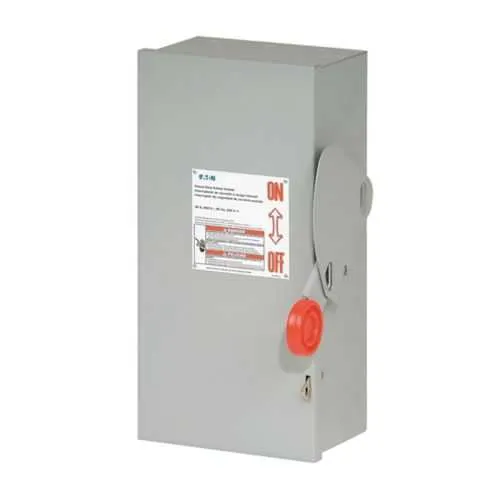

Eaton DH222FGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH222FGK
Quick Summary
Eaton DH222FGK is a heavy-duty fusible safety switch for industrial motor protection. This device helps minimize downtime by delivering reliable isolation and safe lockout in demanding installations. UL Listed protection, NEC 230.62 compliant barrier, and a rugged NEMA 1 painted steel enclosure ensure code compliance and durable operation. For panel builders and maintenance teams, it offers straightforward installation and scalable protection at 60 A and 240 V.
Product Information
Extended Description
DH222FGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 60 A, NEMA 1, Painted steel, Class H, Two-pole, Two-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH222FGK
UPC
786685175614
Product Length/Depth
16.5 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature: 60 A amperage rating and 240 V operation. Business Impact: Enables precise protection for small to mid-size motors, reducing nuisance trips and improving energy efficiency. Application: ideal for two-pole, fusible without neutral configurations in standard industrial motor circuits. This is complemented by a compact footprint that simplifies mounting in tight control-panel spaces. Feature: NEMA 1 painted steel enclosure. Business Impact: robust indoor protection against dust and incidental impacts while maintaining serviceability. Application: suitable for panel interiors and wall-mount installations in machine rooms. Feature: Class H fuse provision and fusible without neutral configuration. Business Impact: delivers selective coordination and safe fault isolation, minimizing collateral damage and downstream tripping. Application: motor feeders and simple line-side protections in conveyors and presses. Feature: UL Listed and NEC 230.62 compliant barrier. Business Impact: supports regulatory compliance and reduces audit findings during inspections. Application: preferred in regulated facilities and service equipment. Feature: Two-pole, two-wire design. Business Impact: simplifies wiring and reduces installation time, lowering labor costs. Application: standard motor control circuits in automation panels. Feature: Dimensions and weight. Business Impact: predictable physical fit reduces panel real estate needs and eases retrofits. Application: 16.5 in depth, 9.5 in width, 8.5 in height, 16 lb unit for quick integration. Feature: Warranty and support. Business Impact: minimizes lifecycle risk with policy coverage through installation to shipment. Application: procurement and long-term maintenance planning for OEMs and integrators.
Get a Quick Quote for a Eaton DH222FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH222FGK?
Enquire Now
FAQs
DH222FGK is designed for 240V, two-pole operation with a fusible configuration without neutral. Plan for a compact footprint in control panels, allow for clean wiring of two wires per pole, and ensure the enclosure is mounted within a NEMA 1 environment. Verify proper fuse type (Class H) to meet protection and timing requirements.
The switch is rated for 60A and 240V, with a two-pole, two-wire configuration. It uses Class H fusible provisions and is designed for fusible operation without a neutral conductor. This configuration supports motor protection with selectable fuse timing and helps coordinate protection with downstream devices.
Yes. The DH222FGK is UL Listed and uses a NEC 230.62 compliant barrier. Its NEMA 1 painted steel enclosure provides indoor protection suitable for controlled environments. These certifications and features simplify compliance during audits and ensure safe, predictable operation in standard industrial installations.
The unit supports motor protection across a range of HP levels tied to 60A at 240V and the fuse timing specified for 1- or 3-phase configurations. Selection should align with the motor HP, service conditions, and required time-delay characteristics to ensure proper coordination and fault isolation without nuisance tripping.
With UL Listing and NEC-compliant barriers, ongoing maintenance is streamlined through clear labeling and standard components. The 16 lb weight and 16.5 × 9.5 × 8.5 inch footprint simplify replacements and retrofits, while the one-year warranty (or 18 months from shipment) reduces lifecycle risk and supports faster ROI through reduced downtime and easier spares management.
