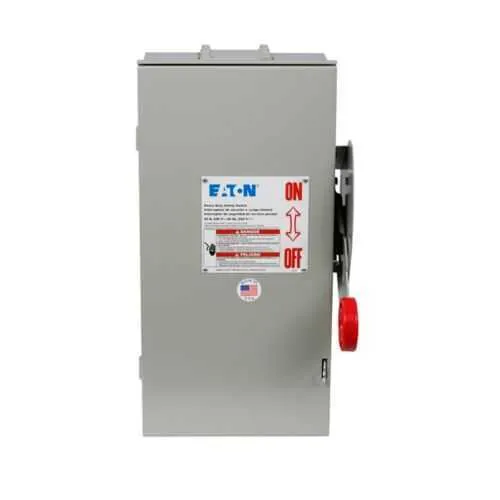

Eaton DH222FRK Heavy Duty Fusible Safety Switch - NEMA 3R
Part Number: DH222FRK
Quick Summary
Eaton DH222FRK heavy duty fusible safety switch is a rugged protection device designed for industrial control panels and equipment. It delivers reliable motor protection while simplifying fault interruption in demanding environments. Manufacturers often struggle with fuse timing, containment, and downtime; this switch addresses those challenges with a robust NEMA 3R enclosure and UL Listed safety. The installation benefits are complemented by Class H fuse provision and a two-pole design, supporting durable, code-compliant electrical protection. For OEMs and service teams, this solution translates to lower maintenance costs, easier wiring, and scalable panel designs, backed by Eaton’s proven performance in industrial protection and electrical components.
Product Information
Extended Description
DH222FRK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 60 A, NEMA 3R, Class H, Two-pole, Two-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH222FRK
UPC
786685176758
Product Length/Depth
16.5 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
19 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature → Business Impact → Application: The 60A, 240V rating with a two-pole, fusible without neutral configuration delivers precise fault isolation, reducing nuisance trips and protecting downstream equipment in automated lines. This translates to measurable uptime gains and safer startup sequences in heavy machinery. Application: suitable for industrial control panels with motor loads and feeders where reliable disconnection is essential. Feature → Business Impact → Application: NEMA 3R enclosure with painted galvanized steel construction provides weather-resistant protection for outdoor and indoor installations, lowering environmental failure risk and simplifying outdoor wiring. Application: outdoor enclosures, dusty factory floors, and exposed industrial settings. Feature → Business Impact → Application: UL Listed, Class H fuse provision, and 240 V operation ensure regulatory compliance and compatibility with standard fusing practices, enabling cost-effective maintenance and easier spare-part sourcing. Application: retrofit projects and new builds requiring certified protection. Feature → Business Impact → Application: Compact footprint with 16.5 in depth, 8.5 in height, 9.5 in width and 19 lb weight facilitates straightforward mounting in tight control panels, reducing install time and labor costs. Application: panel upgrades and space-constrained electrical rooms. Feature → Business Impact → Application: Max HP ratings up to 15 hp at 1,3PH with standard fuse/time-delay options improves motor protection strategies, enabling selective coordination and improved energy efficiency. Application: motor feeders in packaging, material handling, and process lines. These points address common objections by highlighting compatibility with standard fusing inventories, intuitive installation, and the ability to meet both safety and uptime targets in industrial environments.
Get a Quick Quote for a Eaton DH222FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH222FRK?
Enquire Now
FAQs
For retrofit or new panel builds, plan for a two-pole, fusible switch mounted within a NEMA 3R enclosure. Ensure adequate clearance for 16.5 inch depth, 8.5 inch height, and 9.5 inch width, and verify compatibility with 60A fuses and 240V circuits. Use proper disconnect timing and verify conductor gauge (#14-#2 Cu/Al) matches the fuse class and wiring.
The device is rated 60A with a 240V nominal voltage, two poles, and fuse configuration that is fusible without neutral. It supports motor HP ratings up to 15 hp (1–3 phase) with standard fuse/time-delay options, enabling selective protection and controlled inrush management. This combination improves protection coordination and minimizes unnecessary downtime from nuisance trips.
Yes. The enclosure is NEMA 3R rated and constructed from painted galvanized steel, providing weather resistance for outdoor and semi-indoor installations. UL Listed certification further confirms compliance with safety standards, making it appropriate for harsh environments while maintaining enclosure integrity and electrical safety.
The DH222FRK carries UL Listed certification and is housed in a NEMA 3R enclosure, signaling readiness for industrial electrical protection requirements. This combination supports compliance with common electrical codes for indoor and outdoor equipment, simplifies procurement and inspection processes, and helps ensure maintenance teams meet regulatory expectations during audits.
With a 60A, 240V rating and robust NEMA 3R enclosure, the DH222FRK minimizes unplanned outages by providing reliable fault interruption and durable protection for motors and feeders. The UL Listed certification, compact footprint, and straightforward installation reduce maintenance costs and spare-parts inventory, delivering measurable ROI through improved uptime, safety, and total cost of ownership.
