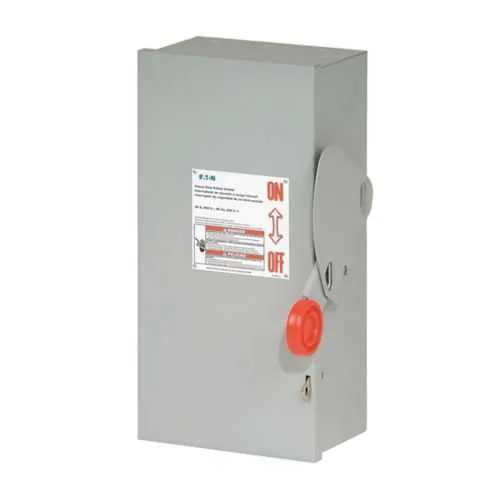

Eaton DH222NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH222NGK
Quick Summary
Eaton DH222NGK heavy duty fusible safety switch protects motor circuits in industrial control panels. This device provides reliable isolation while supporting fast, safe maintenance. The unit's UL Listed and CSA Certified ratings, plus NEC 230.62 compliant barrier, help you meet stringent regulatory requirements on the plant floor. Designed for indoor use in NEMA 1 enclosures, it enables robust 60 A protection with a fusible neutral configuration. For project timelines and total cost of ownership, its compatibility with two-pole, three-wire 240 V systems and standard fuse/time-delay options reduces wiring complexity and downtime during changes, upgrades, or routine servicing. Its compact footprint and straightforward mounting simplify retrofits and spare-part planning.
Product Information
Extended Description
DH222NGK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Two-pole, Three-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH222NGK
UPC
782113205779
Product Length/Depth
16.5 in
Product Height
8.31 in
Product Width
9.12 in
Product Weight
17 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed CSA Certified
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
60A heavy duty design provides quick, safe disconnect for motors and conveyors, reducing arc flash exposure and unplanned downtime. This two-pole, three-wire configuration with a fusible neutral supports selective protection and straightforward fault clearing in demanding environments. Enclosure guards internal components with a durable painted steel NEMA 1 housing, suitable for indoor dry locations. This enclosure choice simplifies installation in standard steel control panels and helps maintain a neat wiring footprint. Voltage rating 240V with HP ratings up to 15 hp for 3-phase depending on fuse/time-delay configuration ensures compatibility with common motor loads. Certifications and compliance include UL Listed, CSA Certified, and NEC 230.62 compliant barrier, aiding regulatory acceptance and safer installations. Dimensions and weight (16.5 in depth, 9.12 in width, 8.31 in height; 17 lb) support planning and retrofits in compact control spaces. Warranty and service options (Eaton 1 year warranty) help reduce total cost of ownership while ensuring support for lifecycle maintenance.
Get a Quick Quote for a Eaton DH222NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH222NGK?
Enquire Now
FAQs
Install in indoor dry locations using a NEMA 1 painted steel enclosure as specified. Mount the two-pole, three-wire disconnect with a neutral fuse configuration, ensure proper clearances for wiring, and verify 240V supply with 60A protection. Follow NEC requirements for barrier placement and maintain accessible disconnection for safe maintenance.
The unit is 60A, 240V and supports up to 3 HP for single-phase and up to 15 HP for three-phase configurations when using the standard fuse/time-delay arrangement at 250 Vdc, providing flexible motor protection across common industrial loads.
The DH222NGK is UL Listed and CSA Certified, with NEC 230.62 compliant barrier. This combination supports regulatory acceptance in most North American facilities and contributes to safer, compliant panel installations.
Key specs include a 16.5 in depth, 9.12 in width, 8.31 in height footprint with a 17 lb weight. It is a 60A, two-pole, three-wire device rated for 240V, using fusible with neutral Class H fuses, in a NEMA 1 enclosure.
The DH222NGK offers reliable isolation, standardized fuse options, and industry certifications that streamline compliance checks. Its straightforward mounting and compatibility with common motor loads reduce downtime during servicing and replacements, while the one-year warranty supports lifecycle maintenance.
