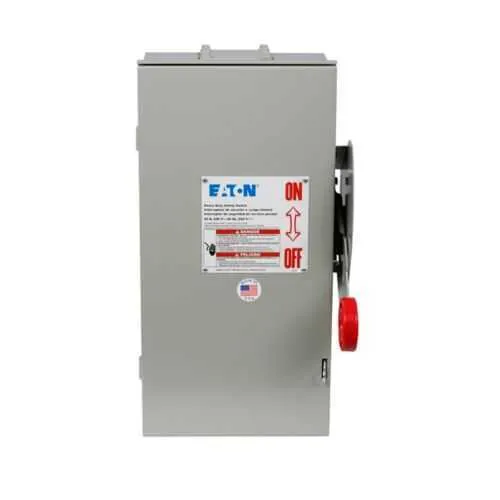

Eaton DH222NRK Heavy Duty Fusible Safety Switch - NEMA 3R
Part Number: DH222NRK
Quick Summary
The Eaton DH222NRK heavy duty fusible safety switch isolates 60A circuits in industrial control panels. For engineers, reliable protection without complex wiring reduces commissioning delays. This unit is UL Listed and CSA Certified, with a NEMA 3R enclosure that stands up to outdoor exposure and demanding indoor environments. Its neutral-capable design and 240 V operation offer a straightforward upgrade path for motor control and line-side protection, enabling safer operations, easier maintenance, and a lower total cost of ownership. By combining rugged construction with clear wiring options, it supports compliant, predictable performance in critical equipment applications.
Product Information
Extended Description
DH222NRK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 3R, Painted galvanized steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH222NRK
UPC
782113205793
Product Length/Depth
16.5 in
Product Height
8.31 in
Product Width
9.12 in
Product Weight
19 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature The 60A amperage rating with 240V, two-pole configuration provides solid overload protection while enabling safe isolation of motor circuits. Business Impact This reduces the risk of electrical faults propagating through the line, minimizes unplanned downtime, and supports predictable startup sequences in conveyors, pumps, and presses. Application Use this in motor-driven equipment where reliable 60A protection and a straightforward neutral path are required, such as packaging lines and material handling systems. Feature The NEMA 3R enclosure with painting on galvanized steel delivers high durability in harsh environments. Business Impact It resists weathering, corrosion, and incidental impacts, extending service life and reducing enclosure maintenance costs. Application Suitable for outdoor service entrances, control panels in damp facilities, and washdown environments where protection against moisture is essential. Feature Class H fuse provision and fusible with neutral configuration support flexible protection strategy. Business Impact Enables easy coordination with upstream protection, improving selectivity and fault clearance while preserving downstream equipment. Application Ideal for integrated control panels and switchgear where precise fuse management and neutral conductors are required. Feature Compact footprint and defined dimensions plus a 19 lb weight simplify installation and cabinet integration. Business Impact Improves install time, reduces space requirements, and lowers handling costs during upgrades or replacements. Application Fits within limited control-room or equipment enclosures, aiding OEMs and facilities teams with retrofit projects. Feature UL Listed and CSA Certified with a one-year warranty provides procurement confidence and regulatory alignment. Business Impact Streamlines compliance documentation, supplier qualification, and maintenance planning while delivering post-sale support. Application Useful across industrial facilities that demand recognized safety certifications for electrical protection devices.
Get a Quick Quote for a Eaton DH222NRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH222NRK?
Enquire Now
FAQs
The DH222NRK is Eaton's heavy-duty fusible safety switch designed for isolating 60A circuits at 240V. It combines a two-pole, three-wire configuration with a neutral and a NEMA 3R enclosure, making it ideal for motor control centers, conveyors, and other industrial equipment where safe, compliant isolation is required.
Key specs include a 60A amperage rating, 240V operation, two-pole, three-wire configuration with neutral, UL Listed and CSA Certified status, and a max HP rating of up to 15 hp for certain 1-3 phase configurations. It uses Class H fuses and is designed for 240V systems with NEMA 3R protection.
Yes, it is UL Listed and CSA Certified, which simplifies procurement by meeting widely recognized electrical safety and performance standards. This certification aids in regulatory compliance, reduces risk in audits, and supports faster qualification for projects across North America.
Best suited for motor-driven equipment, conveyors, pumps, and machine controls where reliable isolation and protection are needed. Its 240V operation, neutral capability, and NEMA 3R enclosure make it versatile for indoor panels and outdoor or washdown environments alike.
Plan for a compact footprint with dimensions 16.5 in depth, 8.31 in height, and 9.12 in width. It weighs 19 lb for manageable handling. Fuse replacement should use Class H fuses, and routine checks should verify enclosure integrity and wiring connections to maintain UL/CSA compliance over time.
