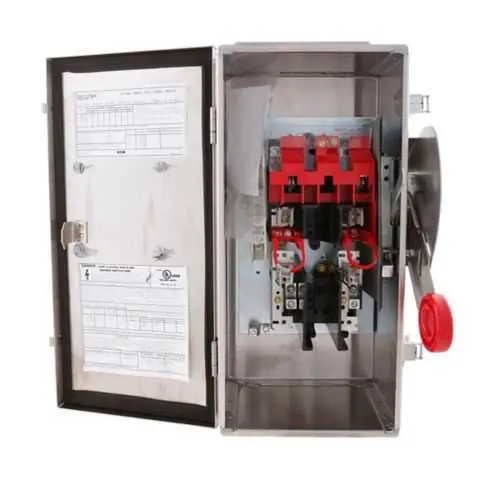

Eaton DH222NWK Safety Switch - NEMA 4X 316 Stainless
Part Number: DH222NWK
Quick Summary
DH222NWK heavy-duty fusible safety switch provides reliable motor and power control for demanding industrial environments. In harsh facilities, downtime and corrosion risk erode productivity, so robust protection is essential. UL Listed certification accompanies a rugged NEMA 4X enclosure and 316 stainless steel construction, delivering corrosion resistance and long service life. Designed for three-wire, two-pole circuits at 240 V with neutral, it supports space-efficient layouts and simple wiring. For maintenance teams and engineers, the DH222NWK offers predictable service intervals, improved safety, and lower total cost of ownership in washdown, chemical handling, and other demanding applications.
Product Information
Extended Description
DH222NWK Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 60 A, NEMA 4X, Grade 316 stainless steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH222NWK
UPC
782113205885
Product Length/Depth
20 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature: Hefty corrosion-resistant enclosure. Benefit: Provides long-term reliability in washdown and chemical environments, reducing replacement costs and downtime. Application: Food processing, petrochemical, and water treatment facilities. Feature: 60A amperage rating with two-pole, three-wire configuration. Benefit: Safe, straightforward motor control with clean power switching and minimized fault risk. Application: Conveyor lines, industrial pumps, and HVAC controls. Feature: Fusible with neutral and Class H fuse provision. Benefit: Simplified protection coordination and fast fault isolation for safer startups. Application: Systems requiring precise fuse protection and neutral reference. Feature: NEMA 4X enclosure, 316 stainless steel construction. Benefit: Superior corrosion resistance and durability in challenging environments, lowering maintenance spend. Application: Outdoor or wet, dusty environments with frequent washdowns. Feature: UL Listed certification and 240 V operation. Benefit: Compliance with electrical safety standards and compatibility with common industrial power systems. Application: General industrial control panels, safety interlocks, and motor control centers.
Get a Quick Quote for a Eaton DH222NWK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH222NWK?
Enquire Now
FAQs
For panel installation, verify panel bus capacity supports 60A and ensure 240 V supply with neutral is wired to the two-pole fusible switch. Mount the unit in a suitable NEMA 4X-rated enclosure area, allow clearance for 20 in depth and 9.5 in width, and follow standard safety procedures during wiring to maintain UL compliance.
The DH222NWK provides a 60A amperage rating, 240V voltage rating, two-pole configuration with neutral, 3 wires total, and uses Class H fuse protection. It carries UL Listed certification and supports 3-phase HP ratings as per catalog notes, with grounded B-phase ratings for accurate sizing in 3-phase systems.
Yes. The enclosure is NEMA 4X rated and the enclosure material is 316 stainless steel, offering excellent corrosion resistance in washdown and chemical handling areas. This makes it well-suited for food processing, water treatment, and process industries where exposure to moisture and contaminants is common.
The product is UL Listed, indicating compliance with recognized safety standards for electrical equipment. The NEMA 4X enclosure rating provides environmental protection, and the 316 stainless steel construction further supports durability in harsh environments. Catalog notes confirm grounded B-phase HP ratings for 3-phase configurations.
Expect reduced maintenance through corrosion resistance and durable stainless enclosure, lowering replacement frequency in aggressive environments. The solid protection, UL listing, and robust construction translate to fewer unplanned outages, faster fault isolation, and a lower total cost of ownership over the switch’s lifecycle in industrial facilities.
