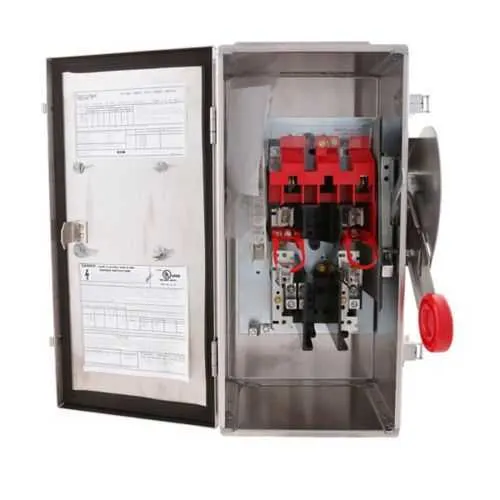

Eaton DH222NWK316 Fusible Safety Switch - UL Listed
Part Number: DH222NWK316
Quick Summary
Eaton DH222NWK316 heavy duty fusible safety switch provides robust protection for motor circuits in demanding industrial environments. Maintenance teams struggle with downtime, corrosion, and ambiguous blade visibility that hinder safe, quick disconnection. UL Listed certification, NEC barrier compliance, and a NEMA 4X stainless enclosure deliver durable protection in harsh washdown or outdoor settings. Designed for retrofit and new installs, it integrates with standard mounting footprints and uses a neutral-fused path for coordinated control with other safety devices. Field technicians appreciate the enhanced visible blade, quick-access terminals, and stainless enclosure that stand up to washdown, chemical exposure, and harsh environments. This translates to reduced maintenance costs, faster changeovers, and improved safety compliance across manufacturing lines.
Product Information
Extended Description
DH222NWK316 Eaton: Eaton Custom single-throw fused safety switch, Corrosion resistant, enhanced visible blade, 60 A, NEMA 4X, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH222NWK316
UPC
782116489763
Product Length/Depth
20 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
60A
HP rating - max
3, 7.5 hp/10, 15 hp/10 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature: NEMA 4X stainless steel enclosure provides excellent corrosion resistance in washdown and outdoor environments. Business Impact: increases service life and reduces enclosure maintenance, lowering total cost of ownership in harsh facilities. Application: ideal for food & beverage, water/wastewater, and chemical processing lines where moisture and corrosives are common. Feature: 60 A amperage rating with 240 V operation in a two-pole, three-wire configuration. Business Impact: delivers reliable motor protection for pumps, conveyors, and fans with predictable fault isolation. Application: suitable for mid-sized industrial feeders and motor control applications across manufacturing lines. Feature: Fusible with neutral configuration and Class H fuse. Business Impact: enables selective coordination and safe shutdown with minimized nuisance trips, protecting downstream equipment. Application: aligns with standard safety protocols in control panels and direct-meeded motor circuits. Feature: Enhanced visible blade for quick status checks and fast maintenance. Business Impact: reduces downtime during lockout/tagout and improves operator confidence during routine inspections. Application: ideal for high-turnover maintenance environments and critical production lines. Feature: UL Listed certification and NEC 230.62 barrier compliance. Business Impact: supports compliance-driven projects, faster approvals, and safer installations with documented standards. Application: essential for regulated facilities and retrofit projects seeking robust electrical protection with validated safety compliance. Feature: 304 stainless steel enclosure material and rugged design for field reliability. Business Impact: minimizes corrosion-related failures and extends service life in demanding environments. Application: suitable for outdoor installations, corrosive atmospheres, and washdown zones across process industries.
Get a Quick Quote for a Eaton DH222NWK316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH222NWK316?
Enquire Now
FAQs
DH222NWK316 is designed for standard mounting footprints and requires a two-pole, three-wire connection with a neutral. It integrates with common low-voltage control schemes and aligns with NEMA 4X installation practices, simplifying retrofits and new builds.
The unit supports 60A continuous rating and HP ranges up to 15 hp at 240V, with 1P or 3P configurations depending on fuse type and timing. It uses standard or time-delay fusing per application, delivering predictable protection for motors and feeders.
Yes. The enclosure is rated NEMA 4X and constructed from 304 stainless steel, delivering corrosion resistance and reliable operation in washdown, outdoor, and chemically harsh environments.
The product is UL Listed and features NEC 230.62 barrier compliance. These certifications support safe, code-compliant installations and simplify regulatory approvals for industrial projects.
Expect reduced downtime due to enhanced blade visibility and reliable isolation, lower maintenance costs from corrosion-resistant construction, and faster commissioning from standard mounting compatibility, all contributing to improved total cost of ownership.
