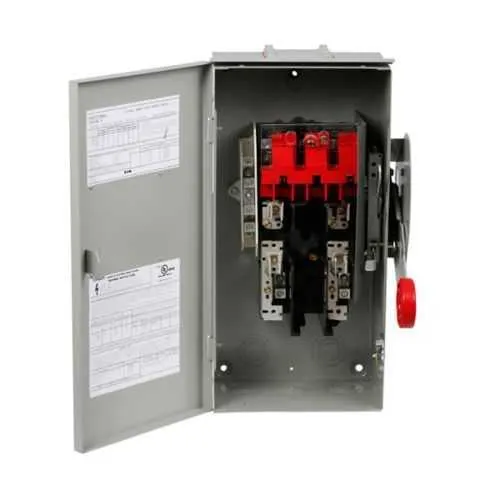

Eaton DH223FDKW Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH223FDKW
Quick Summary
DH223FDKW Heavy Duty Fusible Safety Switch delivers reliable protection for industrial equipment and heavy commercial loads. Many users struggle with downtime caused by unclear fuse status or difficult on-site inspections. UL Listed certification, NEMA 1 painted steel enclosure, and Class H fuse provision help ensure compliance and long service life. Designed for 240 V systems with a 100 A rating, it supports motor loads up to 30 hp in 1- and 3-phase configurations, delivering safer, faster maintenance and reduced downtime across facilities.
Product Information
Extended Description
DH223FDKW Eaton: Eaton Heavy duty single-throw fused safety switch, 100 A, NEMA 1, Painted steel, Two-pole, Two-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH223FDKW
UPC
786680181474
Product Length/Depth
22.5 in
Product Height
8.5 in
Product Width
12.5 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS). Window & Visible Blade
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 12/3R
Voltage - max
600 V
Voltage rating
240V
Application
Heavy commercial and industrial
Series
K
Feature: 100 A amperage with a two-pole, fusible configuration. Business Impact: Enables precise load protection and clean isolation, reducing arc flash risk and protecting downstream equipment. Application: Ideal for heavy commercial and industrial motors up to 30 hp in 1- and 3-phase setups, with straightforward field replacement. Feature: NEMA 1 enclosure in painted steel. Business Impact: Durable indoor protection against dust and incidental impact, simplifying installation in service rooms and switch gear spaces. Application: Indoor industrial environments requiring reliable protection and easy mounting. Feature: Window and Visible Blade. Business Impact: Quick visual verification of blade status, shortening maintenance windows and improving uptime. Application: Frequent inspections in manufacturing lines where rapid fault diagnosis matters. Feature: Fuse class provision Class H and Fusible without neutral. Business Impact: Safe, compliant fuse protection with simplified wiring and upgrade paths. Application: OEM panels and retrofit projects needing robust overcurrent protection. Feature: UL Listed certification and warranty. Business Impact: Procurement ease and regulatory confidence, backed by a one-year installation warranty or 18 months from shipment. Application: Compliance-heavy environments and long-term asset management across facilities.
Get a Quick Quote for a Eaton DH223FDKW
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH223FDKW?
Enquire Now
FAQs
DH223FDKW is a two-pole, fusible safety switch rated for 100 A and 240 V in indoor NEMA 1 enclosures. It supports 1- and 3-phase motor loads and uses Class H fuses without a neutral. For retrofit projects, verify panel space, wiring method, and available fuse blocks to ensure a straightforward drop-in replacement with proper torque settings on terminal connections.
Key specs include a 100 A amperage rating, 240 V nominal voltage with a 600 V maximum, and HP ratings up to 7.5–30 hp depending on configuration and phase. It is designed for heavy-duty motor protection, with two-pole operation and a fusible design to interrupt fault current quickly, supporting reliable shutdown in fault conditions.
The DH223FDKW uses a NEMA 1 enclosed painted steel enclosure intended for indoor dry locations. While it provides robust protection from dust and incidental contact, it is not rated for outdoor or wet environments. Use in dry industrial spaces and control rooms where enclosure integrity can be maintained.
The unit is UL Listed, with a NEMA 1 enclosure and Class H fuse provision. Warranty terms follow Eaton’s policy: one year from installation or eighteen months from shipment, whichever comes first. This combination supports regulatory compliance and predictable long-term maintenance planning.
The window and visible blade allow quick, non-contact status checks of the switch's operating blade without full disassembly. This reduces maintenance time, enhances safety during routine inspections, and helps confirm proper isolation before servicing industrial equipment, improving overall maintenance efficiency.
