Eaton DH223FGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH223FGK
Quick Summary
Eaton DH223FGK heavy duty fusible safety switch isolates industrial power circuits safely in motor control centers. Engineers often contend with unplanned downtime caused by undersized protection, confusing fuse configurations, and slow fault isolation. UL Listed protection, NEC 230.62 (C) compliant barrier, and a rugged NEMA 1 painted steel enclosure deliver dependable, code-compliant performance in harsh manufacturing environments. This design accepts two wires and two poles for straightforward wiring and fast installation. The 100 A rating supports common motor drives, while 240 V operation aligns with standard industrial power distribution. By combining robust protection with compact enclosure footprint, this switch reduces maintenance costs and improves overall panel reliability.
Product Information
Extended Description

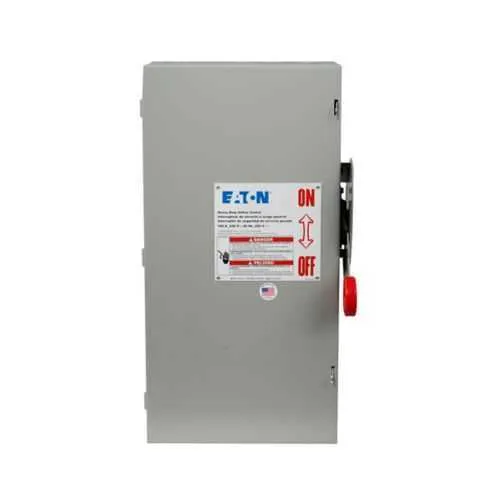

DH223FGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 100 A, NEMA 1, Painted steel, Two-pole, Two-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH223FGK
UPC
786685176710
Product Length/Depth
22.5 in
Product Height
9 in
Product Width
12.75 in
Product Weight
22 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature: Two-pole, fusible without neutral with two wires. Business Impact: Simplifies wiring, reduces misconnection risk, and speeds installation in control panels. Application: Ideal for compact motor control centers and equipment with straightforward in/out wiring. Feature: 100 A amperage rating with multiple HP configurations. Business Impact: Supports a range of motor drives up to 30 hp depending on phase and fuse configuration, enabling scalable protection for growing systems. Application: Conveyor lines and machine packs where squarely matched protection reduces downtime. Feature: NEMA 1 enclosure in painted steel. Business Impact: Provides indoor protection against dust and incidental impact, improving reliability in shop floors and electrical rooms. Application: Indoor motor control cabinets, enclosed switchgear areas. Feature: Fuse class provision Class H and fuse configuration Fusible without neutral. Business Impact: Delivers proven overcurrent protection with time-delay options, reducing nuisance trips and extending motor life. Application: Standard and delay-fuse protection for mixed-load drives. Feature: UL Listed and NEC 230.62 (C) compliant barrier. Business Impact: Facilitates code-compliant installations and simplifies inspector acceptance, lowering project risk. Application: Commercial and industrial facilities needing certified protection. Feature: Durable construction with clear labeling and mounting compatibility. Business Impact: Easier maintenance and faster replacement, reducing downtime during service windows. Application: New panels and retrofits in machine rooms and assembly lines. Warranty and documentation: One year from installation or eighteen months from shipment, whichever comes first, with available Eaton datasheets and spec sheets to support procurement and commissioning.
Get a Quick Quote for a Eaton DH223FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH223FGK?
Enquire Now
FAQs
When installing the DH223FGK in a 240V system, verify the enclosure is mounted indoors in a clean, dry environment compatible with NEMA 1 protection. Use the two-pole, two-wire configuration and select the appropriate Class H fuse with the desired time-delay characteristic. Ensure clear labeling, proper torque on connection terminals, and adherence to NEC 230.62 (C) barrier requirements for safe, compliant operations.
The DH223FGK is designed as fusible without neutral with Class H fuse provision. This configuration provides effective overcurrent protection for motor drives and control circuits, offering time-delay options for motor inrush and startup surges. It simplifies protection coordination within 100 A circuits while keeping wiring straightforward for installers and electricians.
Yes. The DH223FGK supports 1- and 3-phase configurations, with HP ratings and fuse timing that adapt to single-phase and three-phase motor drives. The device’s 240V rating and two-pole design make it compatible with typical industrial motor applications while maintaining robust protection and fast isolation during faults.
The DH223FGK carries UL Listed certification and NEC 230.62 (C) compliant barrier, ensuring it meets electrical safety and code requirements for indoor protection. This combination supports code-compliant installations in factory floors, warehouses, and machine rooms, reducing the risk during regulatory inspections and warranty claims.
Expected benefits include reduced unplanned downtime due to reliable isolation, faster fault isolation, and simpler spares management with a single compact unit. The 100 A rating supports common drives, while the UL listed and NEC compliant design minimizes compliance risk. Overall, this translates to lower maintenance costs and improved line uptime.
