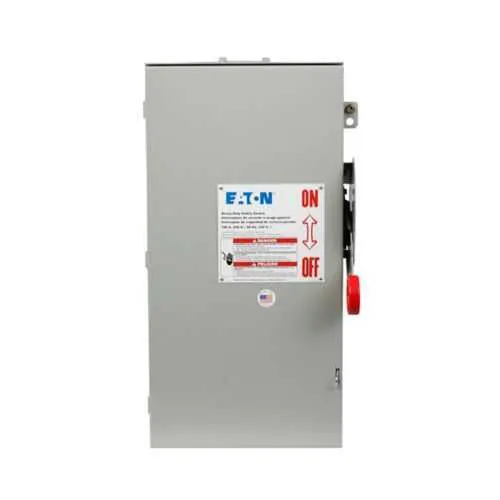

Eaton DH223FRK Fusible Safety Switch - UL Listed
Part Number: DH223FRK
Quick Summary
DH223FRK is a heavy-duty fusible safety switch designed to safely isolate 240V circuits in industrial control panels. Operators and maintenance teams often struggle with long downtime and safety risk during fault isolation; this solution minimizes both by providing a robust enclosure, enhanced visible blade, and proven fuse protection. The unit carries UL Listed certification and a NEMA 3R enclosure rating, offering reliable indoor and outdoor performance in harsh environments. By combining a two-pole, two-wire design with 100A capacity and a definitive HP range, it delivers durable electrical protection while simplifying installation and compliance for motor and line protection projects.
Product Information
Extended Description
DH223FRK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 100 A, NEMA 3R, Painted galvanized steel, Two-pole, Two-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH223FRK
UPC
786685176765
Product Length/Depth
22.5 in
Product Height
9 in
Product Width
12.75 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature to benefit: Heavy-duty fusible design provides reliable circuit isolation, reducing arc flash exposure and enabling safe maintenance in demanding environments. Application: Ideal for motor circuits and power distribution in manufacturing lines where uptime matters. Feature to benefit: NEMA 3R enclosure in painted galvanized steel delivers weather resistance and vandal protection, improving long-term service intervals and reducing enclosure maintenance costs. Application: Outdoor equipment housings, outdoor panels, and damp locations requiring robust protection. Feature to benefit: Fuse class provision with Class H fusing and fusible without neutral configuration enables flexible protection schemes and simpler refurbishment of older systems. Application: Retrofit projects and new builds with mixed voltage and phase configurations. Feature to benefit: Two-pole, two-wire configuration at 240V with a max HP range supports scalable motor control from 7.5 to 30 hp depending on phase and fuse/delay settings. Application: Machine tools, conveyors, and processing lines needing precise motor protection. Feature to benefit: Compatibility with standard fuse/time-delay options and a 100A rating helps control energy costs and reduce downtime through predictable fault response. Application: Facility power distribution upgrades and new equipment installations.
Get a Quick Quote for a Eaton DH223FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH223FRK?
Enquire Now
FAQs
The DH223FRK fits in standard control panel configurations with a 22.5 inch depth, 12.75 inch width, and 9 inch height footprint, weighing 26 pounds. Installers should plan for a two-pole, two-wire 240V configuration, use appropriate fuses (Class H) for the intended HP load, and ensure the enclosure remains in a protected, code-compliant space consistent with a UL Listed product and a NEMA 3R rating. Provide clear blade visibility for safe operation during maintenance.
DH223FRK is rated for 100A at 240V. The maximum horsepower varies by configuration: 7.5 hp, 15 hp for single‑phase, and 15 to 30 hp for three‑phase operation when using standard fuse with time-delay at 250Vdc. This range supports a broad spectrum of motor loads, enabling safe isolation without overrating the switch for common industrial motors.
Yes. The enclosure is NEMA 3R rated and built from painted galvanized steel, providing protection against rain, dust, and corrosion in outdoor or damp locations. This makes it suitable for outdoor equipment housings and exposed installations where operator safety and reliable isolation are critical, while maintaining UL Listed compliance.
The DH223FRK carries UL Listed certification, indicating adherence to recognized safety standards for electrical switchgear. The NEMA 3R enclosure rating ensures the unit can withstand outdoor and damp environments, protecting internal components from weather and debris. These certifications matter because they help ensure compliance, reduce risk, and support code acceptance in industrial installations.
Maintenance is straightforward due to a robust galvanized enclosure and the availability of standard Class H fuses, enabling quick replacement and minimal downtime. The UL Listed, rugged design helps reduce unexpected failures, translating to lower maintenance costs and improved uptime over the equipment lifecycle. The 1-year warranty further supports total cost of ownership in routine service scenarios.
