Eaton DH223FWK Heavy-Duty Fusible Safety Switch - UL Listed
Part Number: DH223FWK
Quick Summary
Eaton DH223FWK heavy-duty fusible safety switch protects industrial machinery and control panels. Users often wrestle with corrosion, downtime, and regulatory compliance; this unit delivers a corrosion-resistant, rugged enclosure and a robust safety mechanism. Key ratings include UL Listed protection and a NEMA 4X stainless enclosure designed for harsh environments. The combination of a 100 A rating, 240 V operation, and a Class H fuse provision translates to safer maintenance, quicker troubleshooting, and reduced spare-part costs. In practice, this device supports reliable line-side protection and scalable integration in panel assemblies while aligning with common procurement and maintenance workflows.
Product Information
Extended Description

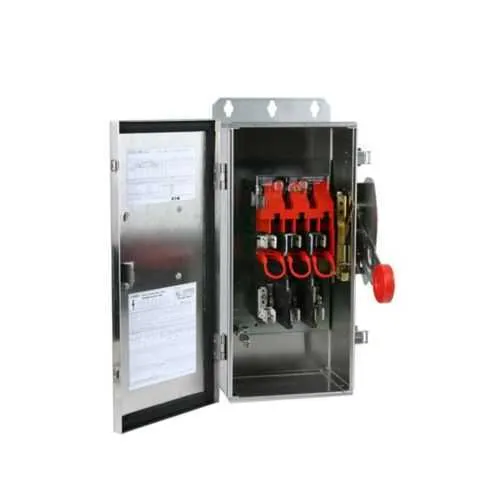

DH223FWK Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, enhanced visible blade, 100 A, NEMA 4X, Two-pole, Two-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH223FWK
UPC
786685234878
Product Length/Depth
25.5 in
Product Height
9 in
Product Width
13.25 in
Product Weight
29 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Contact the Safety Switch Flex Center for availabily of this product
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature → Business Impact → Application: Heavy-duty fusible design with two-pole, 100 A capacity delivers reliable circuit interruption and minimizes arc-flash exposure, reducing downtime and enhancing worker safety across industrial lines. This translates to measurable uptime gains and predictable protection for critical equipment in manufacturing cells and material handling systems. Feature → Application: NEMA 4X enclosure with 304 stainless steel construction provides corrosion resistance in washdown and harsh environments, extending service life in food & beverage, chemical processing, and outdoor installations. Feature → Business Impact → Application: Fuse provisions configured as Class H and fusible without neutral simplify compliance with standard electrical hierarchies while reducing spare parts complexity; ideal for retrofit projects and new builds where incremental protection is required. Feature → Application: 240 V, two-wire operation with compatibility for 1- and 3-phase configurations enables seamless integration into existing control panels and motor starter circuits, supporting scalable protection for conveyors, presses, and packaging lines. Feature → Business Impact → Application: Enhanced visible blade design improves status visibility during maintenance, accelerating fault diagnosis and reducing unplanned outages in high-use manufacturing environments. Feature → Application: UL Listed certification and robust module construction provide regulatory assurance and risk mitigation, supporting audits and long-term ownership cost reductions while aligning with installation best practices.
Get a Quick Quote for a Eaton DH223FWK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH223FWK?
Enquire Now
FAQs
For proper installation, mount the two-pole switch inside a NEMA 4X enclosure using corrosion-resistant 304 stainless steel. Use the fusible without neutral configuration with Class H fuses as specified, and ensure the unit operates at 240 V with 100 A rating. Verify compatibility with your panel layout and space constraints, and plan for standard fuse/time-delay protection where applicable.
The DH223FWK supports configurations suitable for both 1- and 3-phase systems. HP ratings vary by phase and fuse timing, with a maximum rating indicated as 7.5 to 30 HP in the data sheet depending on the exact configuration (1P vs 3P and time-delay fuse usage at 250 Vdc). Confirm your motor plant requirements and select the appropriate fuse timing and phase to match your drive.
This switch is UL Listed, indicating compliance with recognized safety standards. It also features a NEMA 4X enclosure suitable for protected outdoor and corrosive environments. The 304 stainless steel enclosure further enhances corrosion resistance, supporting maintenance-free operation in harsh facilities and simplifying compliance documentation for audits.
Maintenance should focus on periodic fuse inspection and replacement with Class H fuses compatible with 100 A ratings. Inspect the enhanced visible blade for clear status indicators during service, and check enclosure integrity for any corrosion or seal wear. Maintain a small stock of standard fuses and contact safety-switch support for any specialized fuse configurations.
The combination of a corrosion-resistant 304 stainless steel enclosure, NEMA 4X protection, UL Listed compliance, and a robust fusible circuit design minimizes unplanned outages and enhances personnel safety. Its two-pole, 100 A, 240 V configuration supports reliable protection for motors and controls, reducing fault propagation and enabling faster maintenance in demanding manufacturing and processing environments.
