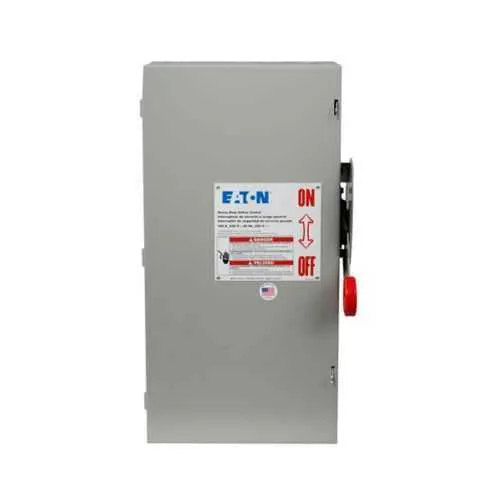

Eaton DH223NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH223NGK
Quick Summary
The Eaton DH223NGK heavy duty fusible safety switch protects and isolates motors in industrial control panels. It helps prevent downtime by delivering dependable fault isolation in demanding environments where dust, vibration, and space constraints challenge reliability. Key certifications include UL Listed status, NEC 230.62 compliant barrier, and a rugged NEMA 1 painted steel enclosure designed for indoor service. This 100 A device supports 240 V systems with a fusible neutral configuration, offering scalable HP protection for both 1- and 3-phase applications. For procurement teams, it combines safety compliance with installation practicality, delivering predictable performance and long-term total cost of ownership improvements when paired with standard time-delay fuses.
Product Information
Extended Description
DH223NGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 100 A, NEMA 1, Painted steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH223NGK
UPC
782113206226
Product Length/Depth
22.5 in
Product Height
9 in
Product Width
12.75 in
Product Weight
23 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature: Two-pole, 3-wire design with a fusible neutral and a 100 A rating. Business impact: provides clear electrical isolation and reliable protection for motor feeders, reducing arcing risk and improving maintenance turnaround. Application: ideal for indoor motor circuits in packaging lines and conveyors. Feature: HP ratings that scale across 7.5, 15, and 30 hp depending on phase and fuse/time delay at 250 Vdc. Business impact: supports a range of motor loads with a single device, reducing part proliferation and inventory costs. Application: retrofit and new installations in general plant automation. Feature: NEMA 1 enclosure with painted steel construction. Business impact: robust indoor protection against dust and minor impacts, extending service life in harsh facilities. Application: panel-mounted protection inside control rooms and machine enclosures. Feature: UL Listed certified and NEC 230.62 barrier-compliant. Business impact: accelerates compliance audits and reduces risk of nonconforming installations. Application: facilities with strict wiring codes and safety mandates. Feature: Class H fuse provision and fusible with neutral configuration. Business impact: ensures selective coordination and safe isolation during faults, with straightforward fuse replacement. Application: motor starters and power feeds in industrial lines. Feature: 22.5 in depth, 9 in height, 12.75 in width, 23 lb weight. Business impact: manageable footprint for installation in crowded panels while maintaining handling ease for maintenance teams. Application: retrofit plans where space is limited.
Get a Quick Quote for a Eaton DH223NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH223NGK?
Enquire Now
FAQs
DH223NGK is designed for indoor panels with a NEMA 1 enclosure and a two-pole, three-wire layout including a neutral. It fits standard mounting footprints and supports standard time-delay fuses. When planning installation, verify 240 V supply, ensure proper clearance for safe operation, and confirm compliance with NEC 230.62 barrier requirements to maintain safeguarding clearances.
HP ratings vary by configuration: 7.5 hp, 15 hp, and 30 hp options are available across 1- and 3-phase setups with standard fuse or time-delay fuses at 250 Vdc. This means you select the appropriate HP rating based on motor torque and startup behavior, while maintaining 240 V operation and 100 A protection.
Yes. The unit utilizes a NEMA 1 painted steel enclosure suitable for indoors, and it carries UL Listed certification for electrical safety. NEC 230.62 compliant barriers further ensure safe separation of live parts, supporting compliance in regulated facilities and audits.
The fusible with neutral design enables straightforward fuse replacement without disturbing control wiring. The Class H fuse provision supports reliable fault isolation, reducing nuisance trips. The UL listing and NEC barrier compliance simplify inspections, while the compact footprint eases preventative maintenance within crowded panels.
Plan for standard time-delay or fast-acting fuses compatible with Class H provisions and 250 Vdc operation. Ensure availability of a spare neutral fuse, verify the 240 V supply, and confirm that the panel supports 3-wire, two-pole configurations. The unit’s NEMA 1 enclosure and painted steel construction support straightforward mounting and long service life in indoor environments.
