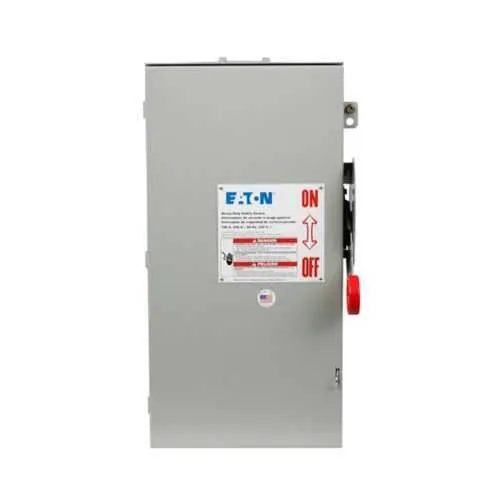

Eaton DH223NRK Fusible Safety Switch - UL Listed
Part Number: DH223NRK
Quick Summary
The Eaton DH223NRK fusible safety switch provides rugged, code-compliant protection for heavy-duty industrial circuits. When downtime or misapplied protection threaten safety and productivity, reliable switchgear is essential. Key certifications include UL Listed safety compliance and a NEMA 3R enclosure for outdoor or harsh environments. With a neutral included and flexible HP ratings, it offers scalable protection without complicating wiring. This model brings 100A protection, 240V operation, and neutral-enabled wiring to industrial panels, improving reliability and simplifying maintenance. Designed for field installers, it features compact dimensions for tight spaces and straightforward wiring with a neutral. When used with time-delay fuses, it accommodates a wide range of motor loads while meeting UL 489 requirements.
Product Information
Extended Description
DH223NRK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 100 A, NEMA 3R, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH223NRK
UPC
782113206233
Product Length/Depth
22.5 in
Product Height
9 in
Product Width
12.75 in
Product Weight
26 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
100A
HP rating - max
7.5, 15 hp/15, 30 hp/20 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
100 A amperage rating with 240 V operation and neutral-enabled wiring ensures robust overload protection and straightforward integration with standard panel architectures. This minimizes miswiring risks and reduces panel redesign costs. It is well suited for motor control centers, conveyors, and process lines in manufacturing environments where uptime matters. The enclosure is a NEMA 3R rated, painted galvanized steel housing that delivers reliable protection against rain, dust, and corrosion. This means safer outdoor and rugged indoor installations, fewer weather-related faults, and longer service life. Fuse class provision with Class H fuses and neutral configuration enables selective coordination and fast fault isolation. This reduces downtime, protects downstream equipment, and simplifies stocking by using common fuse types. HP rating flexibility supports scalable motor control for mixed loads, offering up to 7.5 hp on single-phase and higher ratings on three-phase installations when paired with appropriate fusing and time-delay characteristics. Installer-friendly dimensions and weight support quick deployment in tight spaces; 22.5 in depth, 12.75 in width, 9 in height, and a 26 lb weight align with common electrical footprints and reduce labor time. UL Listed certification provides regulatory assurance for safety-critical installations, while the warranty of one year from installation or eighteen months from shipment supports cost of ownership and service planning.
