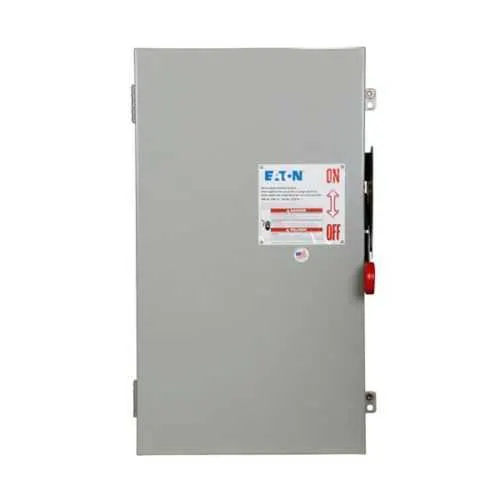

Eaton DH224FGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH224FGK
Quick Summary
The Eaton DH224FGK heavy duty fusible safety switch protects motor circuits in demanding industrial installations. Upgrading control panels often leads to nuisance fuse trips, complicated wiring, and extended downtime during maintenance. UL Listed, NEC 230.62 compliant barrier, and a NEMA 1 painted steel enclosure ensure safety, code compliance, and reliable indoor service. The design supports 200 A circuits and two-pole, two-wire connections for 240 V systems, with 15–60 hp ratings across 1 and 3-phase configurations. This combination delivers consistent protection, reduced maintenance costs, and faster panel modernization for OEMs and maintenance teams. For engineers seeking reliable industrial protection equipment and a robust fuse switch for motor control, DH224FGK offers a practical, future‑proof choice.
Product Information
Extended Description
DH224FGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 200 A, NEMA 1, Painted steel, Two-pole, Two-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH224FGK
UPC
786685176727
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
43 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature: 200 A amperage rating and 240 V two-pole design. Business Impact: Supports high-load motor circuits with minimal voltage drop, reducing protection mistakes and downtime. Application: Suitable for machine tools, conveyors, pumps, and HVAC drives in indoor plants. Feature: Class H fuse provision with fusible without neutral configuration. Business Impact: Enables selective coordination and rapid disconnection on fault events, limiting collateral damage and facilitating compliance with protective device coordination. Application: Motor starter panels and power distribution centers in manufacturing cells. Feature: NEMA 1 painted steel enclosure with enhanced visible blade. Business Impact: Delivers durable indoor protection against dust and incidental impacts while allowing quick status checks, lowering maintenance time. Application: Control panels in busy shop floors, machine rooms, and low-humidity environments. Feature: UL Listed and NEC 230.62 barrier compliance. Business Impact: Simplifies approvals and audit readiness, reducing engineering hours and regulatory risk. Application: OEM panel builds, retrofit projects, and regulated facilities with stringent safety requirements. Feature: Compact footprint and clear labeling with 30 in depth, 18 in width, and 9.5 in height. Business Impact: Improves installation flexibility and fit within existing enclosures, accelerating project timelines. Application: Replacement in legacy systems, modular skids, and new equipment startups. Feature: 200 A rating, two wires, 2-pole design for 240 V systems, with UL listed protection and robust enclosure. Business Impact: Delivers reliable, scalable motor control protection with long service life, reducing total cost of ownership. Application: Industrial automation racks, packaging lines, and process equipment.
