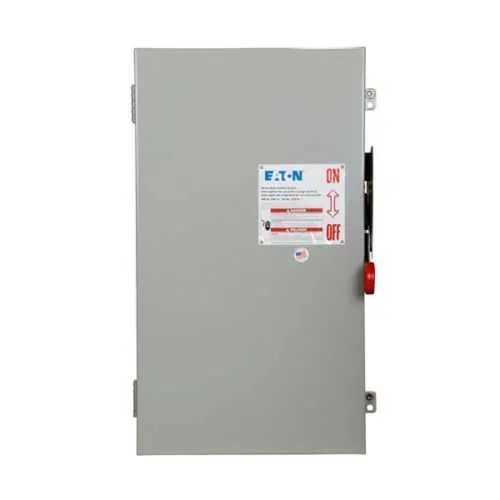

Eaton DH224FGKV Fusible Safety Switch - UL Listed
Part Number: DH224FGKV
Quick Summary
The Eaton DH224FGKV fusible safety switch provides reliable power interruption for two-pole, 240V motor circuits in industrial panels. This design helps address downtime and mis-wiring concerns that plague maintenance teams and project engineers alike. UL Listed with NEC 230.62 barrier compliance and a rugged NEMA 3R enclosure, it supports safe outdoor and harsh environments. The solution combines heavy-duty protection with straightforward installation, delivering cost-effective, compliant motor control protection and lifecycle savings for industrial facilities and industrial automation panels.
Product Information
Extended Description
DH224FGKV Eaton: Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Two-pole, Two-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH224FGKV
UPC
786685972701
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
51 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Feature: 200 A amperage rating with two-pole operation and fusible configuration (without neutral). Business Impact: Provides robust fault isolation for demanding motor loads while simplifying conductor sizing and fuse protection planning. Application: Suitable for 1-3 phase applications up to 60 hp depending on fuse type and time-delay characteristics in a 240 V system. The result is improved uptime and reduced fuse-related maintenance costs. Long-tail keywords: 200A safety switch, fusible without neutral, two-pole industrial switch. Feature: NEMA 3R, painted galvanized steel enclosure. Business Impact: Protects against weather, dust, and corrosion for outdoor installations, increasing service life and reducing enclosure maintenance. Application: Outdoor motor control and protected outdoor panels in harsh environments. Long-tail keywords: NEMA 3R enclosure, outdoor electrical protection. Feature: Class H fuse provision. Business Impact: Enables rapid fuse replacement and consistent interrupting ratings, lowering commissioning time and improving safety margins. Application: Industrial safety switch assemblies with standard time-delay fuses. Long-tail keywords: Class H fuse, time delay. Feature: HP rating up to 60 hp (1,3Ph @ Std fuse/time delay/250 Vdc). Business Impact: Supports higher horsepower motors without changing switchgear, reducing total cost of ownership. Application: Motor control in production lines and conveyors. Long-tail keywords: HP rating max, motor protection. Feature: UL Listed and NEC compliant barrier. Business Impact: Delivers regulatory alignment and safer panel boundaries, reducing compliance risk. Application: Panel builds requiring certified protection and clear barrier provisions. Long-tail keywords: UL Listed, NEC barrier compliance. Feature: 30 in length, 18 in width, 9.5 in height, two-wire configuration with #6-250 kcmil Cu/Al conductors. Business Impact: Clear footprint planning and wiring flexibility for large conductor feeds, speeding installation and alignment with electrical drawings. Application: Large conductor terminations in industrial switchgear. Long-tail keywords: product dimensions, conductor size.
Get a Quick Quote for a Eaton DH224FGKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH224FGKV?
Enquire Now
FAQs
Begin by confirming the panel readiness for a two-pole, 200A fusible switch and verify conductor sizes up to #6-250 kcmil Cu/Al. Mount the enclosure on a stable surface, connect two wires as specified, install Class H fuses, and ensure the NEC 230.62 barrier is present. Follow lockout/tagout procedures during installation and test operation before commissioning.
The unit is rated for 200A with HP ratings listed as 15, 25 hp and 15, 60 hp for 1 and 3-phase configurations at 240 V, depending on fuse type and time-delay characteristics. This makes it suitable for medium to large motor loads in production lines while maintaining robust protection.
Yes. The DH224FGKV uses a NEMA 3R enclosure and is designed for outdoor and protected indoor applications. The painted galvanized steel enclosure provides corrosion resistance, while the NEMA 3R rating supports weather and environmental sealing for reliable operation in challenging sites.
This safety switch is UL Listed and designed to meet NEC 230.62 barrier requirements, supporting safe installation in code-compliant electrical assemblies. Its rugged enclosure and protective features align with typical industrial standards for panels and motor control circuits, offering assurance during audits and safety inspections.
The DH224FGKV reduces downtime through reliable interruption of motor circuits, lowers wiring complexity with a fusible without neutral configuration, and minimizes maintenance costs with a durable NEMA 3R enclosure. Over the lifecycle, this translates to fewer emergency repairs, simpler spares management, and improved overall equipment reliability.
