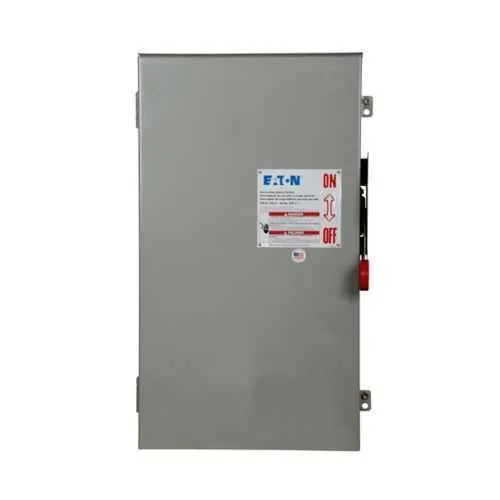

Eaton DH224FRK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH224FRK
Quick Summary
Eaton DH224FRK heavy duty fusible safety switch provides reliable line protection for 3-phase motor circuits in industrial settings. Too often engineers wrestle with downtime caused by undersized protection or slow fault isolation. UL Listed for electrical safety and housed in a NEMA 3R, painted galvanized steel enclosure, this model supports robust protection with Class H fuse provisions and a 200 A, 240 V rating. The design aligns with common industrial feeders, enabling simpler compliance, reduced maintenance, and lower total cost of ownership while delivering consistent uptime and safer operation.
Product Information
Extended Description
DH224FRK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 200 A, NEMA 3R, Painted galvanized steel, Two-pole, Two-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH224FRK
UPC
786685177533
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
51 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature: Heavy-duty fusible safety switch with 200 A rating, 240 V operation, two-pole, fusible without neutral, and enhanced visible blade. Business Impact: Delivers reliable overcurrent protection and clear fault indication, minimizing unplanned downtime in motor-driven lines. Application: Ideal for motor feeders in conveyors, packaging lines, and process equipment where fast fault isolation matters. Feature: UL Listed with a NEMA 3R enclosure in painted galvanized steel. Business Impact: Ensures electrical safety compliance and durable service in indoor/outdoor environments, reducing corrosion risk and maintenance costs. Application: Outdoor switchgear housings and harsh plant floors where weather, dust, and moisture are concerns. Feature: Class H fuse provision and fuse configuration described as fusible without neutral, plus time-delay capability. Business Impact: Supports precise protection sizing and coordination with standard fuses, improving safety margins and downtime management. Application: Systems requiring reliable trip characteristics for motor starting surges and short-circuit events. Feature: Conductor compatibility with #6-250 kcmil Cu/Al. Business Impact: Enables direct interconnection to large feeders without custom adapters, lowering installation time and error potential. Application: Main feeders and feeder panels feeding high-current motors. Feature: Physical footprint and weight—30 in length, 18 in width, 9.5 in height, and 51 lb weight; includes 25-000 warranty terms. Business Impact: Predictable installation planning and predictable lifecycle costs, with a one-year warranty from installation or 18 months from shipment. Application: Suitable for plant upgrades and retrofits where space and service intervals are planned.
