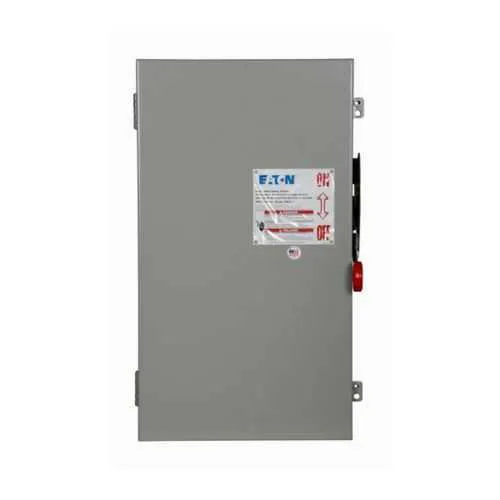

Eaton DH224NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH224NGK
Quick Summary
DH224NGK is a heavy-duty fusible safety switch that provides reliable motor protection and safe isolation for industrial power distribution. In demanding environments, downtime and improper protection configurations drive unscheduled outages and safety risks. This unit carries UL Listed certification, NEC 230.62(C) compliant barrier, and a NEMA 1 painted-steel enclosure for rugged, code-compliant protection. Designed for two-pole, three-wire circuits at 240 V, it supports up to 200 A and a range of HP ratings, helping maximize uptime. For maintenance teams and OEMs, this switch offers straightforward installation, effective fault isolation, and compatibility with standard fuses and time-delay devices—reducing integration time in control panels and motor starter assemblies.
Product Information
Extended Description
DH224NGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 200 A, NEMA 1, Painted steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH224NGK
UPC
782113206646
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
43 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature → Business Impact → Application: The DH224NGK provides a heavy-duty fusible switch with a neutral line, rated for 200 A at 240 V, enabling robust motor protection and safe power isolation in demanding environments. This configuration reduces arc-flash risk and motor damage, delivering tangible uptime improvements for conveyors, pumps, and fans in manufacturing floors. The enhanced visible blade enables quick status checks, cutting maintenance time and minimizing mis-wiring during panel maintenance or upgrades. In practice, technicians can diagnose faults faster, improving mean time to repair (MTTR) and minimizing production interruptions. The NEMA 1 painted-steel enclosure, combined with Class H fuses, offers durable indoor protection and reliable performance in busy control rooms and machine cells. Compatibility with standard fuses and time-delay devices simplifies upgrade paths and lowers spare-part inventory strains. UL Listed and NEC 230.62(C) barrier compliance provide regulatory assurance, reducing compliance risk during audits and new installations. The compact footprint (30 in depth, 18 in width, 9.5 in height) with a 43 lb weight supports straightforward mounting in existing enclosures and control panels, enabling rapid integration in new line builds or retrofits.
