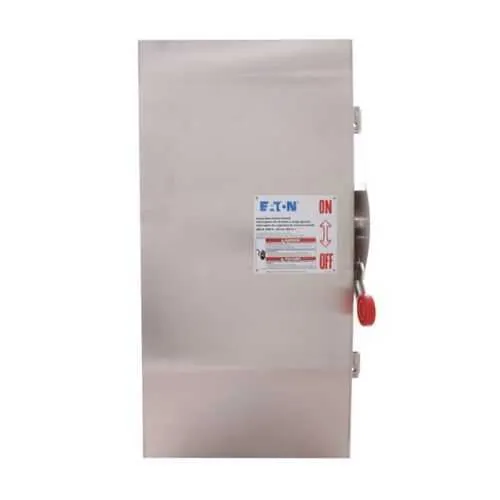

Eaton DH224NWK316 heavy duty fusible safety switch - NEMA 4X
Part Number: DH224NWK316
Quick Summary
The Eaton heavy duty fusible safety switch is a robust 200 A isolation device designed to protect industrial power circuits and control panels. It helps engineers prevent costly equipment damage by enabling rapid fault isolation even in harsh environments. UL Listed, NEC barrier compliant, and housed in a corrosion-resistant NEMA 4X enclosure, this unit is built to endure washdowns and exposure to demanding conditions. Its neutral-enabled fusible configuration supports three-wire 240 V systems while delivering reliable performance with reduced maintenance and longer service life. For projects prioritizing uptime, safety, and compliant protection, this switch integrates smoothly with standard Eaton and third-party control gear.
Product Information
Extended Description
DH224NWK316 Eaton: Eaton Custom single-throw fused safety switch, Corrosion resistant, enhanced visible blade, 200 A, NEMA 4X, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc), #6-300 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH224NWK316
UPC
782116489787
Product Length/Depth
37.5 in
Product Height
11.5 in
Product Width
19 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
15, 25 hp/15, 60 hp/40 hp (1,3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
The enclosure uses 304 stainless steel and a NEMA 4X rating to resist corrosion and washdowns, reducing maintenance cycles and extending service life in demanding environments such as food processing and chemical plants. This feature translates to lower lifecycle costs and greater system availability, especially where outdoor or splash-prone installations are common. The device provides a 200 A amperage rating at 240 V in a two-pole, three-wire configuration with a neutral, enabling safe isolation of powered machinery and quick fault clearance, which minimizes unplanned downtime and protects critical equipment. With a Class H fuse provision and fusible with neutral configuration, the switch delivers reliable short-circuit protection and orderly power-down sequences for PLCs, conveyors, and process lines. The robust UL Listed status and NEC barrier compliance further reassure installers and end users about code compliance and risk mitigation, supporting faster approvals and project timelines. Its dimensions (37.5 in length, 11.5 in height, 19 in width) and 55 lb weight offer a compact yet sturdy footprint that fits standard control gear enclosures, simplifying retrofit and new-install projects. The unit’s 240 V three-wire, neutral design aligns with common industrial power distributions and reduces wiring complexity during panel assembly, while the compatibility with standard control devices and cables (#6-300 kcmil Cu/Al) decreases installation time and material costs. In field practice, operators report improved reliability, easier spare-part sourcing, and clearer protection coordination thanks to the unit’s explicit fuse characteristics, visible blade, and corrosion-resistant construction.
