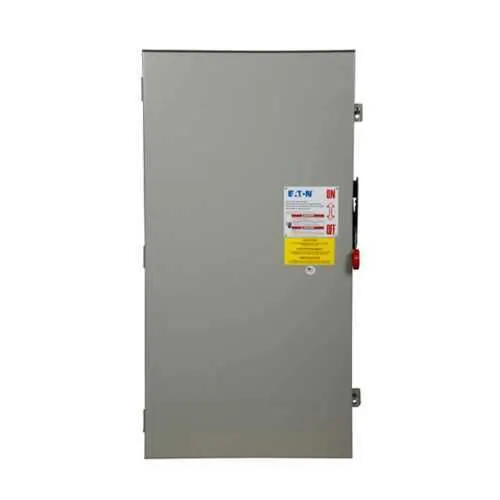

Eaton DH225NGKV Heavy Duty Fusible Switch - UL Listed
Part Number: DH225NGKV
Quick Summary
Eaton heavy duty fusible safety switch is designed to safely interrupt power in commercial and industrial control panels. This device provides reliable isolation for 2-pole, 3-wire circuits up to 400 A at 240 V, helping prevent arc flash incidents during maintenance. The enclosure is a NEMA 4 painted steel assembly, offering weather-resistance and physical protection in demanding environments. UL Listed with NEC 230.62 compliant barrier, this switch supports safer installation practices and verifiable compliance. Its fusible with neutral configuration and Class H fuse provision streamline protective coordination and minimize downtime. For systems requiring tight space planning, the 57 in depth, 27 in width, and 11 in height footprint support flexible cabinet integration, alongside straightforward wiring for Cu/Al conductor classes.
Product Information
Extended Description
DH225NGKV Eaton: Eaton Enhanced visible blade single-throw safety switch, 400 A, NEMA 4, Painted steel, Neutral, Two-pole, Three-wire, 240 V, Max Hp: 50, 125, 50 hp (3PH @ Std fuse/time delay/250 Vdc), (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH225NGKV
UPC
786685972954
Product Length/Depth
57 in
Product Height
11 in
Product Width
27 in
Product Weight
123 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 4
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
400A
HP rating - max
50, 125, 50 hp (3PH @ Std fuse/time delay/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Feature: 400 A amperage rating with fusible switch and neutral provision. Business Impact: Enables safe overload protection and coordinated fault clearance, reducing downtime and extending motor life in industrial protection schemes. Application: Ideal for process panels and motor control centers where reliable isolation is critical. The DH225NGKV supports long-term reliability in harsh environments, improving maintenance planning and risk mitigation. Feature: NEMA 4 enclosure with painted steel construction. Business Impact: Delivers weather-resistant, dust-tight protection for outdoor and wet-location installations, lowering corrosion risk and service calls. Application: Suitable for outdoor substations and equipment rooms with challenging environmental conditions. Feature: UL Listed and NEC 230.62 compliant barrier. Business Impact: Ensures regulatory compliance and safer, auditable installations, minimizing engineering rework and enforcement costs. Application: Essential for projects requiring strict safety documentation and traceable protection. Feature: Fusible with neutral configuration and Class H fuse provision. Business Impact: Supports selective coordination and fast fault clearing, reducing arc-flash exposure during servicing. Application: Critical for up-stream protection in multi-motor systems and critical industrial processes. Feature: 57 in depth, 27 in width, 11 in height with two-pole, three-wire design. Business Impact: Facilitates cabinet integration and space planning while maintaining robust fault protection. Application: Fits in compact switchgear deployments and retrofit projects, improving installation efficiency. Feature: 400 A amperage rating and 240 V operation with 3-wire grounding. Business Impact: Delivers scalable protection for heavy loads and mixed conductor types (Cu/Al), improving system uptime. Application: Industrial machinery drives and high-current utility panels benefit from this rating. Feature: Heavy duty HDSS catalog notes. Business Impact: Clear designation aids procurement and field service teams, reducing misapplication risk. Application: End-user documentation and maintenance workflows benefit from standardized terminology.
