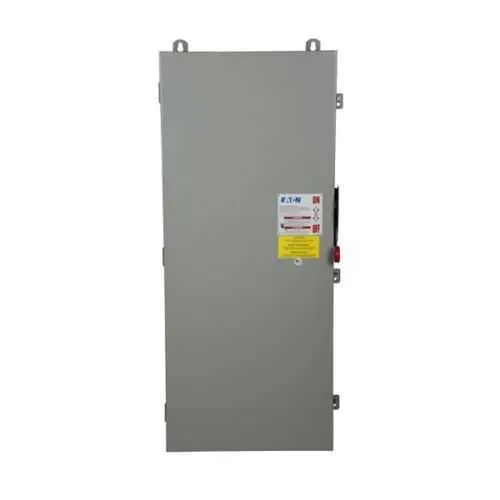

Eaton DH226FGKV Heavy duty fusible safety switch - UL Listed
Part Number: DH226FGKV
Quick Summary
Eaton heavy duty fusible safety switch isolates power in industrial motor and process lines. Operators face downtime, complicated maintenance windows, and compliance gaps that threaten uptime and safety; this HDSS is designed to reduce risk and simplify service with clear visibility and rugged construction. The unit carries UL Listed certification, NEC 230.62 compliant barriers, and a NEMA 4 enclosure, making it suitable for indoor or harsh outdoor environments. With a two-pole design, 600 A rating, and a 240 V supply, it supports high-demand feeders while meeting code requirements. This solution also aligns with broader Eaton safety and protection families, delivering reliable protection, reduced spare-part costs, and faster diagnostics across plant sites.
Product Information
Extended Description
DH226FGKV Eaton: Eaton Enhanced visible blade single-throw safety switch, 600 A, NEMA 4, Painted steel, Class H, Two-pole, Two-wire, 240 V, Max Hp: 75, 200 hp (3PH @ Std fuse/time delay), (1)#2-(1)600 kcmil and (1)#1/0-(1)750 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH226FGKV
UPC
786685973067
Product Length/Depth
12.76 in
Product Height
63 in
Product Width
23 in
Product Weight
157 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 4
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
600A
HP rating - max
75, 200 hp (3PH @ Std fuse/time delay)
NEMA rating
NEMA 1
Voltage rating
240V
Eaton Specification Sheet - DH226FGKV
Selling Policy 25-000 - Distribution and Control Products and Services
600 A amperage rating with 75/200 hp (3PH @ Std fuse/time delay) provides robust fault protection. This translates to minimized motor damage and safer startup sequences in heavy-load applications such as presses or conveyors, enabling reliable operation of large motors and feeders. The NEMA 4 painted steel enclosure enhances outdoor and wash-down resistance, reducing enclosure maintenance and corrosion risk in harsh environments. Fuse class provision Class H and fusible without neutral support safer shutdown and better selective coordination, helping to prevent nuisance trips and protecting critical equipment. Two-pole, two-wire design simplifies wiring, speeds installation, and accommodates large conductors up to 1/0-750 kcmil Cu/Al, enabling scalable feeder connections for plant expansions. With dimensions of 12.76 in depth, 63 in height, and 23 in width, plus a 157 lb weight, planning your space and handling is straightforward. UL Listed compliance and NEC barrier support streamline audits and installation across regulated facilities, giving maintenance teams confidence in long-term reliability and safety.
