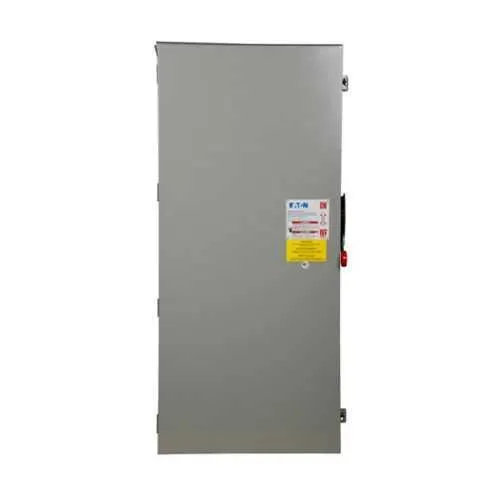

Eaton DH227FRK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH227FRK
Quick Summary
Eaton heavy duty fusible safety switch provides reliable circuit protection for high-current industrial mains, isolating power in motors and feeders. When downtime or arc flash risk threatens production, robust protection choices like Class L fusing and a rugged NEMA 3R enclosure help you stay online. UL Listed certification, a NEMA 3R enclosure, and Class L fuse provide compliance and reliability for harsh environments and outage-sensitive facilities. In practice, this translates to safer operation, reduced maintenance, and predictable lifecycle costs within a broader protection strategy. This solution also aligns with industrial protection devices and switchgear integration, delivering business value through improved uptime and safer, compliant installations.
Product Information
Extended Description
DH227FRK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 800 A, NEMA 3R, Painted galvanized steel, Class L, Two-pole, Two-wire, 240 V, Max Hp: 100, 250 hp (3PH @ Std fuse/time delay), (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH227FRK
UPC
786685177540
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
163 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
800A
HP rating - max
100, 250 hp (3PH @ Std fuse/time delay)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Rugged enclosure and corrosion resistance lead to longer service life and lower maintenance in outdoor or damp environments. The painted galvanized steel housing complements the NEMA 3R rating, protecting critical components from weather, dirt, and impact while preserving performance over time. An enhanced visible blade improves operator awareness during routine operation and maintenance, reducing the risk of accidental energization and speeding up fault isolation in the field. This translates to safer work practices and faster troubleshooting, with measurable uptime gains in critical production lines. The dual-pole, two-wire design simplifies wiring and commissioning, minimizing installation time and reducing potential errors in busy panels. Compatibility with standard fusing and the Class L fuse provision ensures predictable protection coordination, supporting compliance with safety standards while enabling cost-efficient spare parts management. The enclosure supports substantial conductor sizes—up to four #1/0 to (4)750 kcmil Al—facilitating high-current connections in a compact footprint and reducing cabinet count in large systems. With 57.5 in length, 12.38 in height, and 27.5 in width, installers can plan space allocation precisely, improving overall plant layout and maintenance access.
Get a Quick Quote for a Eaton DH227FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH227FRK?
Enquire Now
FAQs
The DH227FRK is a two-pole, two-wire fusible safety switch with Class L fuse provision and fusible without neutral configuration. It accepts robust conductor sizes up to four #1/0 to (4)750 kcmil aluminum, enabling flexible, high-current terminations while keeping wiring manageable. This simplifies early procurement decisions and reduces on-site modification time during panel integration.
With an 800 A amperage rating at 240 V, the DH227FRK accommodates motor feeders and high-load circuits without frequent fuse changes. It supports up to 100 or 250 hp in three-phase service depending on fuse selection, offering design flexibility for diverse motor applications while maintaining safe, coordinated protection and quick fault isolation.
Yes. The DH227FRK carries UL Listed certification and uses a NEMA 3R enclosure, making it appropriate for outdoor and harsh indoor environments. The painted galvanized steel construction resists corrosion, while the enhanced blade visibility aids safe operation. These features help meet regulatory requirements and support reliable long-term performance.
Eaton provides a standard warranty of one year from installation or eighteen months from shipment, whichever occurs first. This, combined with UL Listed and NEMA 3R ratings, supports maintenance planning and budget forecasting. Access to Eaton product sheets and catalogs also aids in ongoing compliance and parts availability.
Key considerations include verifying the Class L fuse coordination, ensuring the fusible without neutral configuration matches the control scheme, and confirming conductor sizes up to four #1/0 to (4)750 kcmil Al fit the terminals. The Enhanced visible blade aids status checks, and the NEMA 3R enclosure protects the assembly in exposed environments, supporting safe, compliant operation.
