Eaton DH227NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH227NGK
Quick Summary
Eaton DH227NGK Heavy Duty Fusible Safety Switch is a rugged disconnect device designed to protect large three-phase power circuits in demanding industrial environments. This solution helps minimize unplanned downtime by providing reliable fusing and safe isolation during maintenance. UL Listed, NEC 230.62 compliant barrier, and a NEMA 1 painted steel enclosure ensure code-worthy protection in indoor panels. Designed for high reliability, it supports 800 A, 240 V with two-pole, three-wire configuration and a fusible-with-neutral arrangement, delivering safe stop/start for motor feeders. By combining robust construction with standardized durability, it reduces maintenance costs and improves safety while enabling straightforward installation and serviceability in demanding facilities.
Product Information
Extended Description

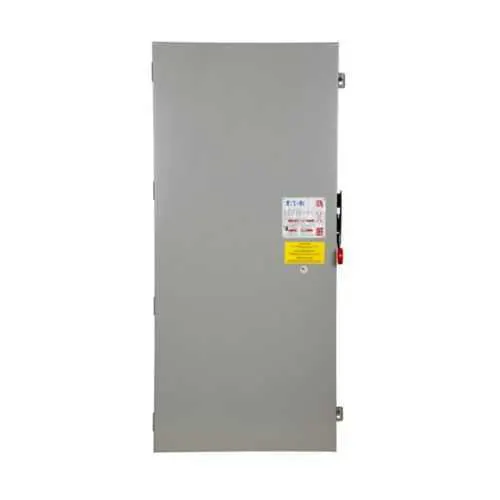

DH227NGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 800 A, NEMA 1, Painted steel, Class L, Two-pole, Three-wire, 240 V, Max Hp: 100, 250 hp (3PH @ Std fuse/time delay), (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH227NGK
UPC
782113589664
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
160 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
3-Phase hp ratings shown are grounded B phase ratings; UL listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class L
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
800A
HP rating - max
100, 250 hp (3PH @ Std fuse/time delay)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
800 A amperage rating and 240 V operation translate to a single device capable of handling large motor loads and feeder circuits without oversizing. This results in fewer components, lower total installed cost, and improved coordination with upstream protective devices. Ideal for service entrances or main motor feeders in manufacturing lines, packaging, and processing facilities. Heavy-duty NEMA 1 enclosure with painted steel provides indoor protection against dust and incidental contact, improving enclosure integrity and reducing risk of equipment contamination. This design supports easier installation in standard control panels and minimizes field modifications, saving time during commissioning. Class L fuse provision and fusible with neutral configuration deliver safe, code-compliant shutdowns and predictable fault clearing for three-wire systems in harsh industrial environments. The two-pole, three-wire arrangement simplifies wiring schemes and enhances protection coordination with upstream devices, reducing wiring errors. UL Listed and NEC barrier compliance reinforce regulatory adherence, while the compact footprint and modular lug design streamline panel layout and future upgrades. Conductor capacity supports up to four #1/0 through four 750 kcmil aluminum conductors, enabling scalable motor and feeder connections without upgrading enclosure hardware. Overall, the DH227NGK combines reliability, ease of maintenance, and manufacturing-ready compatibility for busy facilities.
