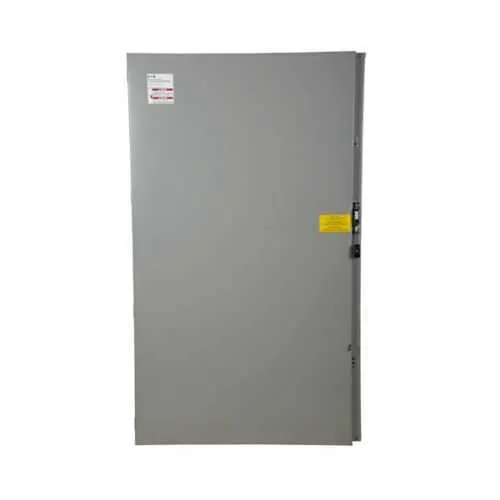

Eaton DH228FGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH228FGK
Quick Summary
Eaton DH228FGK heavy duty fusible safety switch provides reliable power isolation for large industrial systems. Engineers often face downtime, regulatory pressure, and maintenance challenges when upgrading switchgear in demanding environments. UL Listed, NEC 230.62 (C) compliant barrier, and a NEMA 3R enclosure ensure safe, code-friendly operation outdoors or in exposed locations. With a 240 V, 1200 A rating and a Class L fuse configuration, this unit delivers robust protection without neutral, simplifying wiring and fault response. The design supports easy installation, field serviceability, and long service life, helping OEMs and end users reduce total cost of ownership while maintaining regulatory compliance.
Product Information
Extended Description
DH228FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 1200 A, NEMA 3R, Painted galvanized steel, Class L, Fusible without neutral, Two-pole, Two-wire, 240 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH228FGK
UPC
786685176734
Product Length/Depth
19.95 in
Product Height
70.32 in
Product Width
41.46 in
Product Weight
455 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH228FGK
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: High-current rating at 1200 A delivers decisive isolation for large motor loads. Business Impact: minimizes fault propagation and equipment damage during maintenance, reducing downtime and maintenance costs. Application: conveyor systems, pumps, and presses in steel, chemical, and heavy process environments. Feature: NEMA 3R enclosure with painted galvanized steel. Business Impact: outdoor-ready protection against rain, dust, and corrosion, improving uptime in harsh conditions. Application: outdoor substations and exposed packaging lines. Feature: Fuse class provision Class L and fusible without neutral. Business Impact: simplifies wiring while ensuring selective, fast fault clearing for safety-critical 240 V circuits. Application: main distribution panels and motor control centers. Feature: Two-pole, two-wire configuration for straightforward wiring and reliable isolation. Business Impact: reduces installation time and potential wiring errors, accelerating commissioning. Application: retrofit projects and new builds in industrial facilities. Feature: UL Listed with NEC 230.62 (C) compliant barrier. Business Impact: ensures regulatory acceptance and safer installations, reducing risk during inspections. Application: code-driven installations across manufacturing and processing plants. Feature: Easy installation and serviceability design. Business Impact: minimizes field labor, lowers downtime, and improves maintenance planning. Application: OEM assembly, service contracts, and retrofit programs.
Get a Quick Quote for a Eaton DH228FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH228FGK?
Enquire Now
FAQs
This unit is designed for 240 V, two-pole operation with fusible without neutral. Plan for a NEMA 3R enclosure configuration, mount on a solid surface, and maintain clearances per local code. Use UL Listed components and NEC barrier guidance to ensure safe isolation points, straightforward wiring, and compliant access for maintenance.
Key specs include 1200 A amperage rating, 240 V voltage rating, two-pole configuration with two wires, Class L fuse provision, and fusible without neutral. It is UL Listed and designed for NEMA 3R environments, providing dependable protection for high-current circuits in demanding facilities.
Yes. The DH228FGK uses a painted galvanized steel enclosure rated for NEMA 3R, making it suitable for outdoor or semi-exposed locations. This enclosure protects against rain, dust, and corrosion, helping maintain performance and extending service life in challenging industrial settings.
The DH228FGK is UL Listed and features a NEC 230.62 (C) compliant barrier, aligning with essential safety and installation standards. These certifications support code-compliant installations in commercial and industrial facilities and facilitate safer audits and inspections.
By delivering reliable isolation for large loads with durable NEMA 3R protection, the DH228FGK reduces unplanned downtime and maintenance costs. Its straightforward wiring, field serviceability, and long service life contribute to lower total cost of ownership in retrofit and new-build projects.
