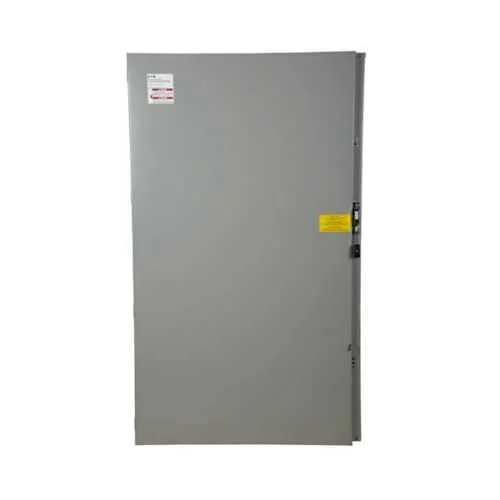

Eaton DH228NGK heavy duty fusible safety switch - UL Listed
Part Number: DH228NGK
Quick Summary
The Eaton DH228NGK heavy duty fusible safety switch is designed to safely isolate 1200 A feeders in industrial installations. Maintenance teams often struggle with safe lockout, reliable fault isolation, and downtime during routine maintenance in harsh environments. This unit offers a rugged NEMA 3R enclosure, painted galvanized steel, and Class L fuse provision to meet demanding reliability and protection standards. It carries UL Listed certification and NEC 230.62(C) compliant barrier, with additional NEMA 3R suitability for outdoor or damp/dust-prone locations. Sized at 72 in by 48 in by 21 in, it supports (4) #1/0 to (4) 750 kcmil aluminum conductors and simplifies wiring for high-amperage applications. For project teams, this translates to improved safety, faster maintenance, and lower lifecycle costs through predictable performance.
Product Information
Extended Description
DH228NGK Eaton: Eaton Heavy duty single-throw fused safety switch, 1200 A, NEMA 3R, Painted galvanized steel, Class L, Fusible with neutral, Two-pole, Three-wire, 240 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH228NGK
UPC
786685178073
Product Length/Depth
72 in
Product Height
21 in
Product Width
48 in
Product Weight
455 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
High amperage rating of 1200 A enables a single switch to protect large feeders, reducing the need for multiple devices and simplifying protection coordination. Fewer components translate to lower maintenance costs, tighter spare parts inventories, and faster fault isolation in critical lines such as motor feeders and processing lines. The fusible with neutral configuration supports proper neutral return paths, improving system reliability and fault clearing without introducing unbalanced currents that can damage equipment. This 3-wire 240V design simplifies field wiring and panel routing, reducing install time and increasing installer confidence with clear wiring diagrams. The NEMA 3R, painted galvanized steel enclosure provides weather and corrosion resistance for outdoor or damp environments, extending service life and lowering outdoor maintenance requirements. UL Listed and NEC 230.62(C) compliant barrier offer regulatory assurance and safer maintenance routines, helping audits and safety programs. Large conductor capacity—up to four #1/0 to four 750 kcmil aluminum conductors—facilitates future upgrades and minimizes rework for evolving plant needs.
Get a Quick Quote for a Eaton DH228NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH228NGK?
Enquire Now
FAQs
The DH228NGK requires a dedicated, level mounting surface to accommodate its large footprint of 72 in length, 48 in width, and 21 in height, with an overall weight around 455 lb. Installers should plan for 3-wire, 240V wiring and ensure clear access for servicing. The unit supports a broad conductor range and uses a NEMA 3R enclosure suitable for outdoor or damp environments.
Key specs include a 1200 A amperage rating, 240 V voltage rating, two-pole configuration with three wires, and fusible with neutral. The device uses Class L fuses and is UL Listed, with a NEC 230.62(C) compliant barrier to support safe and code-compliant operation in industrial facilities.
Yes. The DH228NGK features a NEMA 3R enclosure with painted galvanized steel construction, designed for outdoor or damp/dust-prone locations. This enclosure, combined with its barrier compliance, provides reliable protection against weathering and contaminants while maintaining safe operation and maintenance access in challenging environments.
The DH228NGK is UL Listed and incorporates NEC 230.62(C) compliant barrier design. These certifications address electrical safety, installation integrity, and regulatory adherence, helping facilities meet safety programs and pass compliance audits with confidence.
Warranty terms follow Eaton's policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. Support includes standard product documentation, access to Eaton specification sheets, and confirmed compatibility with large feed applications to minimize downtime and maximize lifecycle value.
