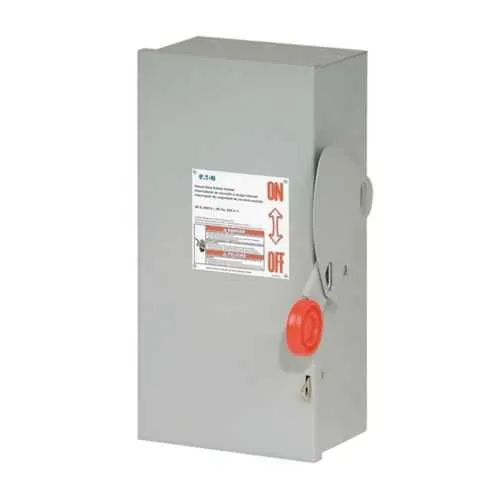

Eaton DH261FGK Fusible Safety Switch - UL Listed
Part Number: DH261FGK
Quick Summary
Eaton DH261FGK Fusible Safety Switch isolates 600 V circuits in industrial control panels for safe, quick isolation. Downtime and unsafe switching practices cost you time and maintenance, especially when fuse changes require lockout/tagout. UL Listed; NEC 230.62(C) compliant barrier; NEMA 1 painted steel enclosure ensure durable performance in harsh environments. This solution supports service entrance configurations and lug-kit compatibility, delivering safer operation, easier maintenance, and predictable protection across your automation lines. Designed for reliability, it also aligns with compliance goals while improving overall equipment effectiveness and safety workflows.
Product Information
Extended Description
DH261FGK Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 30 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH261FGK
UPC
782113205465
Product Length/Depth
18 in
Product Height
7.5 in
Product Width
9.5 in
Product Weight
14 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
30A
HP rating - max
7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature → Business Impact → Application: The DH261FGK is a 30 A fusible safety switch rated for 600 V, delivering fast, reliable isolation for motor start-ups and control circuits. The high-current capability minimizes nuisance fuse trips while preserving downstream equipment. Application: ideal for two-pole, two-wire service entrance panels in robotic cells or conveying lines. Feature → Business Impact → Application: The NEMA 1 painted steel enclosure provides rugged indoor protection, resisting dust and minor impact while maintaining enclosure integrity. This translates to longer product life and reduced maintenance cycles in standard factory environments. Application: mount in control cabinets and remote panels where indoor protection is required. Feature → Business Impact → Application: Class H fuse provision with fusible without neutral configuration simplifies sourcing and replacement, accelerating maintenance tasks and reducing downtime. Application: suited for straightforward protection schemes in light to medium-duty industrial controls. Feature → Business Impact → Application: UL Listed and NEC barrier compliant design helps meet regulatory requirements while improving worker safety. Application: equipment guarding in compliance-driven facilities and service entrances. Feature → Business Impact → Application: Lug-kit compatibility for service entrances enables flexible installation, including neutral or ground lug options, supporting future expansion and easier retrofits. Application: retrofit projects and new installations requiring service entrance readiness without custom fabrication.
Get a Quick Quote for a Eaton DH261FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH261FGK?
Enquire Now
FAQs
The DH261FGK is suitable for service entrances and can be installed with neutral or ground lug kits. It is a two-pole, two-wire device rated for 600 V, with a 30 A amperage rating and Class H fuse provision. This design streamlines retrofits and new installations by enabling plug-ready protection without extensive rewiring.
DH261FGK provides a 30 A amperage rating and a 600 V voltage rating. HP ratings include up to 7.5 HP, with 10–15 HP options for single-phase at 480–600 V (TD/600 Vdc), enabling compatibility with a range of motors and drives in mid- to light-industrial applications.
The switch uses a NEMA 1 enclosure made of painted steel, designed for indoor use. Its footprint is 18 inches in length, 7.5 inches in height, and 9.5 inches in width, with an approximate weight of 14 pounds. This provides a compact yet rugged solution for panel-mounted and service-entry installations.
DH261FGK is UL Listed and complies with NEC 230.62(C) barrier requirements. This combination ensures regulatory compliance and enhanced safety in service entrances and control panels, reducing compliance risk during audits and inspections.
The product carries Eaton’s warranty policy: one year from installation or eighteen months from shipment, whichever occurs first. Routine maintenance focuses on fuse replacements and ensuring lug-kit connections remain secure. The design supports quick fuse changes and minimal downtime, improving overall equipment reliability and uptime.
