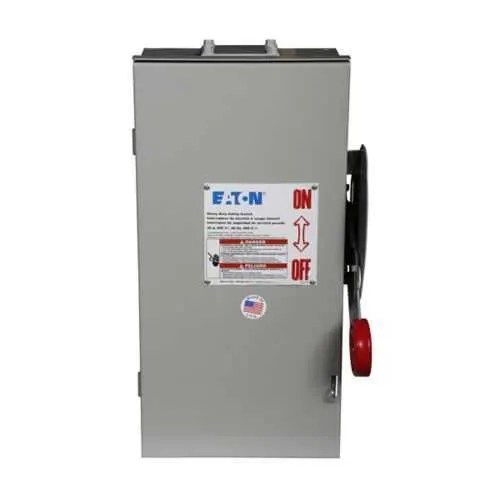

Eaton DH261FRK-CSA Fusible Safety Switch - UL Listed
Part Number: DH261FRK-CSA
Quick Summary
Eaton DH261FRK-CSA fusible safety switch provides reliable motor protection in industrial panels. Many teams struggle with nuisance trips and slow maintenance caused by hard-to-verify status and complex fuse changes. This unit features an enhanced visible blade and a fusible without neutral configuration in a two-pole, 600 V design with Class H fuses, supporting up to 30 A and up to 15 hp on certain voltages. UL Listed and CSA Certified, it carries NEC 230.62 compliant barrier and a rugged NEMA 3R enclosure for dependable indoor or outdoor service. Designed for serviceability and code compliance, it helps keep downtime to a minimum while aligning with procurement standards, improving safety documentation, and reducing total cost of ownership by simplifying stocking and troubleshooting.
Product Information
Extended Description
DH261FRK-CSA Eaton: Eaton Custom single-throw fused safety switch, Enhanced visible blade, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH261FRK-CSA
UPC
786685425313
Product Length/Depth
17 in
Product Height
8.5 in
Product Width
9.5 in
Product Weight
20 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed CSA Certified
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
30A
HP rating - max
7.5, 10 hp/15 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Commercial Distribution, Switching Devices, Volume 2, Tab 1
Eaton Specification Sheet - DH261FRK-CSA
Feature: Heavy-duty fusible safety switch design provides solid protection for motor feeders and control circuits. Business Impact: Delivers reliable disconnection with robust Class H fuse implementation, reducing fault exposure and safeguarding personnel. Application: Ideal for industrial control panels and machine centers where downtime must be minimized and electrical fault isolation is critical. Feature: Enhanced visible blade allows quick status verification without opening the enclosure. Business Impact: Cuts maintenance time and minimizes unnecessary power interruptions, improving line uptime. Application: Daily line checks in manufacturing, where fast confirmation of switch state is valuable. Feature: NEMA 3R painted galvanized steel enclosure offers environmental protection. Business Impact: Enables outdoor and semi-outdoor installations with resistance to weather, dust, and moisture. Application: Outdoor pump stations, conveyors, and yard equipment where rugged enclosure performance matters. Feature: Electrical ratings of 30 A and 600 V with two-pole operation support up to 7.5–15 hp (1PH @480/600 V). Business Impact: Aligns with standard motor loads while meeting code requirements, reducing over-engineering and inventory complexity. Application: Light-to-medium horsepower drives in manufacturing and processing. Feature: UL Listed and CSA Certified with NEC 230.62 barrier compliance. Business Impact: Streamlines procurement, simplifies audits, and supports compliant system integration. Application: Projects requiring certified protection devices in regulated environments. Feature: Fusible without neutral, 2-wire configuration, and compact footprint (17 in L × 9.5 in W × 8.5 in H; 20 lb). Business Impact: Easier integration into existing control cabinets and shorter installation timelines. Application: Retrofit or new build in space-constrained panels.
