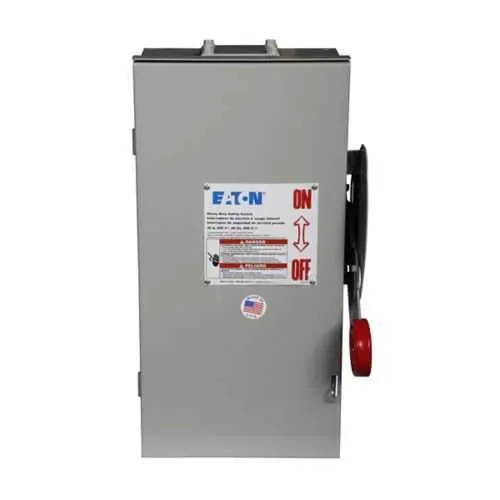

Eaton DH261FRKG-CSA Heavy Duty Fusible Safety Switch CSA
Part Number: DH261FRKG-CSA
Quick Summary
The Eaton DH261FRKG-CSA is a heavy-duty fusible safety switch designed for industrial control and motor protection. This device helps minimize downtime and wiring errors by delivering a robust two-pole disconnect rated at 30A and 600 V for demanding environments. It features an enhanced visible blade and a NEMA 3R enclosure in painted galvanized steel, with a Class H fuse configuration that is fusible without neutral. CSA Certified and UL Listed, with NEC 230.62 barrier compliance, these certifications support compliance in regulated facilities and design standards. For system integrators and maintenance teams, the unit offers compatibility with #14-#2 Cu/Al conductors and straightforward installation, delivering measurable cost and time savings in panel builds and field retrofits.
Product Information
Extended Description
DH261FRKG-CSA Eaton: Eaton Custom single-throw fused safety switch, Enhanced visible blade, 30 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 7.5, 10 hp/15 hp, #14-#2 Cu/Al, Additional Ground
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH261FRKG-CSA
UPC
786689908058
Product Length/Depth
16.27 in
Product Height
7.75 in
Product Width
8.12 in
Product Weight
17 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
CSA Certified UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Amperage Rating
30A
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature: 30A amperage rating, 600 V voltage rating, two-pole, fusible without neutral. Business Impact: Provides robust motor protection and a clear disconnect path, reducing fault duration and equipment damage while simplifying wiring schemes. Application: Ideal for control panels and equipment disconnects in manufacturing and processing facilities. The combination supports reliable performance under peak loads and aligns with common industrial feeders. Feature: Enhanced visible blade for quick status checks. Business Impact: Accelerates preventive maintenance and routine inspections, lowering uptime and labor costs. Application: Field service and commissioning in rugged environments where rapid confirmation of switch state matters. Feature: NEMA 3R enclosure with painted galvanized steel. Business Impact: Delivers corrosion resistance and weather protection for indoor and outdoor installations, reducing enclosure maintenance. Application: Outdoor substations, washdown areas, and exposed equipment bays. Feature: Fuse class provision Class H and fusible without neutral configuration. Business Impact: Ensures appropriate protection without neutral interconnections, simplifying select-and-replace procedures and improving safety margins. Application: Industrial drives and machinery where neutral is not required. Feature: Conductor compatibility #14-#2 Cu/Al and two-pole design. Business Impact: Streamlines sourcing and installation with common conductor sizes, enabling faster panel builds and retrofits. Application: New builds and modernization projects across metalworking, packaging, and material handling sectors. Feature: Compliance and certifications CSA Certified, UL Listed, NEC 230.62 barrier. Business Impact: Reduces procurement risk by meeting recognized safety and electrical codes, easing compliance audits. Application: Facilities governed by strict electrical safety standards and corporate risk controls. Feature: Physical and weight specifications (16.27 in length, 8.12 in width, 7.75 in height, 17 lb). Business Impact: Predictable space planning and installation footprint for enclosure layouts. Application: Panel retrofits and new installations with tight mounting tolerances.
Get a Quick Quote for a Eaton DH261FRKG-CSA
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH261FRKG-CSA?
Enquire Now
FAQs
The DH261FRKG-CSA is a two-pole, fusible switch designed for straightforward retrofit into standard control panels. It supports #14-#2 Cu/Al conductors and fits within typical panel mounting footprints, helping minimize wiring changes. When planning installation, verify NEC 230.62 barrier compliance requirements and ensure the NEMA 3R enclosure is suitable for the installation environment, particularly if outdoor or semi-outdoor exposure is anticipated.
The 30A, 600V rating provides a robust disconnect for most medium-load industrial motors and drives, limiting arcing and providing reliable overcurrent protection. This reduces unscheduled downtime and potential motor damage, lowering repair costs and extending asset life. The fusible without neutral configuration simplifies protection schemes and minimizes unnecessary neutral connections, streamlining maintenance.
Yes. The unit uses a NEMA 3R enclosure and painted galvanized steel, delivering corrosion resistance and weather protection suitable for outdoor or semi-exposed installations. This design reduces enclosure maintenance, supports longer service intervals, and helps ensure reliable operation in environments with humidity, rain exposure, or dust.
The DH261FRKG-CSA is CSA Certified and UL Listed, with NEC 230.62 barrier compliance. These certifications verify that the device meets recognized safety and performance standards, facilitating compliance with regulatory audits and reducing procurement risk. For facilities in regulated industries, these attributes help support safety programs and insurance requirements while simplifying supplier qualification.
Deploying the DH261FRKG-CSA can deliver a favorable ROI through reduced downtime from faster status checks via the enhanced visible blade, improved maintenance efficiency, and direct labor savings from easier installation and conductor compatibility. Its durable NEMA 3R enclosure also minimizes outdoor maintenance costs, while compliance certifications reduce audit-related expenses and procurement risk.
