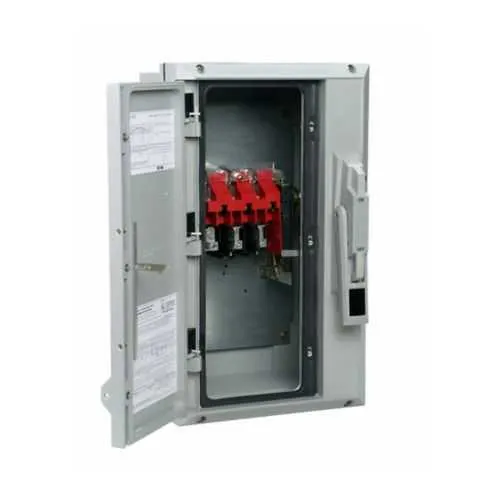

Eaton DH262FCK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH262FCK
Quick Summary
Eaton DH262FCK heavy duty fusible safety switch provides safe, reliable isolation for industrial control panels in demanding settings. Operators often struggle with moisture ingress, corrosion, and slow fault isolation that drive downtime and maintenance costs. This unit is rated at 60A, supports 600 V, and uses Class H fuses in a two-pole, fusible without neutral configuration for straightforward installation. Its NEMA 4X, non-metallic Krydon enclosure delivers superior resistance to washdowns and harsh environments, while UL Listing and NEC 230.62 barrier compliance give peace of mind for safety and regulatory alignment. By combining rugged protection with simple wiring and installation, it helps reduce downtime and streamline maintenance budgets while meeting critical safety standards.
Product Information
Extended Description
DH262FCK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 4X, Non-metallic, KRYDON, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 20, 25 hp/25 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH262FCK
UPC
786685161921
Product Length/Depth
15.46 in
Product Height
19.25 in
Product Width
10.25 in
Product Weight
32 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
Non-metallic, KRYDON
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25 hp/25 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 4X (Non-Metallic)
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Feature 1: 60A, two-pole, fusible without neutral configuration. Business Impact: Provides safe, defined isolation with minimized arc flash exposure and simplified wiring. Application: Suitable for control panels and motor loads in industrial settings. Feature 2: Class H fuse protection in a non-metallic Krydon enclosure. Business Impact: Delivers reliable short-circuit protection while resisting moisture, chemicals, and washdowns. Application: Harsh environments such as food/beverage processing, chemical plants, and outdoor installations. Feature 3: NEMA 4X enclosure with Krydon material. Business Impact: Ensures environmental protection and longevity, reducing maintenance cycles. Application: Environments requiring washdown and corrosion resistance. Feature 4: 600 V rating and up to 25 hp capacity (1PH @480/600 V). Business Impact: Supports broader motor and drive applications, enabling tighter control of downstream equipment. Application: Industrial power distribution and motor control centers. Feature 5: UL Listed and NEC 230.62 barrier compliant. Business Impact: Meets safety and regulatory requirements, streamlining compliance audits. Application: Facility standards, processor lines, and packaging operations. Feature 6: Compact dimensions and weight (15.46 in L, 19.25 in H, 10.25 in W, 32 lb). Business Impact: Facilitates installation in tight enclosures and reduces footprint. Application: Panel closet retrofits and new installations with space constraints.
Get a Quick Quote for a Eaton DH262FCK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH262FCK?
Enquire Now
FAQs
DH262FCK uses a two-pole, fusible without neutral configuration with wiring for #14-2 AWG Cu/Al. It comes in a NEMA 4X Krydon enclosure, with dimensions of 15.46 in L, 19.25 in H, and 10.25 in W, weighing 32 lb for straightforward panel integration.
Yes. The DH262FCK is UL Listed and designed to meet NEC 230.62 barrier requirements for safe separation and compliance in industrial installations.
The switch supports 60A at 600V and a maximum motor horsepower rating of up to 25 hp (1PH @ 480/600 V TD/600 Vdc), making it suitable for a range of motor control applications.
Ideal for harsh environments such as washdown areas, packaging lines, water treatment, and chemical processing facilities, thanks to the NEMA 4X Krydon enclosure and rugged fuse protection.
Eaton provides a standard warranty per policy, typically one year from installation or eighteen months from shipment, with UL Listed certification and accessible catalog specifications for ongoing support.
