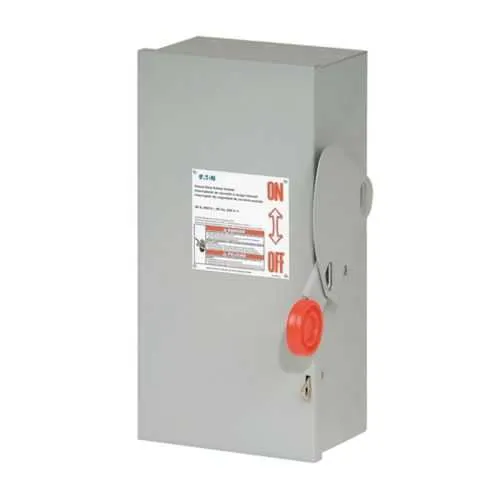

Eaton DH262FGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH262FGK
Quick Summary
Eaton DH262FGK heavy duty fusible safety switch is designed to protect industrial power circuits in service entrances and control panels. When faults occur, you need fast isolation and safe maintenance without sacrificing uptime. This unit features UL Listed protection, a NEMA 1 painted steel enclosure, and a Class H fuse with fusible without neutral design for reliable, code-compliant operation. With service-entrance compatibility and a 60 A rating, it streamlines installation while delivering robust safety. Its wiring accommodates #14-2 Cu/Al, enabling straightforward integration into existing power-distribution setups, driving efficiency, and reducing total cost of ownership over the life of the equipment.
Product Information
Extended Description
DH262FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 20, 25 hp/25 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH262FGK
UPC
782113205960
Product Length/Depth
16 in
Product Height
16 in
Product Width
9 in
Product Weight
16 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25 hp/25 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature → Business Impact → Application: The DH262FGK uses a two-pole, heavy duty fusible safety switch design to deliver safe, rapid isolation of power in service entrances and motor-control panels, reducing downtime and safeguarding personnel during maintenance. This translates to measurable reliability in manufacturing lines and improved worker safety in high-energy environments where quick faulted-circuit isolation is critical. Application: suitable for service entrances and control cabinets with 60 A circuits and up to 600 V, supporting common industrial motor loads up to 25 hp (1PH @480/600 V). Feature → Business Impact → Application: NEMA 1 painted steel enclosure provides rugged indoor protection against dust and minor environmental challenges, simplifying installation in standard industrial facilities while maintaining compliance with NEC 230.62 barrier requirements. Application: indoor panelboards, switchgear rooms, and automation closets. Feature → Business Impact → Application: Class H fuse and fusible without neutral configuration optimize protection strategy by enabling selective fusing and easier maintenance, reducing replacement costs and downtime. Application: single-phase and small three-phase systems in manufacturing lines and packaging facilities. Feature → Business Impact → Application: wire compatibility with #14-2 Cu/Al supports straightforward field wiring, lowering labor time and risking fewer termination issues. Application: service entrances and compact automation panels. Feature → Business Impact → Application: UL Listed certification and NEC compliance ensure regulatory alignment and audit readiness, facilitating faster project approvals and safer installations. Application: industrial facilities pursuing formal safety certification and risk mitigation. Feature → Business Impact → Application: 600 V rating and 60 A capacity provide scalable protection for a broad range of motors and drives, enabling future expansion without changing protection hardware. Application: plant-wide electrical distribution and machine-tale control systems.
Get a Quick Quote for a Eaton DH262FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH262FGK?
Enquire Now
FAQs
For installation, mount the DH262FGK in a NEMA 1 indoor environment and connect with #14-2 Cu/Al conductors. Utilize the two-pole design and fuse-provisioning to ensure proper coordination. If installing at a service entrance, consider adding a neutral or ground lug kit per Catalog Notes. Verify NEC 230.62 barrier compliance during panel integration.
The switch is rated for 60 A, with a 600 V maximum, two-pole configuration and fusible without neutral. It supports up to 20–25 hp (1PH @ 480/600 V for TD/600 Vdc) and uses #14-2 Cu/Al wiring. It is enclosed in a NEMA 1 painted steel housing and UL Listed, designed for service entrance or control-panel protection.
Yes. The catalog notes specify suitability for service entrance use when a neutral or ground lug kit is installed, and the device offers a robust NEC 230.62 barrier. With UL Listed certification and a 60 A rating, it provides reliable, code-compliant service entrance protection for industrial facilities.
The DH262FGK is UL Listed and housed in a NEMA 1 painted steel enclosure. It complies with NEC barrier requirements for service panels and supports standard industrial safety practices. These certifications help with audit readiness, safety assurance, and project approvals in regulated environments.
Eaton provides a warranty policy of one year from installation or eighteen months from shipment, whichever comes first. Regular maintenance should include inspection of fuse integrity, enclosure sealing in indoor conditions, and verification of wiring terminations for #14-2 Cu/Al to sustain reliable protection and minimize downtime during servicing.
