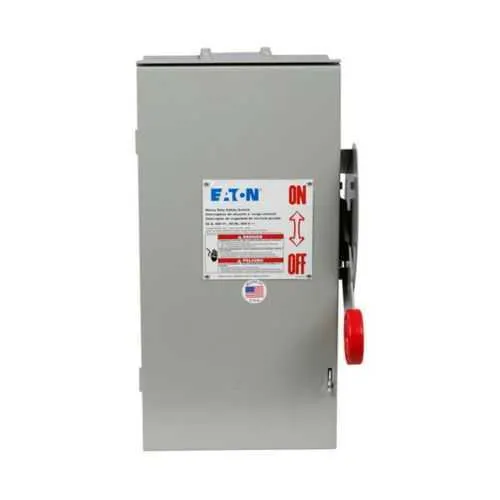

Eaton DH262NRK Heavy Duty Fusible Safety Switch - NEMA 3R
Part Number: DH262NRK
Quick Summary
Eaton DH262NRK heavy duty fusible safety switch isolates 60 A circuits in industrial controls. Engineers and technicians often contend with unreliable protection, difficult installation, and noncompliant wiring in demanding environments. UL Listed, NEC barrier-compliant, and housed in a NEMA 3R enclosure, it delivers rugged protection for indoor and outdoor panels. The device supports two-pole, three-wire configurations up to 600 V with a fusible neutral, enabling safe, code-compliant motor protection. By standardizing on this switch, you can streamline panel layouts, reduce spare parts churn, and improve maintenance intervals across motor-driven lines. Its 25 hp max ratings for single-phase at 480/600 V further align with common industrial motor sizes and drives.
Product Information
Extended Description
DH262NRK Eaton: Eaton Heavy duty single-throw fused safety switch, 60 A, NEMA 3R, Painted galvanized steel, Class H, Fusible with neutral, Two-pole, Three-wire, 600 V, Max Hp: 20, 25 hp/25 hp (1PH @480,600 V TD/600 Vdc), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH262NRK
UPC
786685176963
Product Length/Depth
17 in
Product Height
16.27 in
Product Width
9.5 in
Product Weight
17 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
60A
HP rating - max
20, 25 hp/25 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Feature → The DH262NRK delivers 60 A, two-pole protection with a fusible neutral, enabling reliable motor isolation. Business Impact → This reduces unplanned downtime, simplifies fault tracing, and improves safety in motor control applications. Application → Ideal for 3-wire feeders and 1PH or small 3PH drives up to 600 V in control panels and outdoor equipment. Feature → NEMA 3R enclosure with painted galvanized steel provides outdoor-ready protection. Business Impact → Minimizes additional weatherproofing and accelerates installation in exposed locations. Application → Suitable for mounted panels in shipping yards, outdoor equipment rooms, and hazardous environments. Feature → Class H fuse provision and fusible-with-neutral configuration. Business Impact → Supports safe startup transients and consistent DC link protection. Application → Works well with #14-#2 AWG Cu/Al wiring for standard control circuits. Feature → 600 V rating and UL-listed with NEC 230.62 barrier compliance. Business Impact → Ensures compliance, reduces rework, and streamlines procurement for regulated environments. Application → Fits motor protection needs in industrial facilities requiring UL certification and NEC-compliant barriers. Feature → 17 in depth, 16.27 in height, 9.5 in width, and 17 lb weight; compatible with standard mountings. Business Impact → Lightweight, easy replacement, and minimal space impact in crowded panels. Application → Facilitates rapid retrofits and clean integration into existing control architectures.
Get a Quick Quote for a Eaton DH262NRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH262NRK?
Enquire Now
FAQs
Wiring DH262NRK begins by connecting the incoming line to the line terminals of the switch, the load to the load terminals, and placing the neutral conductor through the fusible path as required by the fusible-with-neutral configuration. Attach a solid, properly rated ground. Verify 60 A amperage, correct Class H fuse, and 600 V rating before energizing. Follow NEC and UL guidelines for safe commissioning.
DH262NRK is rated for 600 V and supports up to 60 A. The HP rating allows up to 20–25 hp for single-phase operation at 480/600 V (TD/600 Vdc). This enables reliable protection for small to mid-size motors, ensuring proper fuse protection, controlled startup, and protection against overloads or short circuits in motor circuits within those limits.
Yes. The DH262NRK uses a NEMA 3R enclosure made from painted galvanized steel, providing outdoor-ready protection against rain, dust, and incidental moisture. This makes it suitable for outdoor panels, equipment rooms, and semi-exposed installations where weather resistance is a requirement, reducing the need for additional housing or enclosure upgrades.
The DH262NRK is UL Listed and NEC barrier compliant, with a NEMA 3R enclosure rating. It supports NEC 230.62 barrier requirements for safe installation, and its 600 V rating aligns with typical industrial motor protections. These certifications simplify procurement, ensure regulatory alignment, and support safer, code-compliant control panels.
Maintenance revolves around fuse replacement and periodic inspection of enclosure integrity and wiring. The unit’s robust NEMA 3R enclosure and Class H fuse design reduce downtime and demand fewer field repairs. Eaton’s warranty and standard parts availability help manage lifecycle costs, with straightforward fuse replacements and predictable service intervals to maximize uptime.
