Eaton DH263FRK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH263FRK
Quick Summary
Eaton heavy duty fusible safety switch provides safe, rapid isolation of electrical circuits for industrial control panels and outdoor installations. Too often downtime and safety incidents arise from improper switching, missing neutral paths, or undersized enclosures. UL Listed protection, a NEMA 3R enclosure, and Class H fuse design help ensure reliable operation in harsh environments. This solution supports high-integrity motor circuits and preventive maintenance programs, while aligning with procurement goals for performance, compliance, and lifecycle costs. Industry engineers value its compact footprint and flexible wiring options for panel builders and retrofit projects. With two poles, a 600 V rating, and Cu/Al wire compatibility up to #1/0, it streamlines installation and future upgrades.
Product Information
Extended Description

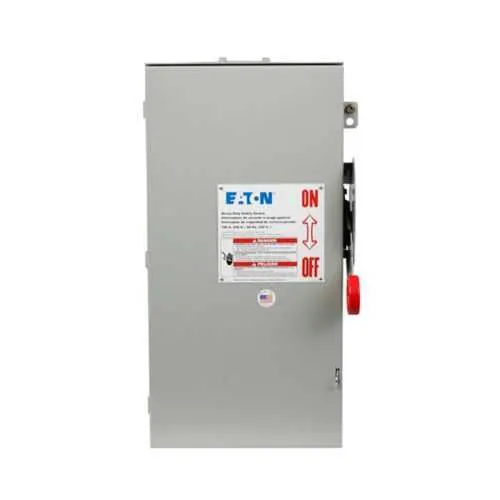

DH263FRK Eaton: Eaton Enhanced visible blade single-throw safety switch, 100 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 30, 40 hp/25 hp (1PH @480,600 V TD/600 Vdc), #14-#1/0 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH263FRK
UPC
786685177144
Product Length/Depth
22.5 in
Product Height
21.99 in
Product Width
12.75 in
Product Weight
17 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Wire size
#14-1/0 AWG Cu/Al
Amperage Rating
100A
HP rating - max
30, 40 hp/25 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 3R
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature → Business Impact → Application: The DH263FRK delivers a 100 A amperage rating with two-pole, two-wire operation and fusible without neutral using Class H fuses at 600 V, enabling selective protection for motor feeders while reducing arc-flash risk and simplifying fuse coordination. This translates to faster fault isolation and lower downtime for critical lines, particularly in mid-size motor drives and feeders in controlled industrial spaces. Application: Ideal for plant floors, machine lines, and outdoor enclosures where reliable switching is required. Feature → Business Impact → Application: Wire size compatibility supports Cu/Al conductors from #14 to #1/0, offering flexible field wiring and easier retrofits. Benefit includes reduced cabling complexity and lower rewiring costs during expansion or maintenance. Application: Suitable for new builds and retrofits in control panels and switchgear assemblies. Feature → Business Impact → Application: NEMA 3R enclosure with painted galvanized steel provides weather resistance and corrosion protection. Impact includes safer outdoor installations and consistent performance in damp or dusty environments. Application: Outdoor service entrances, equipment rooms, and exposed industrial locations. Feature → Business Impact → Application: Compact footprint with dimensions of 22.5 in L, 21.99 in H, 12.75 in W and a weight of 17 lb enables easier mounting and handling. Benefit includes faster installation, reduced panel integration time, and easier maintenance access. Application: Panel builders and machine builders working in space-constrained environments. Feature → Business Impact → Application: Max HP rating of 30–40 hp (1PH at 480/600 V TD/600 Vdc) ensures alignment with typical motor loads and drive systems. Benefit includes optimized protection without over-sizing, improving energy efficiency and lifecycle cost. Application: Motor control centers, feeders, and machine lines with medium horsepower motors. Feature → Business Impact → Application: UL Listed certification and a defined warranty (one year from installation or eighteen months from shipment) strengthen procurement confidence and regulatory compliance. Benefit includes reduced risk in specifications and service planning. Application: Industrial procurement, compliance audits, and service contracts.
Get a Quick Quote for a Eaton DH263FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH263FRK?
Enquire Now
FAQs
DH263FRK fits standard control panels with its 22.5 in length, 21.99 in height, and 12.75 in width. The unit weighs 17 lb, uses a two-pole, two-wire configuration, and accepts Cu/Al conductors from #14 to #1/0. It requires a NEMA 3R-rated space and proper mounting hardware for outdoor or damp locations.
Key specs include 100 A amperage rating, 600 V voltage rating, two-pole, fusible without neutral configuration, Class H fuses, and #14-1/0 Cu/Al wire compatibility. The HP rating is up to 30–40 hp for 1PH at 480/600 V (TD/600 Vdc).
Yes. It features a NEMA 3R enclosure with painted galvanized steel, designed for outdoor or damp locations, providing robust protection against weather and environmental contaminants.
The unit is UL Listed for electrical safety and reliability. Warranty terms are one year from installation or eighteen months from shipment, whichever occurs first, offering assurance for procurement and maintenance planning.
With a 100 A rating, 600 V capability, and compatibility for Cu/Al conductors up to #1/0, along with a compact footprint and 2-pole, 2-wire configuration, it integrates smoothly into motor control centers and panel builds while ensuring safe, code-compliant isolation.
