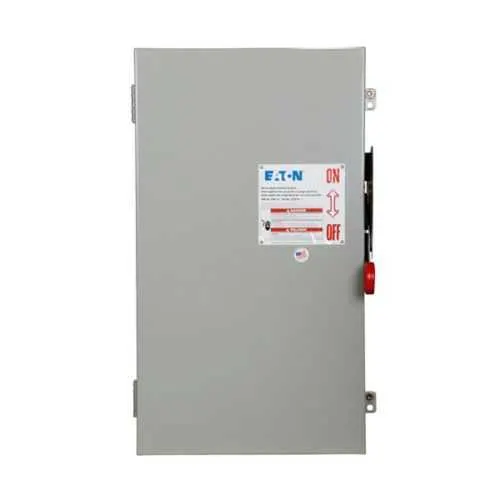

Eaton DH264FGK Heavy duty fusible safety switch - UL Listed
Part Number: DH264FGK
Quick Summary
The Eaton heavy duty fusible safety switch provides reliable power isolation for industrial control panels and service entrances. Engineers often battle downtime caused by improper isolation, nuisance tripping, and difficult maintenance, and this switch addresses those pain points with rugged construction and straightforward field service. It carries UL Listed certification, NEC 230.62 barrier compliance, and a NEMA 1 painted steel enclosure, reinforcing safety and reliability in harsh environments. The unit’s two-pole, fusible-without-neutral design, 200 A rating, and 600 V capability translate to minimized arc flash risk and predictable protection. By enabling compliant isolation with easy wiring and robust uptime, it supports operational efficiency and safer shutdowns for critical processes.
Product Information
Extended Description
DH264FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 1, Painted steel, Class H, Fusible without neutral, Two-pole, Two-wire, 600 V, Max Hp: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH264FGK
UPC
782113206776
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
43 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Wire size
#6 AWG-250 kcmil Cu/Al
Amperage Rating
200A
HP rating - max
50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
200 A, two-pole design with Class H fusible elements deliver high-current protection without neutral. This provides a clear business impact: safer operation, reduced arc-flash risk, and predictable fuse performance in demanding environments. It finds application in service entrances, motor feeders, and control panels where quick fuse changes minimize downtime and keep critical processes online. NEMA 1 painted steel enclosure protects internal components from dust and incidental contact, improving longevity in indoor switchgear. Rugged construction lowers maintenance costs and reduces field failures in environments with door openings and vibration. The design is compatible with a neutral or ground lug kit, expanding installation options and simplifying compliance. 600 V rating and up to 50 HP at single-phase operation (480–600 V) offer flexible motor control while keeping cable sizing practical. The wiring range of #6 AWG to 250 kcmil Cu/Al supports a wide range of feeders, speeding up installation and reducing mis-wiring risk. UL Listed and NEC 230.62 barrier compliance ensure regulatory alignment and safer workplaces. The catalog notes confirm suitability for service entrance use when a lug kit is installed, enabling streamlined integration with new or existing electrical rooms. Warranty of one year from installation (or 18 months from shipment) provides reassurance and predictable support. The fusible safety switch design minimizes downtime while enabling efficient spare parts management for ongoing operations.
Get a Quick Quote for a Eaton DH264FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH264FGK?
Enquire Now
FAQs
Install the DH264FGK in accordance with NEC guidelines for service entrances. It uses a two-pole, fusible without neutral configuration and is rated for 600 V. For best results, pair it with a neutral or ground lug kit as specified in the catalog notes, and ensure a NEMA 1 indoor enclosure is used to protect against dust and incidental contact.
The DH264FGK offers a 200 A amperage rating, 600 V voltage rating, and Class H fuses in a two-pole, fusible-without-neutral configuration. It supports up to 50 HP at single-phase operation in the 480–600 V range, with wire sizing from #6 AWG to 250 kcmil Cu/Al, enabling a broad range of motor and feeder applications.
Yes. The DH264FGK is UL Listed and complies with NEC 230.62 barrier requirements. It is designed for service entrance use with appropriate lug kits installed, reinforcing safety and regulatory alignment in indoor industrial environments.
Best suited for service entrances, motor feeders, and distribution panels in manufacturing and processing facilities. Its NEMA 1 enclosure, 200 A rating, and 600 V capability make it ideal where reliable isolation, straightforward fuse replacement, and compact indoor installation are priorities.
The product is covered by Eaton’s warranty policy 25-000, offering one year from installation or eighteen months from shipment, whichever occurs first. This supports maintenance planning and reduces risk of unexpected downtime while ensuring access to standard spare parts for the fusible safety switch.
