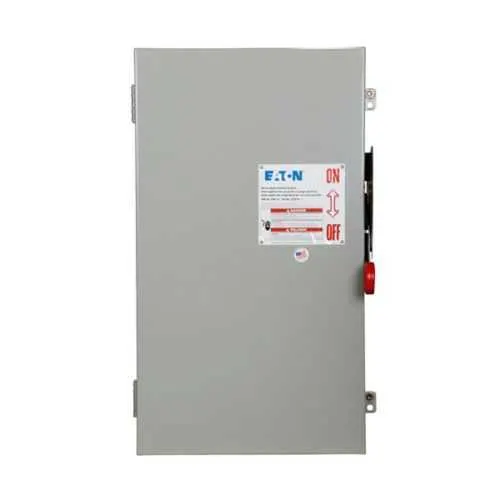

Eaton DH264FRKV Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH264FRKV
Quick Summary
Eaton heavy duty fusible safety switch provides safe, reliable power isolation for industrial equipment. Operators often face nuisance downtime, lengthy maintenance cycles, and compliance gaps that slow production. UL Listed certification alongside a rugged NEMA 3R enclosure and NEC 230.62 barrier help meet code requirements and protect personnel. Designed for 200 A circuits with 600 V ratings, it also supports #6 AWG to 250 kcmil conductors, delivering scalable, cost-effective protection. This model is a solid choice for motor control centers and industrial power distribution where safety, reliability, and maintenance predictability drive uptime and ROI.
Product Information
Extended Description
DH264FRKV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 200 A, NEMA 3R, Painted galvanized steel, Class H, Two-pole, Two-wire, 600 V, Max Hp: 50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH264FRKV
UPC
786685973579
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
52 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Wire size
#6 AWG-250 kcmil Cu/Al
Amperage Rating
200A
HP rating - max
50, 50 hp/50 hp (1PH @480,600 V TD/600 Vdc)
NEMA rating
NEMA 3R
Voltage rating
600 V
Feature: Heavy-duty fusible safety switch design. Business Impact: Enhances system protection and reduces risk of catastrophic faults, improving uptime and safety compliance. Application: Suitable for motor control and distribution panels in manufacturing environments.Feature: 200 A amperage rating and 600 V voltage rating. Business Impact: Supports modern industrial loads with reliable interrupt capability, enabling safe isolation of high-power equipment. Application: Industrial facilities with 3-phase or single-phase power distribution where high fault current may occur.Feature: NEMA 3R enclosure with painted galvanized steel. Business Impact: Weather-resistant, durable enclosure minimizes corrosion and maintenance costs, extending service life in harsh environments. Application: Outdoor or semi-indoor installations and protected service areas.Feature: Class H fuse provision and fusible without neutral configuration. Business Impact: Implements reliable overcurrent protection tailored to motor circuits, reducing nuisance trips and downtime. Application: Two-pole, two-wire installations in 600 V systems.Feature: Wire size compatibility #6 AWG–250 kcmil Cu/Al. Business Impact: Flexible termination options streamline installation, shorten project timelines, and support future upgrades. Application: Field wiring for large industrial feeders and equipment connections.Feature: UL Listed, NEMA 3R, NEC 230.62 barrier compliance. Business Impact: Helps meet electrical codes and safety standards, reducing inspection delays and penalties. Application: Compliance-driven projects in manufacturing, facilities, and process industries.
Get a Quick Quote for a Eaton DH264FRKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH264FRKV?
Enquire Now
FAQs
The DH264FRKV employs a two-pole, two-wire configuration in a NEMA 3R, painted galvanized steel enclosure. It accepts #6 AWG to 250 kcmil Cu/Al conductors and is rated for up to 200 A at 600 V. Ensure proper mounting clearances for front-access operation and verify NEC 230.62 barrier compliance during panel assembly.
Yes, the DH264FRKV is designed for two-pole, two-wire configurations. It fits standard IEC-compatible motor control and electrical distribution panels that require 200 A, 600 V fusible safety switches with NEMA 3R protection. Confirm enclosure dimensions and mounting footprint in your panel schedule to ensure seamless integration.
This model is UL Listed, providing recognized safety assurance. It uses a NEMA 3R enclosure for weather resistance, supports NEC 230.62 compliant barrier requirements, and employs Class H fusing with fusible without neutral configuration. These features help meet common industrial electrical codes and safety requirements.
Ideal for motor control centers, power distribution panels, and industrial equipment isolations in manufacturing, packaging, material handling, and process industries. Its 200 A rating, 600 V capability, and rugged enclosure support reliable protection of high-power loads while facilitating maintenance access and compliance.
The robust UL Listed, NEMA 3R-rated enclosure reduces corrosion and weather-related downtime, while Class H fusing minimizes nuisance trips. Compatible wire ranges simplify field wiring and future upgrades. Overall, expect lower unplanned downtime, easier inspections, and a favorable TCO through longer service life and safer, code-compliant operation.
