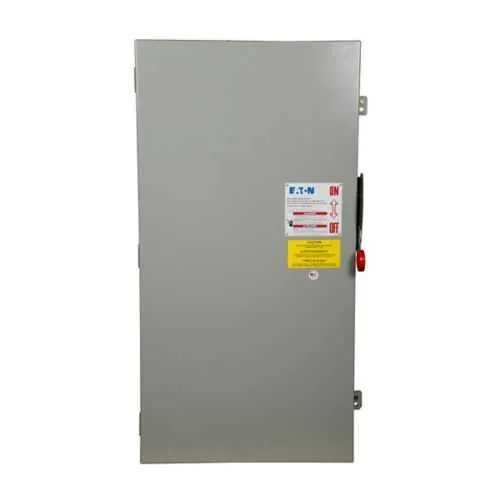

Eaton DH265FGK Heavy Duty Fusible Switch - UL Listed
Part Number: DH265FGK
Quick Summary
Eaton heavy duty fusible safety switch provides safe, reliable power isolation for industrial equipment in demanding environments. This solution addresses the persistent challenge of ensuring robust protection while minimizing downtime during maintenance and commissioning. UL Listed, NEC 230.62 (C) compliant barrier, and a NEMA 1 painted steel enclosure deliver critical safety and regulatory assurance. Designed for service entrances and control panels, it supports efficient wiring, straightforward installation, and long-term operating cost reductions, making it a practical choice for engineers and procurement teams seeking dependable protection with clear compliance.
Product Information
Extended Description
DH265FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 400 A, NEMA 1, Painted steel, Class H, Fusible, No neutral, Two-pole, Two-wire, 600 V, Max Hp: 50 at 250 Vdc, (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH265FGK
UPC
782113207186
Product Length/Depth
45.5 in
Product Height
10.25 in
Product Width
24.38 in
Product Weight
110 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
400A
HP rating - max
50 at 250 Vdc
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature: 400A amperage rating with a 600 V voltage rating and a two-pole, fusible without neutral configuration in a NEMA 1 painted steel enclosure. Business Impact: High current protection for large motors and equipment with proven isolation, reducing arc-flash risk and unplanned downtime. Application: Suitable for heavy machinery panels and service entrances in manufacturing facilities.Feature: Class H fuse provision and fusible cartridge design. Business Impact: Reliable fault current interruption with predictable fuse performance, lowering maintenance surprises and replacement costs. Application: Industrial control panels and feeder circuits requiring dependable protection against overloads.Feature: UL Listed certification and NEC 230.62 barrier compliance. Business Impact: Regulatory compliance and enhanced safety assurances, simplifying audits and install approvals. Application: Critical for code-compliant installations in commercial/industrial environments.Feature: NEMA 1 enclosure with painted steel construction. Business Impact: Durable protection in indoor environments with straightforward paint-grade corrosion resistance, extending life in harsh plant settings. Application: Indoor switchgear housings and control cabinets.Feature: Suitable for service entrance use with neutral or ground lug kit. Business Impact: Flexible integration in new builds or retrofits, reducing engineering time and accelerating commissioning. Application: Service entrances and panel upgrades where neutral or ground lug kits are installed.Feature: Max HP rating of 50 at 250 Vdc and conductor capacity options up to (2)300 kcmil or (1)750 kcmil Al. Business Impact: Large-load handling with scalable wiring options, enabling design reuse across multi-motor applications. Application: Heavy-duty switching in industrial drives and power distribution.
Get a Quick Quote for a Eaton DH265FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH265FGK?
Enquire Now
FAQs
For proper installation, mount in a NEMA 1 indoor enclosure and follow the two-pole, fusible without neutral configuration. Ensure space for a neutral or ground lug kit if service entrance use is anticipated. Verify conductor sizing to match the max fuse and ampacity requirements, and confirm compatible wiring methods per NEC guidelines to maintain the 230.62 barrier integrity.
The DH265FGK supports 400 A and a 600 V rating with a two-pole configuration and fusible without neutral. It accepts conductors up to (2) 300 kcmil or (1) 750 kcmil aluminum or equivalent copper, enabling large motor protection and high-load applications while maintaining NEC-compliant protection and reliable disconnects.
Yes. The switch is UL Listed and features a NEC 230.62 (C) compliant barrier, making it suitable for service entrance installations in compliant electrical rooms and distribution panels. This certification streamlines approvals during audits and ensures safety performance aligned with industry standards.
Ideal for service entrances, heavy machinery panels, and control cabinets where 400 A protection and 600 V isolation are required. It supports high horsepower loads (up to 50 HP at 250 V DC) and large conductor runs, making it suitable for manufacturing, processing, and material handling environments that demand robust protection and reliable operation.
The durable painted steel enclosure and Class H fuse design deliver predictable replacement cycles, reducing unexpected outages. UL listing and NEC compliance simplify regulatory checks, while the compact footprint and lug-kit compatibility improve installation efficiency and lifecycle costs. Warranty provisions, including Eaton’s policy, provide added protection against early failures and support long-term asset reliability.
