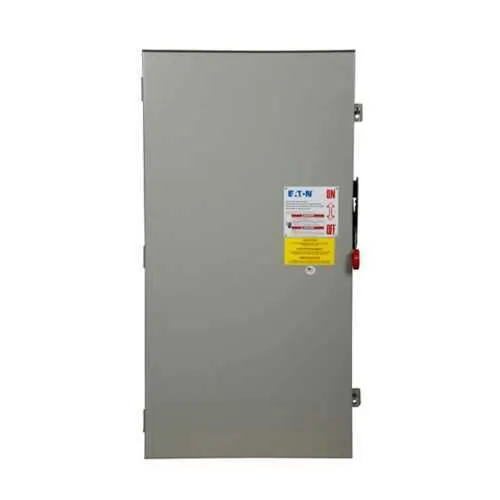

Eaton DH265FRKV Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH265FRKV
Quick Summary
Eaton DH265FRKV heavy duty fusible safety switch provides safe electrical isolation for industrial equipment. The design helps minimize downtime and avoids unintended energization during maintenance by offering rugged, field-serviceable protection. This unit is UL Listed with a NEMA 3R enclosure and NEC 230.62 barrier compliance, enabling reliable outdoor and indoor use. Built for 600 V systems and 400 A circuits, it scales protection for growing plant electrical loads while simplifying procurement and installation for controls engineers and reliability teams.
Product Information
Extended Description
DH265FRKV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 400 A, NEMA 3R, Painted galvanized steel, Class H, Two-pole, Two-wire, 600 V, Max Hp: 50 at 250 Vdc, (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH265FRKV
UPC
786685971711
Product Length/Depth
46.12 in
Product Height
10.88 in
Product Width
25.38 in
Product Weight
120 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
400A
HP rating - max
50 at 250 Vdc
NEMA rating
NEMA 3R
Voltage rating
600 V
Feature: 400 A amperage rating with a two-pole, two-wire configuration. Business Impact: Supports large motor loads and feeders with reliable protection, reducing nuisance tripping and enabling safer maintenance workflows. Application: Industrial motor control centers and power distribution panels handling high inrush currents. Feature: NEMA 3R, painted galvanized steel enclosure. Business Impact: Weather-resistant protection that extends service life in outdoor substations and exposed plant areas. Application: Outdoor switchgear adjacencies, wet/dust-prone environments, and protected outdoor installations. Feature: Class H fuse provision and fusible without neutral configuration. Business Impact: Enhanced selective protection and fault current management for safer shutdown sequences. Application: Large industrial circuits where precise fuse coordination matters. Feature: UL Listed with NEC 230.62 barrier compliance. Business Impact: Industry-standard certification simplifies audits and regulatory compliance, reducing project risk. Application: Facilities requiring verified safety barriers and regulatory alignment. Feature: 50 HP at 250 Vdc and 600 V rating. Business Impact: Clear performance envelope for motor and machinery protection, enabling informed design decisions. Application: High-power drives and process equipment in manufacturing lines. The combination of heavy-duty construction, HDSS labeling, and proven Eaton reliability translates to lower maintenance costs, improved uptime, and straightforward integration with existing 600 V DC or AC power architectures.
Get a Quick Quote for a Eaton DH265FRKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH265FRKV?
Enquire Now
FAQs
The DH265FRKV is rated for 600 V systems and comes in a NEMA 3R enclosure, suitable for both indoor and outdoor installations. Its two-pole, two-wire configuration and Class H fuse provision support reliable circuit protection for high-power motors and feeders while meeting environmental protection standards.
UL Listing confirms the device meets recognized safety standards, while NEC 230.62 barrier compliance ensures proper clearance and safe operation in electrical installations. Together, these certifications streamline audits, improve safety, and simplify procurement for regulated facilities.
A 400 A rating enables the switch to safely interrupt large fault currents and protect downstream equipment. Combined with 50 HP at 250 Vdc capability, it supports robust protection for high-load motors and drives, reducing risk of thermal overload and unplanned downtime.
Yes. The NEMA 3R enclosure, painted galvanized steel, provides weather resistance and corrosion protection suitable for outdoor or semi-exposed locations. This makes it a reliable choice for substations, outdoor panels, and protected plant perimeters.
The HDSS designation signals rugged construction designed for durability and ease of service. Benefits include longer service intervals, lower maintenance costs, and reduced downtime during routine servicing. Pairing UL Listed protection with a robust enclosure also supports predictable lifecycle planning and faster commissioning.
