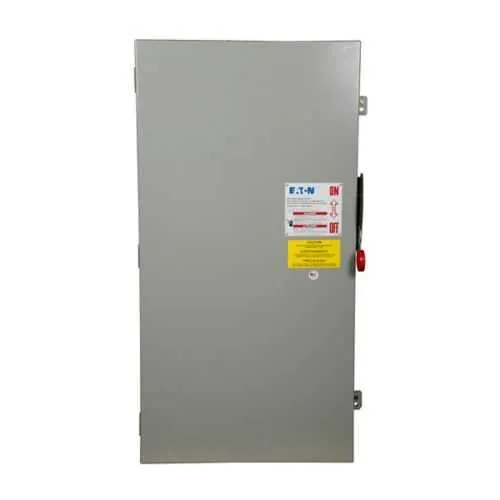

Eaton DH265NGK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH265NGK
Quick Summary
The Eaton DH265NGK heavy duty fusible safety switch is designed for reliable isolation and feeder protection in industrial power distribution. Maintenance and safety teams often struggle with unsafe lockout practices and unplanned downtime; this model helps by providing a code-compliant, straightforward path to safe de-energization of high-current feeders. It carries UL Listed certification and NEC 230.62(C) barrier compliance, and is built in a NEMA 1 painted steel enclosure to withstand typical plant environments. With a 400 A rating and 600 V operating capability, plus a 50 HP at 250 Vdc limit, it’s well-suited for motor feeders and robust distribution blocks. The design supports straightforward installation and predictable lifecycle costs, aligning reliability with strong safety and compliance outcomes.
Product Information
Extended Description
DH265NGK Eaton: Eaton Heavy duty single-throw fused safety switch, 400 A, NEMA 1, Painted steel, Class H, Fusible with neutral, Two-pole, Three-wire, 600 V, Max Hp: 50 at 250 Vdc, (2)#1/0-(2)300 kcmil or (1)#1/0-(1)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH265NGK
UPC
786685177076
Product Length/Depth
45.5 in
Product Height
10.25 in
Product Width
24.38 in
Product Weight
115 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
400A
HP rating - max
50 at 250 Vdc
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Feature: 400 A amperage rating with two-pole, three-wire configuration and fusible with neutral. Business Impact: Handles high-current motor feeders while preserving a safe, easily isolated path for maintenance. Application: Ideal for industrial power distribution centers and motor control circuits up to 400 A. Feature: 600 V voltage rating and HP rating of 50 at 250 Vdc. Business Impact: Expands applicability to both AC and DC loads, enabling broader system protection without multiple devices. Application: Suitable for mixed-voltage industrial systems and high-demand equipment feeds. Feature: NEMA 1 enclosure constructed from painted steel. Business Impact: Provides indoor, rugged enclosure protection against dust and incidental contact, reducing environmental wiring risk. Application: Factory floors, control rooms, and warehouses where indoor protection matters. Feature: Class H fuse provision and fusible with neutral. Business Impact: Delivers reliable overcurrent protection with neutral reference, improving fault isolation and safety. Application: Equipment feeders requiring fusible protection with a neutral conductor for balanced protection. Feature: Two-pole, three-wire design with specified conductor ranges (copper and aluminum). Business Impact: Simplifies installation with defined wiring options, reducing field rework and ensuring compliance with conductor sizing. Application: Large electrical feeders using copper or aluminum conductors in industrial facilities. Feature: UL Listed and NEC 230.62(C) barrier compliant. Business Impact: Supports regulatory compliance and safer maintenance practices, minimizing risk of arc-flash exposure during servicing. Application: Plants and facilities pursuing strict electrical safety programs and code adherence.
Get a Quick Quote for a Eaton DH265NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH265NGK?
Enquire Now
FAQs
The DH265NGK supports two-pole, three-wire circuits with fusible links sized for copper conductors up to 2/0–300 kcmil and aluminum conductors up to 1/0–750 kcmil, depending on the specific fuse configuration. Always verify the exact fuse sizing in the datasheet for your installation to ensure code compliance and safe current capacity.
Key ratings are 400 A continuous amperage, 600 V voltage rating, 50 HP maximum at 250 Vdc, two-pole operation, and a fusible with neutral configuration. These ratings support protection for large feeders and motor circuits in industrial environments.
The DH265NGK is rated for indoor use with a NEMA 1 painted steel enclosure. This combination provides solid protection against dust and incidental contact, making it suitable for control panels, electrical rooms, and other indoor industrial spaces.
The DH265NGK is UL Listed and complies with NEC 230.62(C) barrier requirements. While CE and SIL certifications are not listed in the provided data, these validations support regulatory compliance and safety in many North American industrial facilities.
Warranty is Eaton’s policy 25-000, offering one year from the date of installation or eighteen months from shipment, whichever occurs first. For maintenance, follow the datasheet guidance on fuse replacement, inspection intervals, and safe lockout/tagout procedures to maximize uptime and safety.
