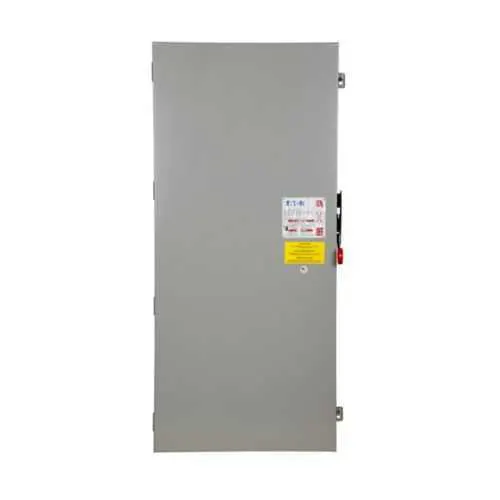

Eaton DH267FGK Fusible Safety Switch - UL Listed
Part Number: DH267FGK
Quick Summary
Eaton DH267FGK fusible safety switch provides heavy-duty protection for industrial power feeders and service entrances. Engineers often wrestle with safe, code-compliant disconnection during maintenance, and this unit helps reduce risk through robust isolation. UL Listed and NEC 230.62 barrier-compliant, with a NEMA 1 painted steel enclosure, it is built for indoor reliability in demanding environments. The design supports service entrances with neutral or ground lug kits, delivering installation flexibility and faster deployment while maintaining important safety standards. Secondary benefits include strong integration with standard electrical distributions and long-term cost efficiency for facilities undergoing expansion or retrofit projects.
Product Information
Extended Description
DH267FGK Eaton: Eaton Heavy duty single-throw fused safety switch, 800 A, NEMA 1, Painted steel, Class L, Fusible without neutral, Two-pole, Two-wire, 600 V, (4)1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH267FGK
UPC
782113589688
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
155 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a neutral or ground lug kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
800A
NEMA rating
NEMA 1
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature: 800 A amperage rating and 600 V maximum. Business Impact: Enables true overcurrent protection for large feeders, reducing nuisance trips and enabling compact distribution layouts. Application: Ideal for service entrances and high-current motor feeders in manufacturing, mining, and processing facilities. Feature: Class L fuse with fusible without neutral configuration. Business Impact: Delivers selective protection and simplified wiring schemes, lowering total installed cost and maintenance burden. Application: Suitable for two-pole, two-wire circuits in indoor switchgear and control rooms. Feature: UL Listed certification and NEC 230.62 barrier compliance. Business Impact: Provides regulatory confidence and smoother audits, accelerating project approvals. Application: Required in code-compliant electrical installations across industrial facilities. Feature: NEMA 1 painted steel enclosure. Business Impact: Durable dust protection and rugged indoor performance extend component life with minimal upkeep. Application: Indoor enclosures and clean-room adjacencies where environmental exposure is limited. Feature: Service entrance versatility with neutral or ground lug kit compatibility; conductor provision for four 1/0 to 750 kcmil aluminum conductors. Business Impact: Flexible field upgrades and simplified wiring inventories reduce project lead times. Application: Retrofit and new-build service entrances needing robust grounding options and large-conductor connections. Feature: Warranty and lifecycle support per Eaton policy; one year from installation or eighteen months from shipment. Business Impact: Predictable coverage minimizes ownership risk and supports ROI. Application: Standard procurement expectation for mission-critical electrical protection in facilities across sectors.
Get a Quick Quote for a Eaton DH267FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH267FGK?
Enquire Now
FAQs
The DH267FGK is suitable for service entrances and can be installed with a neutral or ground lug kit. It supports two-pole, two-wire configurations and is designed for indoor use with a NEMA 1 painted steel enclosure, allowing straightforward retrofits and new installations.
Key ratings include an 800 A amperage rating and a 600 V voltage rating. It uses Class L fusing and is fusible without neutral, configured for two-pole, two-wire circuits to protect feeders and large motor loads effectively.
This unit excels in service entrances and indoor distribution panels where high-current protection is required. It is well-suited for manufacturing, processing, and other facilities needing reliable isolation, code-compliant barriers, and durable enclosure protection.
The DH267FGK is UL Listed and NEC 230.62 barrier-compliant, with a NEMA 1 enclosure. These certifications support safe operation, regulatory compliance, and easier commissioning in code-controlled environments.
Eaton provides a warranty per policy 25-000: one year from installation or eighteen months from shipment, whichever occurs first. This warranty supports ongoing reliability and reduces total cost of ownership during typical facility life cycles.
