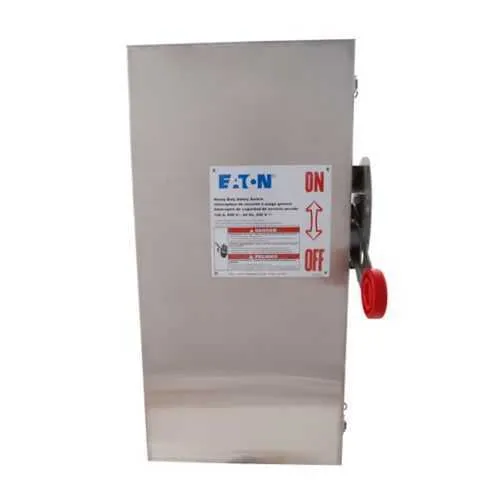

Eaton DH268FWK Heavy Duty Fusible Safety Switch - NEMA 4X
Part Number: DH268FWK
Quick Summary
Eaton heavy duty fusible safety switch isolates power safely in industrial equipment and process lines. Maintenance teams often face extended downtime and risky lockouts when equipment must be powered down for servicing. UL Listed safety certification, NEC 230.62 barrier compliance, and a rugged NEMA 4X stainless enclosure ensure reliable, code-compliant installations in harsh environments. As a business value, this switch reduces downtime, simplifies maintenance, and supports scalable protection for high-current, 600 V systems. Its corrosion-resistant 304 stainless steel enclosure and Class L fuse configuration support long service life in demanding industrial environments. From design engineers to procurement teams, this translates into predictable lead times and lower total cost of ownership. This combination supports safer startup, quicker fault isolation, and easier regulatory audits.
Product Information
Extended Description
DH268FWK Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 1200 A, NEMA 4X, 304 stainless steel, Class L, Fusible without neutral, Two-pole, Two-wire, 600 V, (4)1/0-(4)750 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH268FWK
UPC
786685178134
Product Length/Depth
19.99 in
Product Height
73.77 in
Product Width
41.46 in
Product Weight
455 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
304 stainless steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Two-pole
Number of wires
2
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Fusible without neutral
Feature: 1200 A amperage rating with 600 V voltage capability and two-pole configuration. Business Impact: Enables safe, high-current feeders with selective coordination and reduced arc-flash risk. Application: Heavy manufacturing lines, motor feeders, and process controls benefit from reliable isolation and fast fault clearing. Long-tail keywords: heavy duty fusible safety switch, 1200 A safety switch, high-current feeders. Feature: Fusible without neutral with Class L fuse. Business Impact: Improves fault isolation and fuse coordination, lowering energy loss and eliminating unnecessary neutral conductors. Application: Large industrial drives and line feeders in complex electrical rooms. Long-tail keywords: Class L fuse, fusible without neutral, fuse configuration. Feature: NEMA 4X enclosure in 304 stainless steel. Business Impact: Delivers corrosion resistance for outdoor, washdown, and harsh indoor environments, reducing maintenance cycles. Application: Food & beverage, chemical processing, and outdoor installations. Long-tail keywords: NEMA 4X enclosure, stainless steel enclosure, corrosion resistance. Feature: Conductor compatibility up to (4)1/0–(4)750 kcmil Cu/Al, two wires. Business Impact: Supports large feeders and flexible field wiring, enabling modular upgrades without enclosure changes. Application: Plant-wide power distribution and heavy machinery feeds. Long-tail keywords: 750 kcmil wiring, large conductor capacity, two-wire switch. Feature: UL Listed, NEC 230.62 barrier compliance. Business Impact: Meets regulatory requirements, streamlines procurement, and reduces inspection time. Application: Industrial facilities needing compliant, trackable protection devices. Long-tail keywords: UL Listed safety switch, NEC barrier, regulatory compliance. Feature: Robust physical footprint and 600 V rating. Business Impact: Durable protection with predictable life cycles in demanding environments, lowering spare parts and downtime. Application: Automation panels and distribution cabinets in industrial plants. Long-tail keywords: 600 V protection device, rugged electrical switch, maintenance-friendly design.
Get a Quick Quote for a Eaton DH268FWK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH268FWK?
Enquire Now
FAQs
The DH268FWK is designed for harsh settings with a NEMA 4X stainless enclosure and corrosion resistance from 304 stainless steel. For outdoor or washdown areas, ensure proper clearance and mounting height, use appropriate interior wiring lugs, and follow torque specs per the Eaton datasheet. Plan for room for two large feeders and safe handling due to its 455 lb weight. Regular inspection of sealing integrity and fuse accessibility aids long-term reliability.
This switch accommodates large feeders with conductor ranges up to (4)1/0 through (4)750 kcmil Cu/Al, two wires total. It supports fusible without neutral and uses Class L fuses for selectivity. When wiring, verify lug torque, insulation distances, and maintain proper clearance for heat dissipation. Consult the specification sheet for installation diagrams and torque values to ensure code-compliant, safe operation.
Yes. With a 1200 A amperage rating and 600 V capacity, paired with a two-pole design, the DH268FWK is ideal for heavy-load feeders in manufacturing and process lines. Its robust 304 stainless enclosure and NEMA 4X protection handle demanding environments, while UL Listed certification supports safe, compliant integration into existing power distribution networks.
The DH268FWK carries UL Listed certification and NEC 230.62 barrier compliance, reinforcing safe operation and regulatory alignment. It features a NEMA 4X enclosure for rugged environments and a corrosion-resistant 304 stainless steel body. These certifications simplify audits, speed procurement, and reassure manufacturers about safety and reliability in critical power isolation duties.
The device offers long service life due to its corrosion-resistant enclosure and rugged construction, reducing replacement frequency. Its UL Listed status and NEC compliance streamline inspections and documentation. While the initial investment is higher, the 1200 A rating, durable materials, and minimal downtime typically translate to lower total cost of ownership over the equipment’s life cycle.
