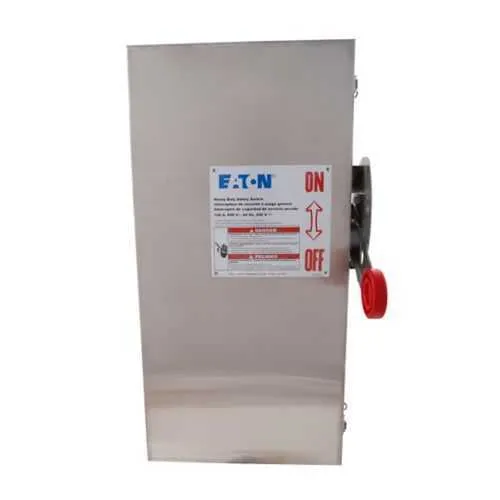

Eaton DH268NWK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH268NWK
Quick Summary
Electricians and engineers rely on durable, code-compliant isolation devices to protect personnel and equipment. Eaton DH268NWK is a heavy-duty fusible safety switch for industrial motor control and feeders. In demanding environments, downtime and corrosion threaten uptime; this unit’s stainless-steel NEMA 4X enclosure stands up to washdown and outdoor exposure, while UL Listed certification confirms safety and reliability. NEC 230.62 barrier compliance adds another layer of protection for control panels and workspaces. The design supports 1200 A, 600 V service with a fusible-with-neutral configuration, two poles and three wires, enabling trusted protection with minimal maintenance and straightforward field installation. For reliability and compliance, this switch is a solid foundation for critical power distribution.
Product Information
Extended Description
DH268NWK Eaton: Eaton Heavy duty single-throw fused safety switch, Corrosion resistant, 1200 A, NEMA 4X, Stainless steel, Class L, Fusible with neutral, Two-pole, Three-wire, 600 V, (4)1/0-(4)750 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH268NWK
UPC
786685178158
Product Length/Depth
19.99 in
Product Height
73.77 in
Product Width
41.46 in
Product Weight
455 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
Stainless steel
Fuse class provision
Class L
Fuse configuration
Fusible with neutral
Number Of Poles
Two-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 4X (Stainless)
Voltage rating
600 V
Product Category
Heavy Duty, Fusible with neutral
Exterior durability drives long-term uptime in harsh environments, and the DH268NWK delivers with a corrosion-resistant stainless-steel enclosure that meets NEMA 4X. This design supports outdoor installation, washdown zones, and coastal or factory floors where moisture and chemicals challenge equipment. The result is lower replacement cycles and reduced maintenance costs across the life of the switch. Fuse configuration and protection are built around a Class L fuse provision and a fusible-with-neutral setup in a two-pole, three-wire arrangement. The 1200 A amperage rating and 600 V voltage rating give designers a reliable main-disconnect option for large feeders, improving fault management and system reliability. In practice, this means more predictable fault clearance and better coordination with downstream protective devices. UL Listed certification and NEC barrier compliance provide regulatory confidence and safer labor conditions during installation and operation. The NEMA 4X stainless enclosure further supports dust, water, and corrosion resistance, reducing the risk of panel contamination in demanding environments. Together, these features help facilities meet industry standards while maintaining productivity. Installation and compatibility considerations are simplified by the standard two-pole design and clear Eaton specifications. The unit’s rugged construction is designed for field mounting under typical industrial layouts, and its 19.99 in depth, 41.46 in width, and 73.77 in height guide enclosure coordination in control rooms and switchgear assemblies. This makes sourcing, stocking, and commissioning more efficient. Warranty terms support TCO for asset managers: one year from installation or eighteen months from shipment. By choosing a proven, UL-listed, stainless-steel solution with long service life and minimal maintenance, facilities can reduce spare parts inventory and downtime costs while ensuring safety and compliance across critical power distribution.
Get a Quick Quote for a Eaton DH268NWK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH268NWK?
Enquire Now
FAQs
It is designed for 600 V industrial power distribution with a two-pole, fusible-with-neutral configuration. The DH268NWK supports up to 1200 A and is suitable for main disconnects and feeders in manufacturing, water treatment, and process facilities. When integrating, verify fuse type against Class L, follow Eaton installation guides, and coordinate with downstream protective devices for reliable fault clearance.
The NEMA 4X stainless-steel enclosure provides outdoor and washdown resilience, protecting against moisture, dust, and corrosion. Plan for secure mounting, maintain adequate clearance for doors and wiring, and follow NEC barrier guidelines to keep spaces compliant. Ensure proper grounding, seal integrity, and gasket maintenance during service intervals to preserve protection over time.
UL Listed certification confirms electrical safety and reliability, while NEC barrier compliance supports control-panel protection. Although SIL or CE labels are not listed in the data, the combination of UL Listed status, NEMA 4X enclosure, and corrosion resistance helps address regulatory and safety requirements. Documented certifications simplify audits and commissioning.
The warranty runs one year from installation or eighteen months from shipment, whichever comes first. Maintenance is typically limited to periodic fuse checks, enclosure seals, and verification of labeling and grounding. The rugged stainless enclosure and Eaton design reduce the frequency of maintenance, supporting lower total cost of ownership in high-demand facilities.
Electrical ratings include 1200 A amperage, 600 V, and a fusible-with-neutral arrangement in a two-pole, three-wire configuration. The fuse class provision uses Class L fuses, with a UL-listed safety switch in a NEMA 4X enclosure for reliable isolation and protection of large feeders and critical loads.
