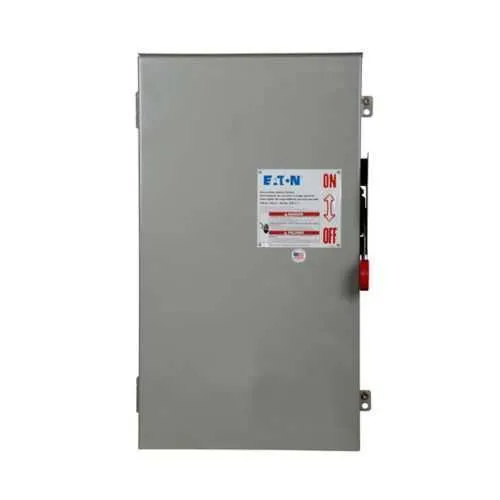

Eaton DH324FRK Safety Switch - NEMA 3R UL Listed
Part Number: DH324FRK
Quick Summary
Eaton DH324FRK Safety Switch provides heavy-duty fault isolation for three-phase feeders in industrial environments. When downtime or miswiring threatens production, a robust switch like this minimizes risk and speeds safe maintenance. UL Listed certification and a NEMA 3R enclosure rating support code compliance for both indoor and outdoor installations, while Class H fusing delivers selective, safe disconnect. For engineers and buyers, it also supports #6 AWG through 250 kcmil Cu/Al conductors and a three-pole, three-wire configuration. Taken together, the DH324FRK improves uptime, safety, and regulatory alignment for demanding facilities in industrial protection and circuit control applications.
Product Information
Extended Description
DH324FRK Eaton: Eaton Enhanced visible blade single-throw safety switch, 200 A, NEMA 3R, Painted galvanized steel, Class H, Fusible without neutral, Three-pole, Three-wire, 240 V, Max Hp: 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH324FRK
UPC
782113206677
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
41 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Wire size
#6 AWG-250 kcmil Cu/Al
Amperage Rating
200A
HP rating - max
15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc)
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature: 200A, 240V three-pole operation provides precise control of three-phase feeders. Business Impact: robust protection reduces unplanned downtime and minimizes arc-flash exposure during maintenance. Application: service entrances and machine feeders in manufacturing facilities. Feature: NEMA 3R enclosure with painted galvanized steel construction. Business Impact: weather-resistant housing lowers maintenance costs and enables safe outdoor installation. Application: plant perimeters and outdoor equipment enclosures in harsh environments. Feature: Fusible without neutral with Class H fuse provision. Business Impact: selective coordination and fast fault isolation while simplifying wiring in three-wire systems. Application: medium-power distribution panels and motor control centers. Feature: Conductor compatibility from #6 AWG to 250 kcmil Cu/Al. Business Impact: flexible, code-compliant terminations reduce splice hardware and installation time. Application: large-diameter feeder connections to minimize voltage drop and heat. Feature: UL Listed certification and service-entrance suitability with Neutral Kit option. Business Impact: streamlined approval processes and safer service-entry installations with easy upgrade paths. Application: industrial facilities seeking compliance, predictable maintenance, and scalable protection.
Get a Quick Quote for a Eaton DH324FRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH324FRK?
Enquire Now
FAQs
The DH324FRK is a three-pole, 200A switch designed for service entrances. It uses a 240V three-wire configuration and is compatible with #6 AWG to 250 kcmil Cu/Al conductors. Plan for a NEMA 3R enclosure and ensure Neutral Kit compatibility if service entrance neutral is required. Mounting should follow standard electrical codes, with proper clearance for safe access during maintenance.
This unit supports #6 AWG through 250 kcmil Cu/Al conductors, enabling direct connections from feeders to the switch. It is configured as a three-pole, three-wire device rated for 200A at 240V. When wiring, observe proper torque values, insulation integrity, and the neutral-kit requirements if neutral is used in the circuit.
Yes. The enclosure is NEMA 3R rated and finished in painted galvanized steel, providing weather resistance suitable for outdoor or semi-exposed environments. This makes it appropriate for service entrances and outdoor equipment enclosures, helping to reduce corrosion-related maintenance and downtime.
The DH324FRK carries UL Listed certification and comes with Eaton’s warranty policy of one year from installation or eighteen months from shipment, whichever is sooner. Regular inspections should verify fuse integrity, clean enclosure surfaces, and confirm secure terminations. Maintain clear access and replace fusible elements as recommended by Eaton’s datasheets to sustain reliability.
Common applications include service entrances, motor control and large feeder circuits in manufacturing facilities. Benefits include reliable fault isolation, reduced downtime due to quick disconnect capability, enhanced safety during maintenance, and compliance with UL standards and NEMA 3R environmental protection. Its fuse class H and non-neutral fusible configuration support flexible, code-compliant protection for three-wire systems.
