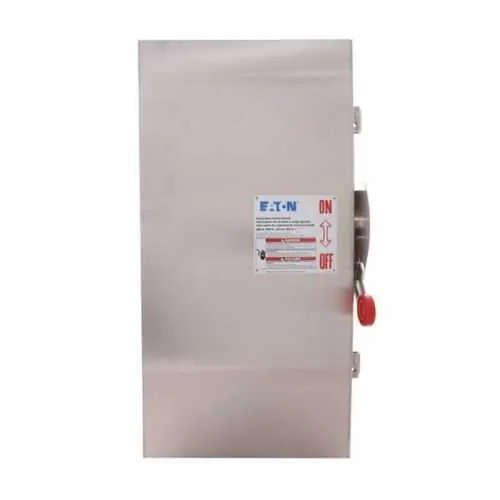

Eaton DH324FWK316 Heavy Duty Fusible Safety Switch UL
Part Number: DH324FWK316
Quick Summary
DH324FWK316 heavy duty fusible safety switch protects electrical circuits in industrial equipment. For engineers wrestling with downtime from improper protection, this switch provides predictable, fast-trippable protection and serviceability. Key certifications include UL Listed protection, a NEMA 4X stainless steel enclosure, and Class H fuses supporting NEC-compliant installations. Coupled with 200 A capacity and 240 V operation, it fits standard controls for scalable, safe power distribution. With rugged 316 stainless construction and a compact footprint, it supports rugged installations and easy panel integration. Additionally, the enclosure is rated for harsh environments, delivering corrosion resistance and extended service life. And it plugs into existing control systems with standard wiring schemes, reducing installation time.
Product Information
Extended Description
DH324FWK316 Eaton: Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 4X, Grade 316 stainless steel, Class H, Fusible without neutral, Three-pole, Three-wire, 240 V, Max Hp: 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc), #6-300 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH324FWK316
UPC
782116489848
Product Length/Depth
37.5 in
Product Height
11.5 in
Product Width
19 in
Product Weight
55 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 4X
Enclosure material
316 stainless steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
200A
HP rating - max
15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc)
NEMA rating
NEMA 4X (Stainless)
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature 200 A amperage rating and three-pole configuration provides robust motor protection, resulting in fewer nuisance trips and reduced motor wear. Business Impact This translates to lower maintenance costs and longer equipment life, improving production uptime. Application Suitable for heavy machinery, conveyors, and pump systems where reliable high-current switching is critical. Feature NEMA 4X enclosure in 316 stainless steel delivers superior corrosion resistance and weathering capability. Business Impact This minimizes enclosure degradation in harsh environments, reducing replacement costs and safeguarding control panels. Application Ideal for outdoor or wash-down areas in food processing, chemical, and water treatment facilities. Feature Class H fuse provision with fusible without neutral configuration ensures precise interrupting ratings for demanding loads. Business Impact This provides predictable protection curves, protecting downstream components and enabling simpler coordination with upstream protection. Application Useful in high-inertia motor starts and process lines requiring clean disconnects. Feature Three-pole, three-wire design with #6-300 kcmil Cu/Al conductor compatibility supports versatile wiring. Business Impact This simplifies field installations and future upgrades, lowering commissioning time and wiring errors. Application Fits standard control panels and modular systems for scalable installations. Feature UL Listed certification and NEC 230.62 compliant barrier enhances regulatory alignment. Business Impact This reduces risk during audits and accelerates project approvals. Application Critical for facilities with strict compliance requirements and OEM-specified safety standards. Feature 240 V operation and dimensional footprint (37.5 in L, 11.5 in H, 19 in W) balances capacity with panel space. Business Impact This enables straightforward integration into existing enclosures and control architectures, saving panel real estate and installation time. Application Suitable for retrofit projects and new builds where space is at a premium.
