Eaton DH324NGK Heavy Duty Fusible Safety Switch - UL Listed

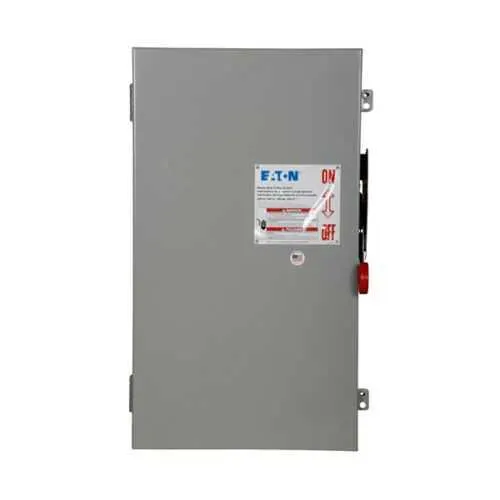

Part Number: DH324NGK
Quick Summary
The Eaton DH324NGK heavy duty fusible safety switch is a reliable electrical isolation device for industrial motor control panels. It provides safe, straightforward power disconnection crucial for startup, maintenance, and emergency shutdowns. In real-world settings, outages and unplanned downtime can ripple across production lines; this switch helps reduce those risks through robust construction and proven performance. This unit carries UL Listed certification, NEC barrier compliance, and a NEMA 1 enclosure rating, delivering safe operation in demanding environments, while its 200 A capacity and fusible-with-neutral design simplify wiring and fusing strategies. Designed for retrofit or new builds, it integrates with standard control gear and supports long-term reliability, reducing maintenance cycles and total cost of ownership for your automation projects.
Product Information
Extended Description
DH324NGK Eaton: Eaton Heavy duty single-throw fused safety switch, 200 A, NEMA 1, Painted steel, Class H, Neutral, Three-pole, Four-wire, 240 V, Max Hp: 15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc), #6-250 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH324NGK
UPC
782113206684
Product Length/Depth
30 in
Product Height
9.5 in
Product Width
18 in
Product Weight
40 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class H
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Wire size
#6 AWG-250 kcmil Cu/Al
Amperage Rating
200A
HP rating - max
15, 25/ 15, 60/ 40 hp (1,3PH @Std/TD/250 Vdc)
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature: 200 A amperage rating with a three-pole, four-wire configuration. Benefit: minimizes bussing complexity and enables efficient fault isolation in high-demand panels, reducing downtime during maintenance and startup. Application: motor control centers and process panels in manufacturing environments. Feature: Class H fuse provision with fusible-with-neutral configuration. Benefit: provides precise protection for connected loads and simplifies fuse selection, lowering spare parts inventory and replacement time. Application: critical drives and motors in conveyor systems and packaging lines. Feature: NEMA 1 enclosure with painted steel construction. Benefit: robust indoor protection against dust and incidental moisture, improving reliability in service bays and switchgear rooms. Application: control cabinets in warehouses and light industrial facilities. Feature: Wire size compatibility from #6 AWG to 250 kcmil Cu/Al. Benefit: flexible, scalable wiring options that accommodate a wide range of motor and feeder sizes, saving redesign costs. Application: retrofit projects and new builds with diverse motor loads. Feature: UL Listed and NEC barrier compliance. Benefit: streamlines regulatory approvals and inspection readiness, reducing project risk. Application: facilities prioritizing safety certifications and code compliance. Feature: 30 in length, 18 in width, 9.5 in height and 40 lb weight. Benefit: compact yet rugged footprint that fits standard panel layouts without requiring major enclosure modifications. Application: space-constrained control rooms and retrofit installations. Insight: In today’s automation environments, the DH324NGK’s combination of protective Class H fusing, neutral capability, and sturdy NEMA 1 enclosure translates into tangible life-cycle savings, fewer maintenance interventions, and improved system availability for high-demand manufacturing lines.
Get a Quick Quote for a Eaton DH324NGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH324NGK?
Enquire Now
FAQs
For installation, mount the DH324NGK in a suitable indoor enclosure with a NEMA 1 rating to protect against dust and incidental moisture. Ensure mounting clearances for service access, accommodate a 30 inch length and 18 inch width footprint, and plan wiring routes for three-pole four-wire configurations. Use the neutral-fused design to simplify wiring and fuse placement, and verify UL Listed compliance with local electrical codes.
The DH324NGK supports a three-pole, four-wire setup with fusible protection and neutral. Wire size ranges from #6 AWG to 250 kcmil Cu/Al, enabling flexible connections for motors and feeders. Use Class H fuses per the application and ensure the fuse configuration matches the load requirements. The neutral conductor is integrated, simplifying multi-wire branch circuits in control panels.
Yes, the DH324NGK is rated for 240V and supports multiple HP ratings: up to 15 HP, 25/15 HP, and 60/40 HP for different voltage and drive conditions (1P/3PH as Std/TD/250 Vdc). This makes it suitable for a range of industrial motors and conveyors. Verify the exact HP rating against your motor nameplate and system voltage for correct protection sizing.
The DH324NGK carries UL Listed certification and NEC barrier compliance, with a NEMA 1 enclosure rating for indoor protection. These certifications facilitate regulatory clearance and safe operation in standard industrial environments. The unit also comes with Eaton’s warranty policy, supporting a one-year coverage from installation or eighteen months from shipment, whichever comes first.
The robust 200 A rated, three-pole design with neutral reduces fuse-related maintenance and simplifies panel wiring, contributing to lower downtime and fewer spare parts. Its durable painted steel enclosure and UL/NEMA-compliant construction support long service life in demanding environments. Overall, the DH324NGK offers a favorable total cost of ownership with predictable maintenance cycles.
