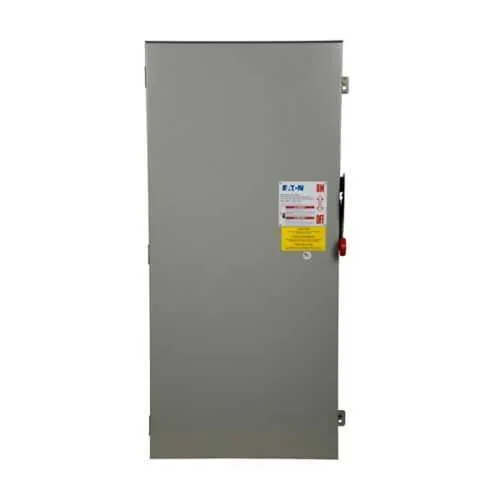

Eaton DH327FDKV Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH327FDKV
Quick Summary
Eaton heavy duty fusible safety switch isolates large industrial machinery and protects critical motor circuits. Operators often struggle with unplanned downtime and difficult maintenance; this switch simplifies disconnection while meeting safety standards. Key certifications include UL Listed, NEC 230.62 (C) compliant barrier, and a rugged NEMA 12/3R enclosure, providing regulatory assurance in demanding environments. With 800 A at 240 V and three-pole operation, it scales to demanding applications while preserving system reliability. Its Class L fuse provision and fusible without neutral design support safer servicing and lower life-cycle costs for OEMs and maintenance teams.
Product Information
Extended Description
DH327FDKV Eaton: Eaton Heavy duty single-throw fused safety switch, Enhanced visible blade, 800 A, NEMA 12/3R, Painted galvanized steel, Class L, Fusible without neutral, Three-pole, Three-wire, 240 V, Max Hp: 100 hp (3PH @Std), (4)#1/0-(4)750 kcmil Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH327FDKV
UPC
786685972909
Product Length/Depth
57.5 in
Product Height
12.38 in
Product Width
27.5 in
Product Weight
163 lb
Compliances
NEC 230.62 (C) Compliant Barrier
Certifications
UL Listed
Catalog Notes
Heavy Duty Safety Switch (HDSS)
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
800A
HP rating - max
100 hp (3PH @Std)
NEMA rating
NEMA 12/3R
Voltage rating
240V
800 A at 240 V with a three-pole, fusible without neutral configuration delivers high-current protection for large motors and heavy loads, reducing the risk of catastrophic faults and downtime. Business impact: improved equipment availability and safer, faster maintenance. Application: large manufacturing lines, metalworking shops, and processing plants where peak motor protection is required. The Class L fuse provision provides precise coordination with protection schemes, minimizing nuisance trips while preserving protective margins. Application: motor starters and feeders in continuous operation environments. The NEMA 12, NEMA 3R enclosure, combined with painted galvanized steel, offers rugged, corrosion-resistant protection suitable for indoor and outdoor installations. Business impact: extended service life and reduced upkeep costs. Application: outdoor electrical rooms and dusty plant floors. Enhanced visible blade improves status recognition at a glance, accelerating fault isolation and routine verification during maintenance windows. Application: control panels and switchgear assemblies that demand quick visual confirmation. The unit is UL Listed and NEC barrier compliant, supporting audits and regulatory compliance across industrial facilities. Application: manufacturing campuses with strict safety programs. Compatibility with standard wiring configurations, including up to four conductors per phase and options for large gauge Cu/Al conductors, enables flexible field wiring. Business impact: faster installation and lower wiring rework. HP rating up to 100 hp (3PH @Std) at 240 V ensures adequate protection for a broad range of motor-driven equipment. Application: process lines, conveyors, and HVAC systems within industrial plants.
Get a Quick Quote for a Eaton DH327FDKV
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH327FDKV?
Enquire Now
FAQs
The DH327FDKV is a three-pole, fusible without neutral design rated at 800 A and 240 V. Plan for a 57.5 in depth, 27.5 in width, and 12.38 in height enclosure on a solid base or mounted in a compliant panel. Ensure wiring uses appropriate conductors and that the NEC barrier is maintained for safe servicing.
UL Listing confirms conformity to recognized safety standards, while NEC 230.62 barrier compliance ensures safe separation of supply and fault paths. The NEMA 12/3R enclosure further protects against dust and moisture, supporting safe operation in demanding industrial environments.
Yes. The enclosure is rated for NEMA 12 and NEMA 3R environments, with painted galvanized steel providing corrosion resistance. For outdoor use, verify ambient ratings and maintain enclosure integrity; ensure gaskets and hardware are in good condition to preserve protection class.
The unit provides 800 A continuous amperage rating at 240 V and up to 100 hp max for three-phase applications. This makes it suitable for high-demand motors and equipment where reliable isolation and protection are required.
The device supports three-phase wiring with fusible protection and a configuration described as fusible without neutral. It accommodates large conductor sizes up to (4) 750 kcmil Cu/Al and typical feeders like #1/0, enabling flexible field wiring for diverse motor circuits.
