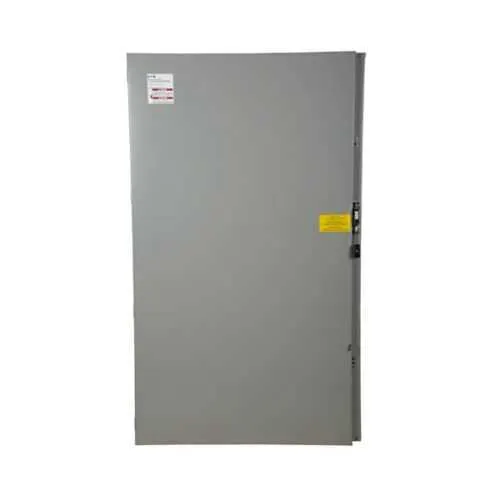

Eaton DH328FDKV Heavy Duty Safety Switch - UL Listed
Part Number: DH328FGK
Quick Summary
Eaton DH328FDKV heavy duty fusible safety switch protects industrial power systems in panels and MCCs. Facilities struggle with uptime, safety, and regulatory compliance when selecting rugged disconnects for harsh environments. UL Listed, NEC 230.62 barrier compliance, and a NEMA 12/3R enclosure provide robust protection for demanding installations, while the painted galvanized steel housing resists corrosion. This model supports standard three-pole, 240 V configurations with fusible without neutral, enabling straightforward wiring and maintenance. By combining durable construction with clear fault isolation, it delivers reliable operation, faster service turnarounds, and long-term cost savings for modern plant networks.
Product Information
Extended Description
DH328FGK Eaton: Eaton Enhanced visible blade single-throw safety switch, 1200 A, NEMA 1, Painted steel, Class L, Fusible without neutral, Three-pole, Three-wire, 240 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH328FGK
UPC
782114312872
Product Length/Depth
72 in
Product Height
21 in
Product Width
48 in
Product Weight
455 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Suitable for service entrance use with a Neutral Kit installed
Enclosure
NEMA 1
Enclosure material
Painted steel
Fuse class provision
Class L
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 1
Voltage rating
240V
Product Category
Heavy Duty, Fusible without neutral
Feature: 1200A amperage rating supports high-load equipment without staged disconnects, reducing downtime and simplifying protection coordination. Business Impact: improves motor control center reliability and reduces fuse replacements by matching system demand. Application: suitable for large pumps, conveyors, and process lines in industrial facilities. The result is measurable uptime and safer isolation during maintenance. Feature: NEMA 12, NEMA 3R enclosure protects against dust, moisture, and incidental exposure. Business Impact: extends enclosure life in challenging environments and minimizes unplanned outages. Application: indoor locations and protected outdoor installations. Feature: Three-pole configuration with Fusible without neutral streamlines wiring and ensures true three-phase isolation. Business Impact: simplifies installation, reduces wiring errors, and supports accurate fault clearing. Application: three-phase power distribution in panels and MCCs. Feature: Class L fuse provision enables selective protection and fast clearing times for motor circuits. Business Impact: enhances equipment longevity, reduces nuisance tripping, and supports coordinated protection. Application: high-inertia motors and dynamic loads. Feature: Painted galvanized steel enclosure plus enhanced visible blade for quick status checks. Business Impact: lowers inspection time and improves safety awareness on-site. Application: routine maintenance and shutdown procedures. Feature: UL Listed with NEC compliance (barrier) and HDSS catalog notes for code-aligned safety. Business Impact: streamlines compliance audits and procurement approvals. Application: regulated industrial environments with safety and reliability requirements.
Get a Quick Quote for a Eaton DH328FGK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH328FGK?
Enquire Now
FAQs
For proper installation, mount the HDSS in a suitable enclosure with adequate clearance for three-pole, 240 V operation. Use the 72 inch depth, 21 inch height, and 48 inch width footprint as a guide for panel integration. Ensure bar-coded labeling aligns with NEC requirements and verify conductor sizes (up to four 750 kcmil aluminum per the catalog) are accommodated by the switch-fuse configuration.
The DH328FDKV is UL Listed and designed to meet NEC 230.62 barrier requirements, providing a compliant isolation point for branch-circuit distribution. Its NEMA 12/3R enclosure offers appropriate environmental protection, while the Class L fuse provision supports safe, selective protection in industrial power systems.
The switch is rated for 1200A at 240V in a three-pole, fusible configuration (without neutral). It uses a NEMA 12/3R enclosure with a 72 in product length/depth, 21 in height, and 48 in width, and weighs approximately 455 lb. These specs fit large industrial panels and motor-control centers requiring rugged protection.
Yes. The catalog supports conductors from four #1/0 to four 750 kcmil aluminum (Al), enabling flexible power distribution for high-current applications. This accommodates significant motor and drive wiring while preserving safe, code-compliant terminations.
The unit combines a painted galvanized steel enclosure, a durable HDSS platform, and an enhanced visible blade for quick status checks. These features simplify field inspections, reduce maintenance time, and improve safety during shutdowns, while UL Listed status and NEC barrier compliance support procurement and audit readiness in regulated industries.
