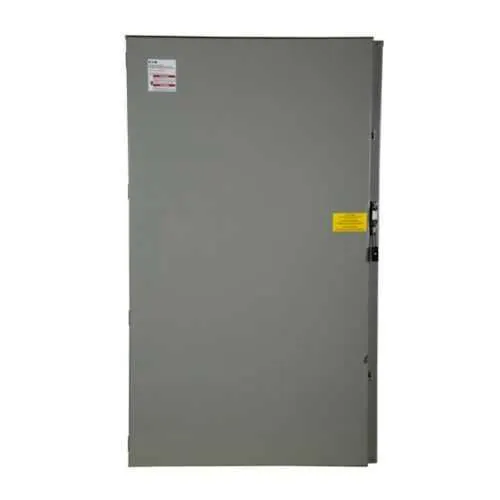

Eaton DH328NRK Heavy Duty Fusible Safety Switch - UL Listed
Part Number: DH328NRK
Quick Summary
Eaton DH328NRK heavy duty fusible safety switch provides reliable control and protection for high-current industrial feeders, enabling safe shutoff and isolation in demanding electrical systems. Facilities engineers frequently wrestle with heat buildup, nuisance tripping, and downtime when protection devices are undersized or poorly coordinated with downstream equipment. This unit carries UL Listing and a NEMA 3R enclosure with painted galvanized steel, Class L fuse provisions, and fusible-with-neutral configuration, ensuring robust weather resistance and clear fault isolation in outdoor or harsh indoor environments. Designed for three-pole, four-wire installations up to 1200 A at 240 V, it simplifies field wiring, improves maintenance workflows, and supports scalable power distribution with durable performance over the full lifecycle.
Product Information
Extended Description
DH328NRK Eaton: Eaton Enhanced visible blade single-throw safety switch, 1200 A, NEMA 3R, Painted galvanized steel, Class L, Fusible with neutral, Three-pole, Four-wire, 240 V, (4)#1/0-(4)750 kcmil Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH328NRK
UPC
782114313008
Product Length/Depth
72 in
Product Height
21 in
Product Width
48 in
Product Weight
465 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Enclosure
NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class L
Fuse configuration
Fusible with neutral
Number Of Poles
Three-pole
Number of wires
4
Type
Heavy duty fusible safety switch
Amperage Rating
1200A
NEMA rating
NEMA 3R
Voltage rating
240V
Product Category
Heavy Duty, Fusible with neutral
Feature: 1200 A amperage rating with three-pole, four-wire configuration. Business Impact: Handles high-current loads while enabling selective coordination and reduced voltage drop in feeders. Application: Large motors and heavy loads in manufacturing settings. Feature: NEMA 3R enclosure with painted galvanized steel. Business Impact: Weather-resistant protection for outdoor or harsh indoor environments, reducing corrosion risk and maintenance. Application: Outdoor substations and equipment rooms. Feature: Class L fuse provision and fusible-with-neutral configuration. Business Impact: Safe fault isolation and neutral management simplifying protection scheme compliance. Application: Control panels and motor control centers. Feature: Large footprint and robust construction (72 in L, 48 in W, 21 in H; 465 lb). Business Impact: Durable, long lifecycle with easier retrofit and UPS-free reliability. Application: Retrofit projects and new builds requiring rugged protection. Feature: UL Listed certification and industry-leading warranty. Business Impact: Confidence in compliance, easier procurement, and predictable maintenance budgeting. Application: Plant-wide electrical protection programs and safety audits. Feature: Compatibility with high-conductor connections and straightforward wiring. Business Impact: Faster installation, reduced commissioning risk, and lower total cost of ownership. Application: Industrial facilities seeking rapid startup and reliable operation.
Get a Quick Quote for a Eaton DH328NRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH328NRK?
Enquire Now
FAQs
Prepare the panel space for a three-pole, four-wire switch, verify 240 V supply and correct conductor sizing, and align the fusible-with-neutral configuration with the downstream circuit. Use proper lockout/tagout procedures, mount in the NEMA 3R enclosure, and route conductors to rated terminals to ensure safe isolation during maintenance.
The DH328NRK delivers 1200 A amperage rating at 240 V, in a three-pole, four-wire configuration. It uses Class L fuse provisions and a fusible-with-neutral setup, with UL Listing and a NEMA 3R enclosure. It is designed for rugged service in industrial environments and supports reliable fault isolation and safe operation.
Ideal for outdoor substations, machine halls, and process lines, particularly where high-current protection and durable enclosures are required. Its NEMA 3R, galvanized steel enclosure protects against weather and corrosion, while the three-pole, four-wire design accommodates common industrial power distribution arrangements.
The DH328NRK is UL Listed and features a NEMA 3R enclosure, with Class L fuse provisions and a neutral-capable fusible configuration. These certifications ensure compliance with safety and reliability standards, simplify procurement for regulated projects, and support safe maintenance practices and lockout/tagout procedures.
Using the DH328NRK can reduce downtime through reliable protection and safer isolation, lowering maintenance interruptions for high-current feeders. The UL listing, rugged enclosure, and long lifecycle contribute to predictable upkeep costs, while the one-year warranty (or 18 months from shipment) provides a clear initial risk management window.
