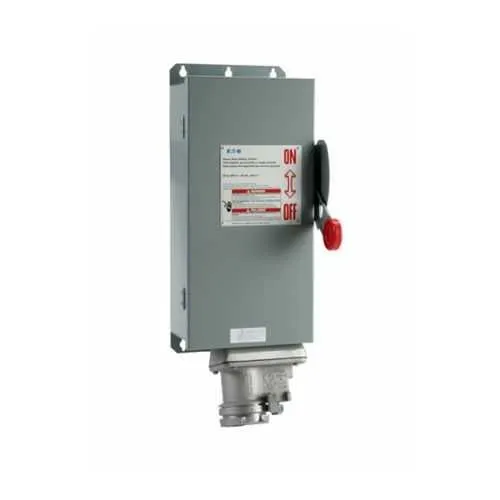

Eaton DH361FD5WRK Heavy Duty Safety Switch - UL Listed
Part Number: DH361FD5WRK
Quick Summary
Eaton heavy duty fusible safety switch DH361FD5WRK protects electrical circuits in industrial power distribution and motor control panels. This robust device addresses downtime and noncompliance by delivering a trusted, UL Listed solution built for harsh environments. The enclosure highest protection comes from NEMA 12 and NEMA 3R ratings, paired with a Class H fuse, and a fusible configuration without neutral to simplify wiring. With a 30A rating at 600V and three-pole operation, it delivers reliable isolation and protection while easing installation and maintenance. The product also supports Cu/Al #14-2 wiring and complements heavy duty receptacle safety switch deployments across industrial facilities, improving safety, uptime, and asset longevity.
Product Information
Extended Description
DH361FD5WRK Eaton: Eaton Heavy duty receptacle safety switch, Appleton POWERTITE® receptacle, 30 A, NEMA 12/3R, Painted galvanized steel, Class H, Three-pole, Three-wire, 600 V, Max Hp: 7.5, 10/ 15, 20 hp (1/3PH @480, 600 V), #14-#2 Cu/Al
Product Name
Eaton heavy duty fusible safety switch
Catalog Number
DH361FD5WRK
UPC
782114121832
Product Length/Depth
30 in
Product Height
10 in
Product Width
13.75 in
Product Weight
27 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed
Catalog Notes
Power plugs not supplied with the receptacle
Enclosure
NEMA 12, NEMA 3R
Enclosure material
Painted galvanized steel
Fuse class provision
Class H
Fuse configuration
Fusible without neutral
Number Of Poles
Three-pole
Number of wires
3
Type
Heavy duty receptacle safety switch
Wire size
#14-2 AWG Cu/Al
Amperage Rating
30A
HP rating - max
7.5, 10/ 15, 20 hp (1/3PH @480, 600 V)
NEMA rating
NEMA 12/3R
Voltage rating
600 V
Product Category
Heavy Duty, Harsh Environment - EnviroLine
Feature: 30A amperage rating and 600V voltage capacity → Business Impact: Enables safe handling of motor circuits and distribution feeders with a single protective device, reducing overcurrent risk and enhancing system reliability. Application: Suitable for 480/600V motor control panels and equipment feeders in manufacturing lines. Feature: Fusible Class H protection without neutral → Business Impact: Provides selective protection and fast disconnection for motor circuits, lowering fault energy and minimizing collateral damage. Application: Ideal for three-wire, three-pole power feeds in harsh environments. Feature: NEMA 12 and NEMA 3R enclosure with painted galvanized steel → Business Impact: Delivers rugged enclosure protection against dust, moisture, and corrosion, extending lifecycle in harsh plant areas. Application: Outdoor and indoor installations with demanding environmental exposure. Feature: Copper/Aluminum wire capability #14-2 and three-wire configuration → Business Impact: Flexible wiring options simplify field installation and maintenance, reducing labor time and wiring errors. Application: Standardized wiring in control panels and interconnects. Feature: UL Listed and Appleton POWERTITE receptacle reference → Business Impact: Ensures regulatory compliance and compatibility with trusted components, minimizing compliance risk. Application: Critical for facilities requiring certified protection devices in motor control circuits.
Get a Quick Quote for a Eaton DH361FD5WRK
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton DH361FD5WRK?
Enquire Now
FAQs
The DH361FD5WRK uses a NEMA 12 and NEMA 3R rated enclosure with painted galvanized steel, designed for dust and moisture protection in industrial environments. This makes it well-suited for indoor and outdoor control panels where robust enclosure integrity is essential.
It supports #14-2 AWG Cu/Al wires in a three-wire, three-pole arrangement. The device is designed for fusible operation without neutral, simplifying wiring and reducing potential neutral-related fault paths in motor control circuits.
The product is UL Listed, confirming electrical safety compliance. It also features an enclosure suitable for NEMA 12/3R service, aligning with industry expectations for rugged protection in industrial environments.
With a 30A, 600V rating and Class H fuse protection, it provides reliable overcurrent protection and safe isolation for three-pole circuits. This reduces unplanned downtime, protects upstream equipment, and supports compliant, safer startup sequences in automated lines.
Yes. It supports up to 600V with max HP ratings of 7.5, 10/15, and 20 hp (1/3PH at 480V or 600V), making it suitable for a range of motor control loads in manufacturing and processing facilities. Its heavy-duty design ensures dependable protection for these critical installations.
